16" Tsudakoma Horizontal CNC Rotary Table, Model RY-401

16" Tsudakoma Horizontal CNC Rotary Table, Model RY-401

Sell Your Tsudakoma RY-401
513-771-2111
sales@gaec.com
$9,500.00 USD
Sell Your Tsudakoma RY-401

Overview

Type:
Tables, Rotary
Manufacturer:
Tsudakoma
Model:
RY-401
Year:
2005
Stock #:
K15398
Serial #:
972073

Description

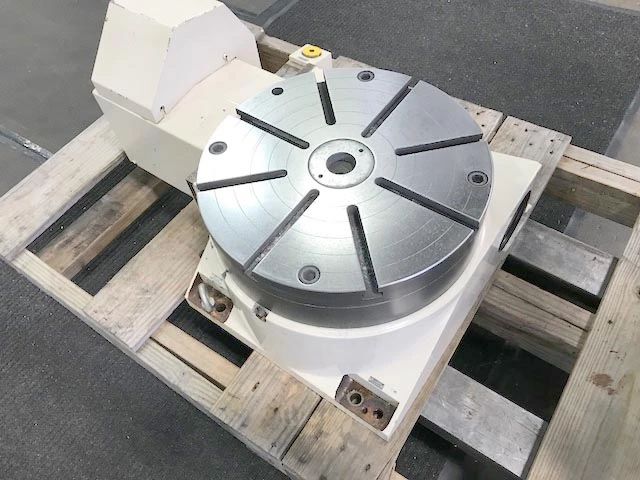

16" TSUDAKOMA HORIZONTAL CNC ROTARY TABLE, Model RY-401, 16" T-Slotted Surface Plate, Fanuc Servo Motor, Hydraulic Table Brake, New 2005.

TABLE DESCRIPTION:
This Horizontal CNC Rotary Table was Designed for Full Contour Milling or Indexing of Parts. The Table is Driven by a Fanuc Electric Servo Motor with Resolver Feed Back which could be Driven by Most Fanuc CNC Controls. This Table is also a Hydraulic Table Clamp. For Work Holding It has a 15.79" Round x 1.5" Thick T-Slotted Sub-Plate Work Mounting Surface. Table was taken off a Machining Center with a Fanuc 18i CNC Control.

Table Diameter15.79"401.07 mm
Platter Diameter15.79"401.07 mm
Max Load Capacity, Horizontal1,430 lb648.6 kg
Distance Base to Center of Table (Vertical Mount)11.8"299.72 mm
Distance Base to Top of Table (Horizontal Mount)10.23"259.84 mm
Table Positions360,000360,000
Max Table Rotation Speed66.7 RPM66.7 RPM
Rotational Torque, Vertical1400 ft/lbs1400 ft/lbs
Drive MechanismHydraulicHydraulic
Dimensions31" x 18" x 12"31" x 18" x 12"
Weight700 lbs700 lbs

CONDITION: This Rotary Table Appears to be in Excellent Condition !

F.O.B. Cincinnati, OH
