ROTOMORS MC-ID | Chucks
$17,500.00 USD
Or as low as $362.42 USD/month over 60 months

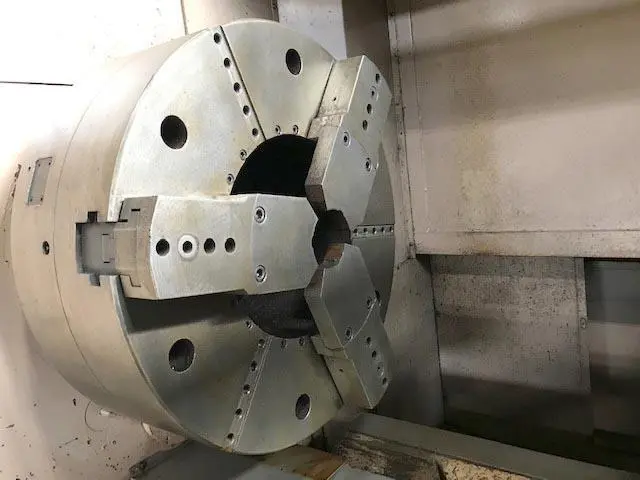

31" ROTOMORS 3-JAW SELF-CENTERING HYDRAULIC CHUCK with 15" Bore, Model MC-ID, 15.15" Hole, 20mm Jaw Stroke, 55,000 LBS Clamp Force.
DESCRIPTION:
This type of self-centering chuck with hydraulic power is suitable for heavy production lathes. The feeding oil comes through holes drilled in the back mounting surface of the chuck. This allows you to fully use your machine's spindle bore.
See attached drawing.
Type: Self-Centering
# Jaws: 3
Type of Actuation: Hydraulic
Body Diameter: 780mm (30.70")
Through Hole: yes
Through Hole Diameter: 385mm (15.15")
Jaw Stroke: 20mm (.78" )
Max Speed: 800 RPM
Clamp Force at 30 Bar PSI: 55,000 LBS
Approximate Weight: 1,700 LBS
CONDITION: This Chuck Appears to be in Very Good Condition ! F.O.B. Cincinnati, OH
