KOLLMORGEN B-808-C-21-015

KOLLMORGEN B-808-C-21-015 | Servo Motors

Sell Your KOLLMORGEN B-808-C-21-015
513-771-2111
sales@gaec.com
$950.00 USD
Sell Your KOLLMORGEN B-808-C-21-015

Overview

Type:
Servo Motors
Manufacturer:
KOLLMORGEN
Model:
B-808-C-21-015
Stock #:
K15798
Status:
For Sale
Serial #:
94H808C-3

Description

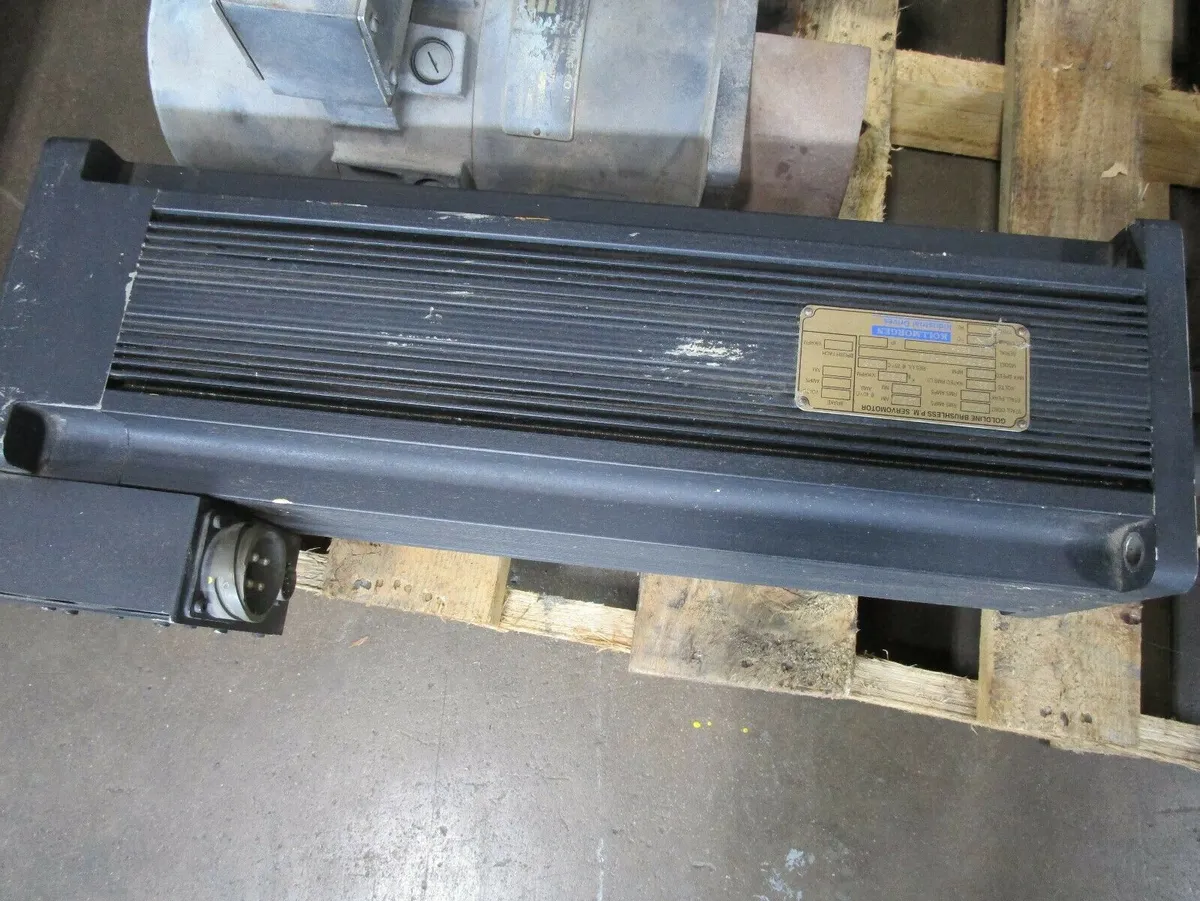

KOLLMORGEN SERVO MOTOR B-808-C-21-015

Brushless, Low Inertia

Current TypeACAC
Torque (Stall)110.6 lbf492.1 N
Amp (Stall)47 A47 A
# Poles66
Max Speed1,000 RPM1,000 RPM
Power Rating15.115.1
Power20.2 hp15.1 kW
Enclosure RatingIP 65IP 65
Dimensions30" x 14" x 10"30" x 14" x 10"
Weight140 lbs140 lbs

Current Type: AC
Torque (Stall): 149.0 Nm
Amp (Stall): 47.0 A
Voltage: 230 V
# Poles: 6
Max Speed: 1,000 RPM
Power Rating: 15.1 kW
Frequency: 50 Hz
Enclosure Rating: IP 65
Approximate Dimensions: 30" x 14"
Approximate Height: 10"
Approximate Weight: 140 LBS

CONDITION: This Motor Appears to be in Very Good Condition. F.O.B. Cincinnati, OH
