SIEMENS 1FT5102-0AC012-Z

SIEMENS 1FT5102-0AC012-Z | Servo Motors

Sell Your SIEMENS 1FT5102-0AC012-Z
513-771-2111
sales@gaec.com
$950.00 USD
Sell Your SIEMENS 1FT5102-0AC012-Z

Overview

Type:
Servo Motors
Manufacturer:
SIEMENS
Model:
1FT5102-0AC012-Z
Stock #:
K15797
Status:
For Sale

Description

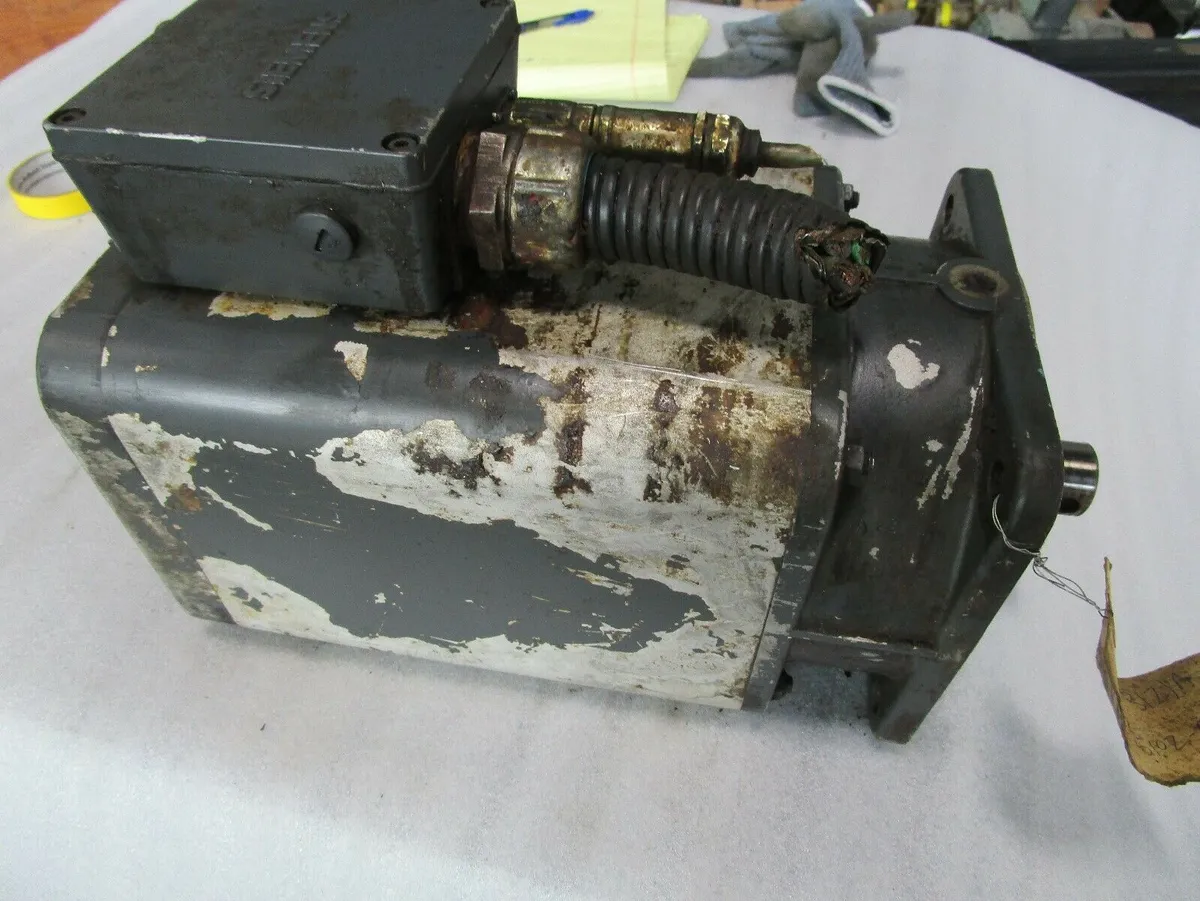

SEIMENS SERVO MOTOR 1FT5102-0AC012-Z

Permanent Magnet Motor
1-1/4″ Shaft Diameter
3-Phase Tacho
1 FU1050-6MC
20.0  V/KRPM

NOTE: Use Only with 6SC610 Drives

Current TypeACAC
Torque (Stall)24.4 lbf108.3 N
Amp (Stall)52 A52 A
Voltage144 V144 V
Max Speed2,000 RPM2,000 RPM
Motor Phase33
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP 67IP 67
Motor Mounting CodeIM B5IM B5
Dimensions43.18 x 27.94 x 20.32 cm43.18 x 27.94 x 20.32 cm
Weight32.16 kg32.16 kg

Torque (Stall): 33 Nm
Amp (Stall): 52.0 A
Voltage: 144 V
Max Speed: 2,000 RPM
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 67
Motor Mounting Code: IM B5
Discontinued by Manufacturer?: yes
Approximate Dimensions: 17" x 11"
Approximate Height: 8"
Approximate Weight: 71 LBS

F.O.B. Cincinnati, OH
