Siemens 1FT6082-6AF71-4EG1-Z

Siemens 1FT6082-6AF71-4EG1-Z | Servo Motors

Sell Your Siemens 1FT6082-6AF71-4EG1-Z
513-771-2111
sales@gaec.com
$775.00 USD
Sell Your Siemens 1FT6082-6AF71-4EG1-Z

Overview

Type:
Servo Motors
Manufacturer:
Siemens
Model:
1FT6082-6AF71-4EG1-Z
Stock #:
Q10505

Description

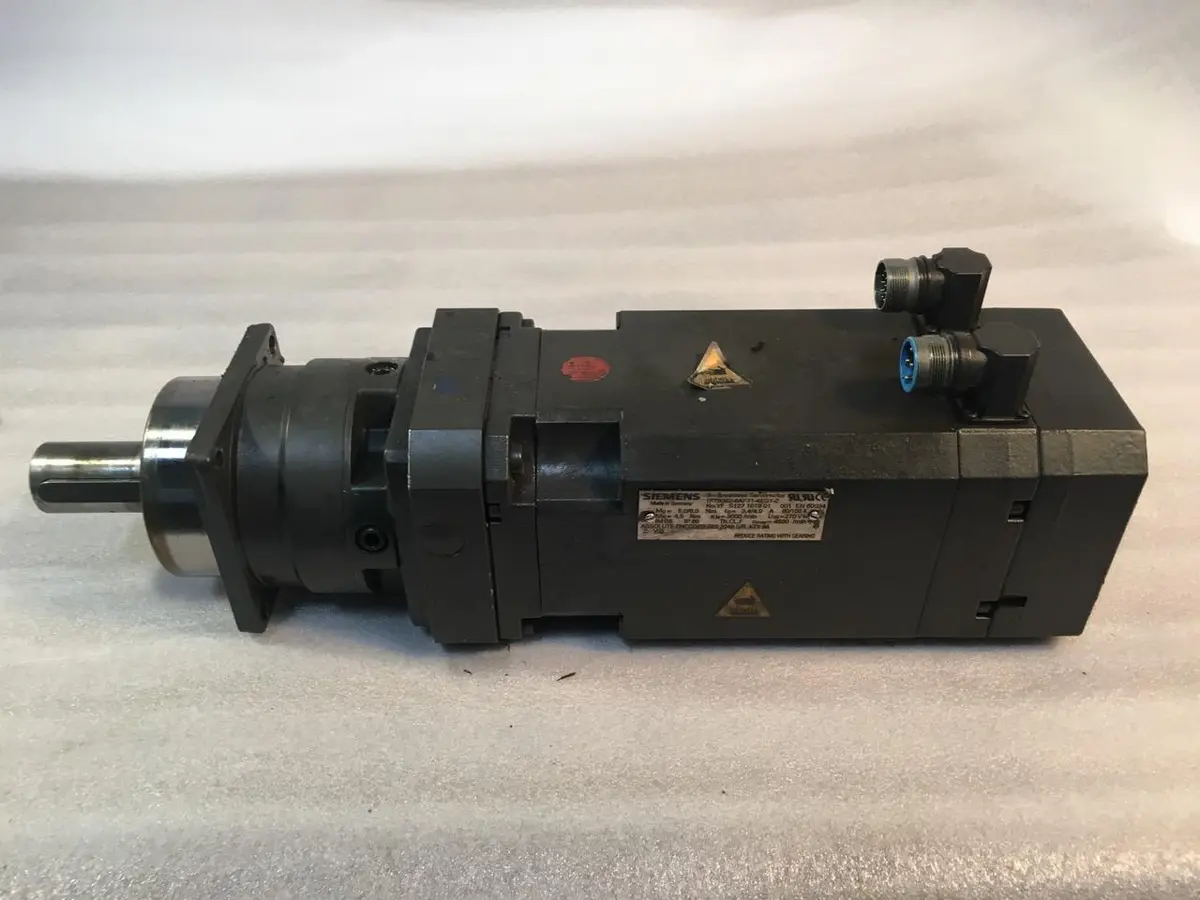

SIEMENS BRUSHLESS SERVO MOTOR, 1FT6082-6AF71-4EG1-Z, 3-Phase, Permanent-Magnet Synchronous.

Current TypeACAC
Torque (Stall)56 N12.6 lbf
Amp (Stall)3.4-4.0 A3.4 A
Voltage270 V270 V
Max Speed4,500 RPM4,500 RPM
Motor Phase3-Phase3-Phase
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP65IP65
EncoderAbsolute F02 2048 S/RAbsolute F02 2048 S/R
Motor Mounting CodeIM B5IM B5
Dimensions20" x 7" x 9"20" x 7" x 9"
Weight37 LBS37 LBS

Production Number: S127 1019 01
Protection: IP 65
Vibration Severity: N
Motor Protection: KTY 84
Encoder System: Absolute F02 2048 S/R
Cooling Method: Natural
Rated/Full-Load Torque: 4.5 Nm
Max Speed: 4,500 RPM
Rated Speed: 3,000 RPM

CONDITION: This Servo Motor Appears to be in Very Good Condition.

F.O.B. Cincinnati, OH
