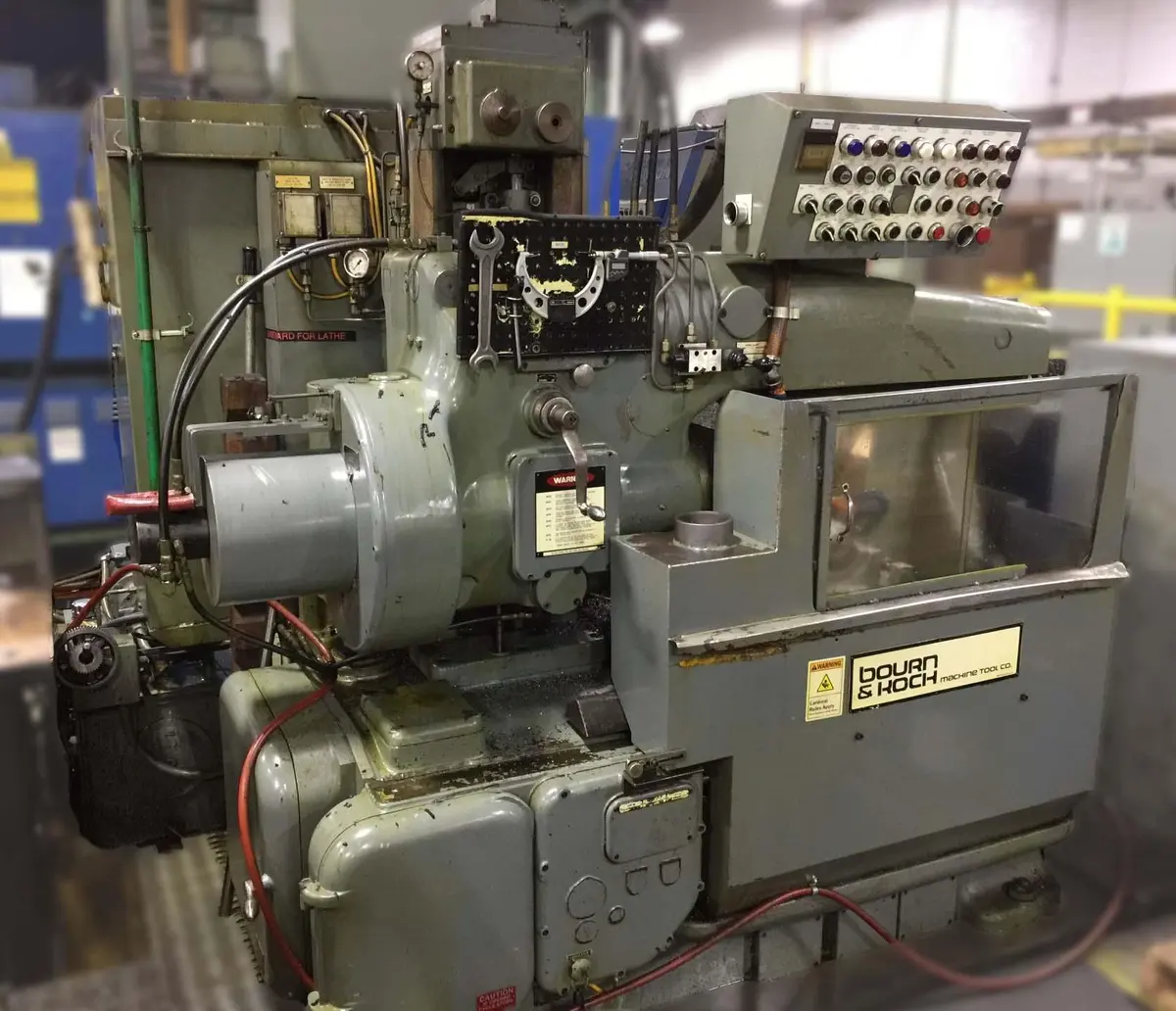

14-15 BOURN & KOCH/BARBER COLMAN HEAVY DUTY HORIZONTAL GEAR HOBBER, 14" Max Work Diameter, 15" Max Hob Slide Travel, 6.25" Max Hob Diameter, Auto Hob Shift, Auto 2-Cut Cycle, Dwell Timer for Blind Cuts, Hydraulic Workhead, Hydraulic & Coolant System, Rebuilt 1998.
Standard Hob Head with Anti-Friction Bearing Spindle, Anti-Friction Bearing Work Spindle, Double-Thread Index Worm (Hardened and Ground), Bronze Worm Gear, Built-In Differential Mechanism, Power Forced Lubrication to All Working Elements, Automatic Hob Shift-Clamped During Working Cycle, Automatic 2-Cut Cycle, Dwell Timer for Blind Cuts, (1) Hob Arbor, Hydraulic Chucking Work Head with Work Spindle Adaptor, Hydraulic Power Unit, Coolant Pan and Piping. Missing Tailstock.
Max Rated Work Diameter: 14"
Max Pitch in Steel: 3.5 DP
Max Travel of Hob Slide: 15"
Max Distance Work Spindle Face to Tail Center: 27.25"
Max Distance Work Spindle Centerline to Hob Spindle: 9.75"
Min Distance Work Spindle Centerline to Hob Spindle: 1.75"
Work Spindle Bore (Standard): 4.18"
Index Worm Gear Pitch Diameter: 17.9"
Max Number of Teeth Cut: 300
Min Number of Teeth Cut: 4
Max Hob Diameter (Standard): 6.25"
Max Swivel Angle (Helix) Setting R/L: 50°
Max Hob Shift Travel: 4"
Main Drive Horsepower: 10 HP
Hydraulic Pump Horsepower: 3 HP
Lubricating Pump Horsepower: 1/4 HP
Coolant Pump Horsepower: 1 HP
Approximate Machine Dimensions: 114" x 81"
Approximate Machine Height: 90"
Approximate Machine Weight: 13,000 LBS
CONDITION: Machine Appears to be in Excellent Condition! F.O.B. Cincinnati, OH
