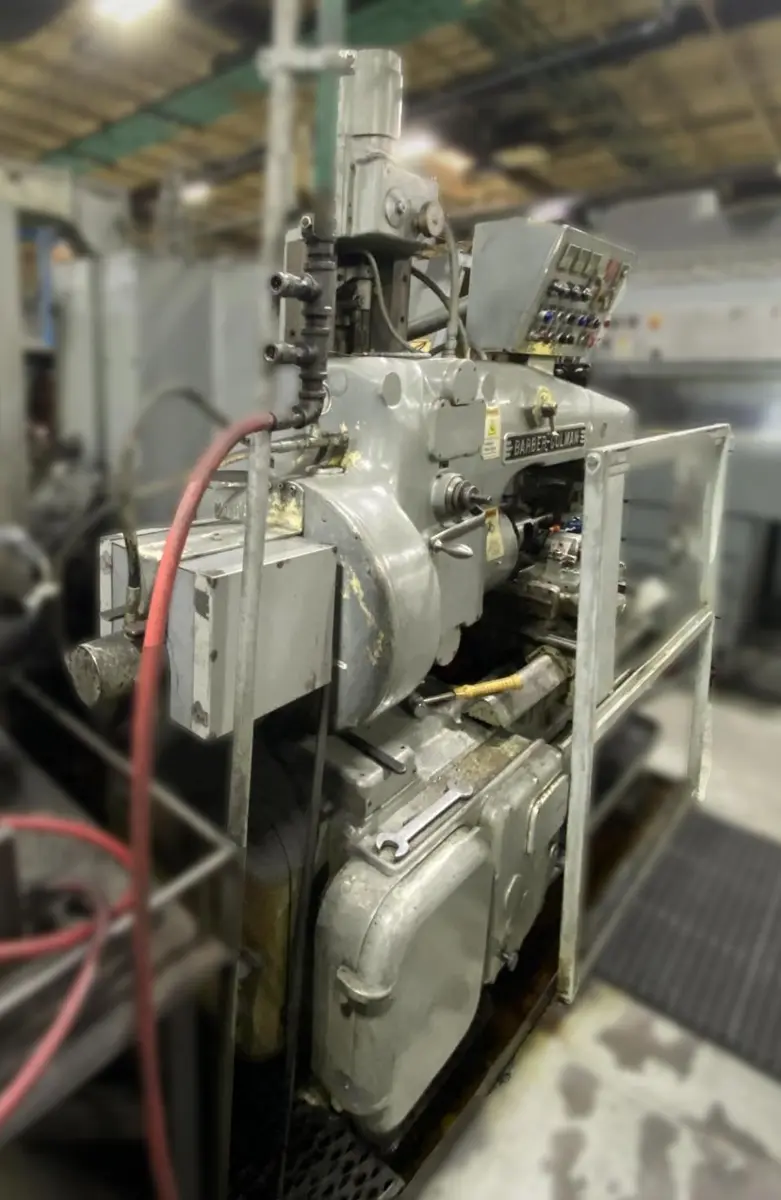

14-15 Barber Colman Horizontal Gear Hobber

14-15 Barber Colman Horizontal Gear Hobber

Sell Your Barber Colman 14-15
513-771-2111
sales@gaec.com
Request Financing
Sell Your Barber Colman 14-15

Overview

Type:
Gear Hobbers
Manufacturer:
Barber Colman
Model:
14-15
Year:
1963
Stock #:
Q10549
Serial #:
942

Description

14-15 BARBER COLMAN HORIZONTAL GEAR HOBBER, 14" Max Work Diameter, 15" Max Hob Slide Travel, 6.25" Max Hob Diameter, Auto Hob Shift, Auto 2-Cut Cycle, Hydraulic Workhead, Hydraulic & Coolant System, New 1963.

Standard Hob Head with Anti-Friction Bearing Spindle, Anti-Friction Bearing Work Spindle, Double-Thread Index Worm (Hardened and Ground), Bronze Worm Gear, Built-In Differential Mechanism, Automatic Hob Shift-Clamped During Working Cycle, Automatic 2-Cut Cycle, (1) Hob Arbor, Hydraulic Chucking Workhead with Work Spindle Adaptor, Hydraulic Operated Tailstock with Center, Hydraulic Power Unit, Coolant Tank with Pump and Piping.

Max Diametral Pitch in Steel3.5 dp3.5 dp
Max Rated Work Diameter14"355.6 mm
Horz/VertHorzHorz
Max Travel of Hob Slide15"381 mm
Max Distance Work Spindle Face to Tail Center27.25"692.15 mm
Max Distance Work Spindle Centerline to Hob Spindle9.75"247.65 mm
Min Distance Work Spindle Centerline to Hob Spindle1.75"44.45 mm
Work Spindle Bore (Standard)4.18"106.17 mm
Index Worm Gear Pitch Diameter17.9"454.66 mm
Max Number of Teeth Cut300300
Min Number of Teeth Cut44
Max Hob Diameter (Standard)6.25"158.75 mm
Max Swivel Angle (Helix) Setting R/L50°50°
Max Hob Shift Travel4"101.6 mm
Main Drive Power10 hp7.5 kW
Hydraulic Pump Power3 hp2.2 kW
Lubricating Pump Power0.2 hp0.2 kW
Coolant Pump Power1 hp0.7 kW
Dimensions114" x 81" x 90"114" x 81" x 90"
Weight13,000 LBS13,000 LBS

CONDITION: Machine Appears to be in Excellent Condition!

F.O.B. Cincinnati, OH
