1974 General Electric 5CD174MA017A001 | Spindle Motors
$1,999.00 USD

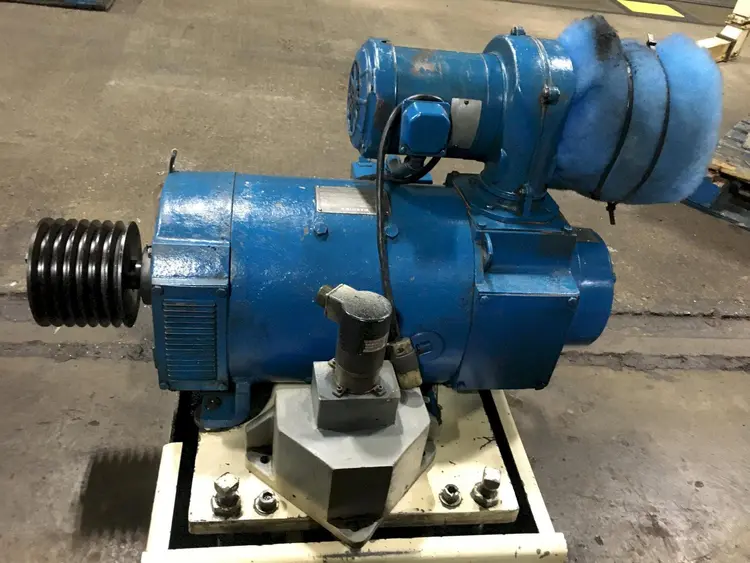

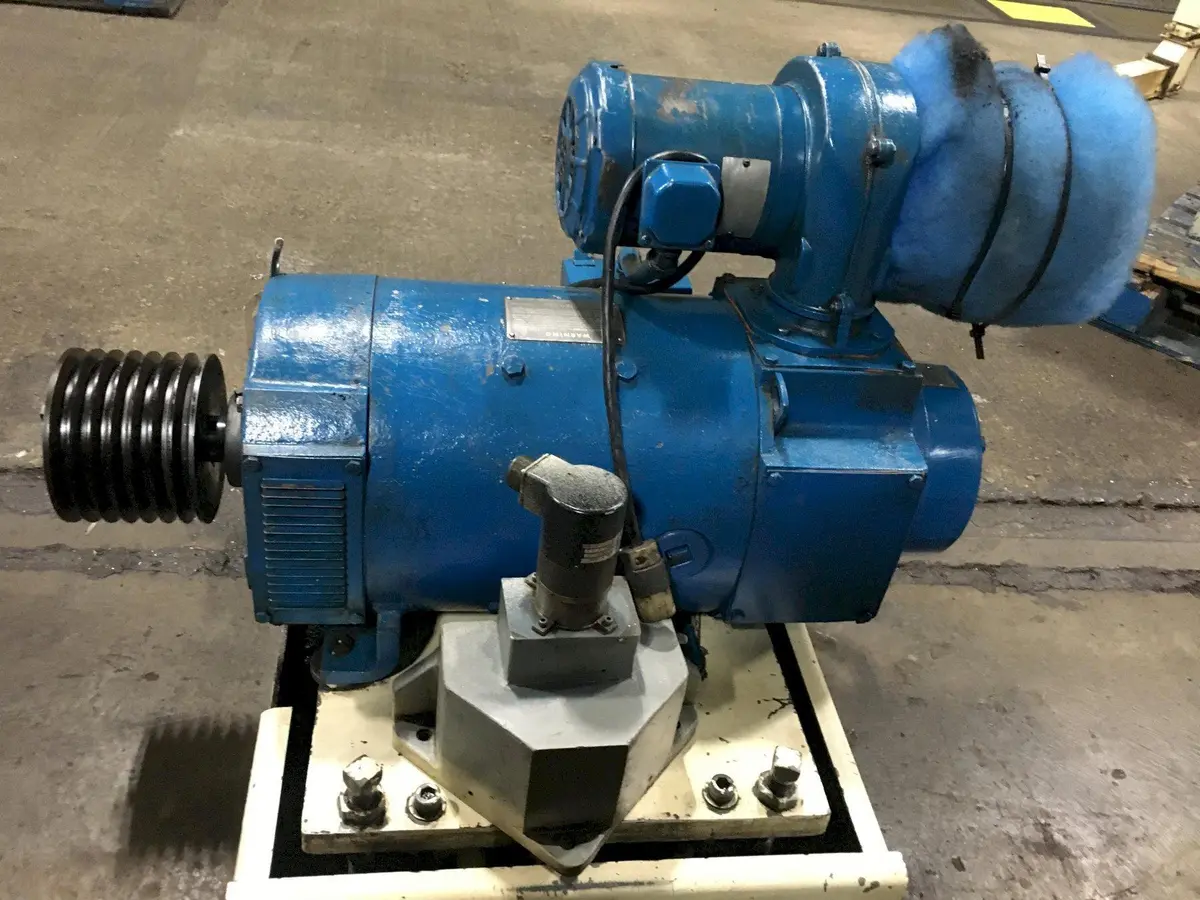

40 HP GE SPINDLE KINAMATIC MOTOR & ENCODER 1750/2800 RPM, 240V, ARM AMPS 150.
Current Type: DC
Motor Horsepower: 40 HP
Base Speed: 1750/2800 RPM
Armature Voltage: 240 V
Armature Amps: 150 A
Wound: Shunt
Field Amps: 3.92 / 2.2 A
Field Ohms (25C): 22 Ohms
Field Voltage: 120 V
Insulation Class: F (Max 155° C)
Duty: 15 Min
Ambient: 40° C
NEMA Power Supply Code: E
Frame: CD288AT
Enclosure Type: DPFG-BV (Dripproof fully guarded, blower ventilated)
Maintenance Instructions: GEH3967
Located in Cincinnati, OH
