BUCK 1310 | Chucks
$750.00 USD

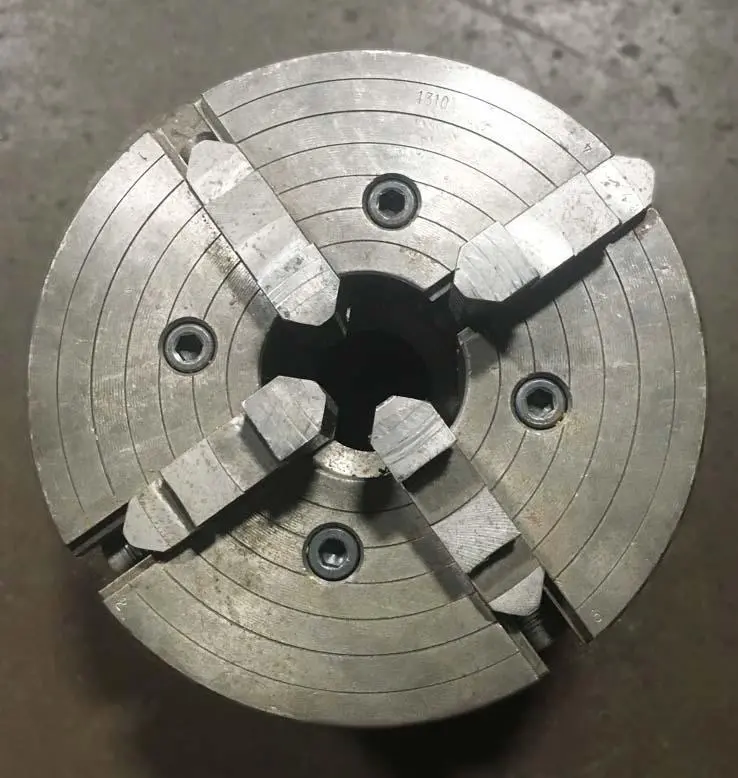

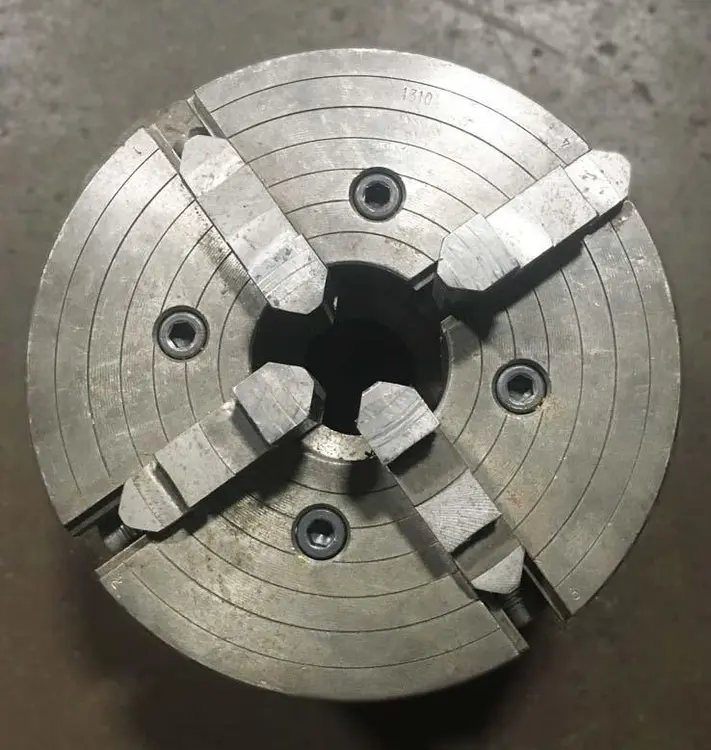

10" BUCK 4-JAW INDEPENDENT CHUCK, Model 1310, 3.015" Thru-Hole Diameter, D-Style Spindle Mount, 2000 RPM Max Speed, 0.39" - 9.84" Clamping Range.
DESCRIPTION:
Buck Independent Chucks Are Built from Forged Steel for Long, Accurate Service, Made of Vibration Dampening High-Tensile Semi-Steel, Feature T-Slots and Recessed Back for Minimum Overhang, D-Style Spindle Adapter with Cam-Locks. Hardened, 1-Piece, Reversible, Jaws Are Heat-Treated Alloy Steel.
Type: Independent
# Jaws: 4
Body Diameter: 10"
Body Height: 3.031"
Through Hole: yes
Through Hole Diameter: 3.015"
Recess Diameter: 6.312"
Recess Depth: 0.27"
Spindle Mount Type: D-Style
Distance Centerline to Bolt Hole: 2.625"
Bolt Hole Diameter: 0.531"
Jaw Width: 3.5"
Jaw Height: 2.38"
Jaw Thickness: 3.96"
Max Speed: 2,000 RPM
Clamping Range: 0.39" - 9.84"
Approximate Weight: 57 LBS
CONDITION: This Chuck Appears to be in Excellent Condition. F.O.B. Cincinnati, OH
