SMW AUTOBLOK 210BB | Chucks
$750.00 USD

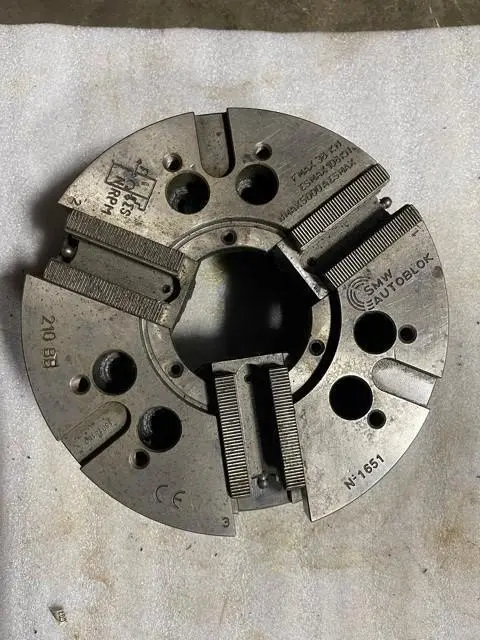

8-1/4" SMW AUTOBLOK 3-JAW HYDRAULIC CHUCK, Model 210BB, 66mm / 2.6" Through Hole, 4mm / 0.16" Jaw Stroke, A6 Spindle Nose, 5000 RPM Max Speed, 108 kN Clamp Force.
ID: 2 3/4"
See attached file
# Jaws: 3
Body Diameter: 8.25"
Through Hole: yes
Through Hole Diameter: 66mm ( 2.6" )
Spindle Mount Type: A6
Jaw Stroke: 4mm ( .16" )
Max Speed: 5,000 RPM
Max Pull Force: 38 kN
Max Grip Force: 108 kN
Approximate Dimensions: 8.25" x 8.25"
Approximate Height: 3.5"
Approximate Weight: 19.5 KG / 43 LBS
Located in Cincinnati, OH
