SIEMENS 1FT5072-0AC01-2-Z

SIEMENS 1FT5072-0AC01-2-Z | Servo Motors

Sell Your SIEMENS 1FT5072-0AC01-2-Z
513-771-2111
sales@gaec.com
$850.00 USD
Sell Your SIEMENS 1FT5072-0AC01-2-Z

Overview

Type:
Servo Motors
Manufacturer:
SIEMENS
Model:
1FT5072-0AC01-2-Z
Stock #:
Q10618
Status:
For Sale

Description

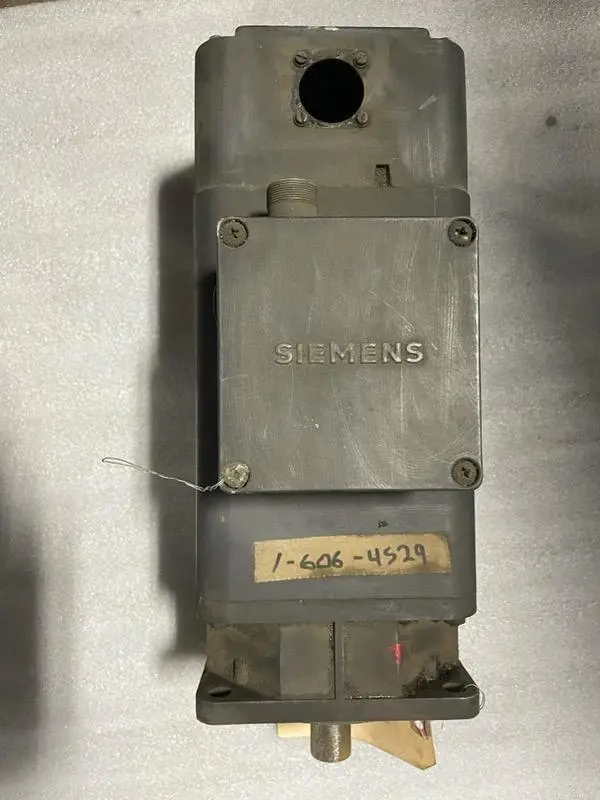

SIEMENS AC SERVO MOTOR 1FT5072-0AC01-2-Z Milacron # 1-606-4529

Permanent Magnet Motor, Synchronous
AC Feed Drive Motor
3-Phase Tacho
1 FU1050-6MC
20.0 V/kRPM
VDE 0530
ΔT = 60° C
PTC Thermistor 155° C
Natural Air Cooled

NOTE: Use ONLY with 6SC610 Drives.

Current TypeACAC
Torque (Stall)7.4 lbf32.8 N
Amp (Stall)14.5 A14.5 A
Voltage150 V150 V
Max Speed2,000 RPM2,000 RPM
EfficiencyIEC 71IEC 71
Motor Phase33
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP 64IP 64
EncoderROD 320.002ROD 320.002
Motor Mounting CodeIM B5IM B5
StandardsVDE 0530VDE 0530
Dimensions16" x 6" x 9"16" x 6" x 9"
Weight33 LBS33 LBS

Current Type: AC
Torque (Stall): 10.0 Nm
Amp (Stall): 14.5 A
Voltage: 150 V Y
Max Speed: 2,000 RPM
Efficiency: IEC 71
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 64
Encoder: ROD 320.002
Motor Mounting Code: IM B5
Discontinued by Manufacturer?: yes
Approximate Dimensions: 16" x 6"
Approximate Height: 9"
Approximate Weight: 33 LBS

Located in Cincinnati, OH
