6" Baldor Double Ended Pedestal-Type Carbide Grinder, Model 500

6" Baldor Double Ended Pedestal-Type Carbide Grinder, Model 500

Sell Your Baldor 500
513-771-2111
sales@gaec.com
Sell Your Baldor 500

Overview

Type:
Grinders, Pedestal Type (Double End)
Manufacturer:
Baldor
Model:
500
Stock #:
Q10711
Serial #:
F0204157129

Description

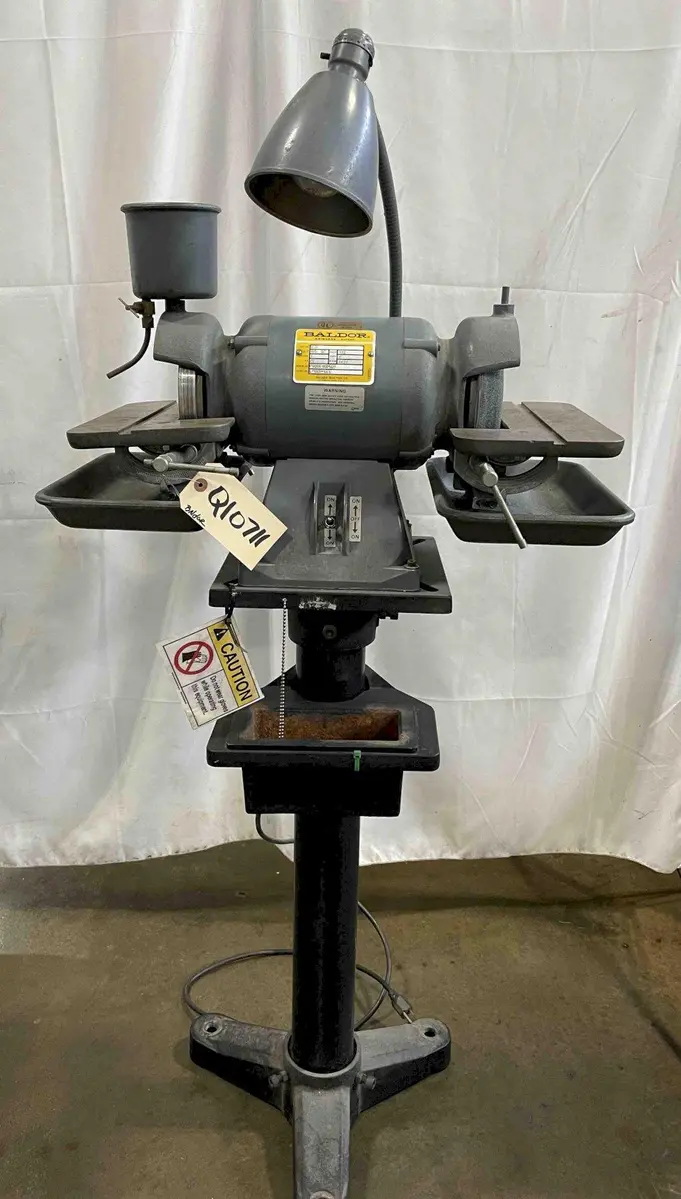

6" BALDOR DOUBLE ENDED PEDESTAL-TYPE CARBIDE GRINDER, Model 500, 6" Diamond Wheel One Side, Tilt Work Tables with Clamps Both Sides, Quench Tank, Work Light, 1/2 HP, 3600 RPM, 115 Volts, 1 Phase, 60 Hz.

Cast Iron Pedestal Base with Quench Tank, 6" Diamond Wheel One Side, Tilt Work Tables with Clamps, Work Light

Grinding Wheel Diameter6"152.4 mm
Grinding Wheel Width1" & 1.5"38.1 mm
Grinding Wheel Bore1.25"31.75 mm
Grinding Spindle Speed3,600 RPM3,600 RPM
Motor Power0.5 hp0.4 kW
Motor Voltage115 V115 V
Motor Full Load Amps5 A5 A
Motor Speed3,600 RPM3,600 RPM
Motor Frequency60 Hz60 Hz
Motor Phase11
Motor Insulation ClassB (Max 130° C / 266° F)B (Max 130° C / 266° F)
Motor NEMA Design LetterB (General Purpose)B (General Purpose)
Motor Ambient and Time Rating40° C AMB-CONT40° C AMB-CONT
Motor Enclosure TypeTotally Enclosed Non-Ventilated (TENV)Totally Enclosed Non-Ventilated (TENV)
Electrics115/1/60115/1/60
Dimensions25" x 19" x 49"25" x 19" x 49"
Weight109 LBS109 LBS

CONDITION: This Machine Appears to be in Good Condition.

F.O.B. Cincinnati, OH
