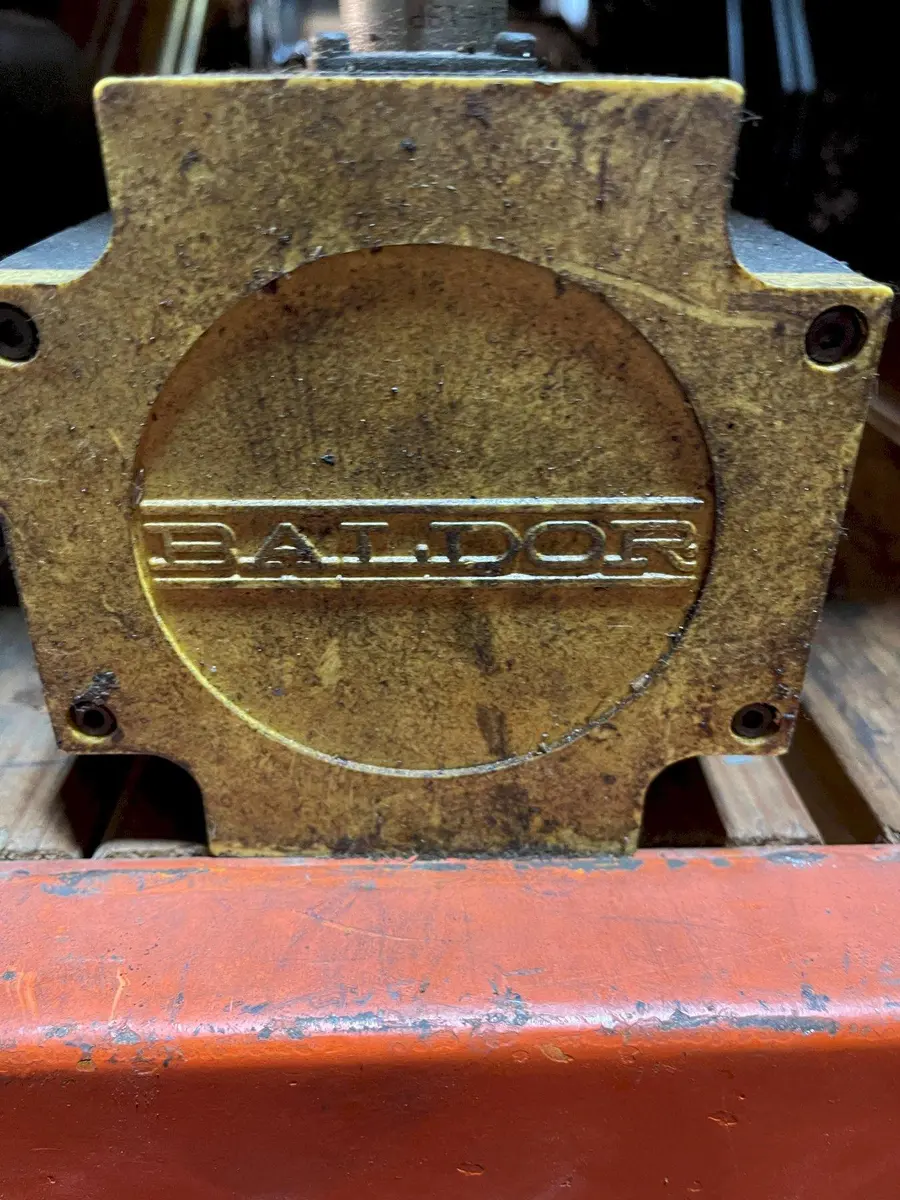

BALDOR BSM90B-3136 SPL, E1198016 | Motors, A.C.

Shaft Type: Keyed
AC Motor Type: Induction/Asynchronous
Spec Number: 35A01-872
Rated/Full-Load Torque: 6.5 Nm
Shaft Diameter: 5/8"
Motor Horsepower: 2 HP
Actual Rated Input Voltage: 208-230/460
Full Load Amps: 6.5-6.2/3.1
Base Speed: 1725 RPM
Frame: 145T
AC Frequency Rating: 60 Hz
Motor Phase: 3
Service Factor: 1.15
NEMA KVA Code: K
NEMA Design Letter: Design B (General Purpose)
Insulation Class: F (Max 155° C)
NEMA-NOM Efficiency: 82.5%
Power Factor: 77%
Ambient and Time Rating: 40° C AMB-CONT
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Reversible/Non-Reversible: Reversible
Current Type: AC
Mounting Type: F1 (Foot-Mounted, Base-Mounted)
Special Motor Construction: Brake Motor
Nominal Rated Input Voltage: 460 V, 230 V
Inverter/Vector Duty Rating: Inverter Duty
