Equipment
Motors
Servo Motors
CINCINNATI MILACRON 1FT5102-0AC01-2-Z, CMI# 1-606-4563

CINCINNATI MILACRON 1FT5102-0AC01-2-Z, CMI# 1-606-4563 | Servo Motors

Sell Your CINCINNATI MILACRON 1FT5102-0AC01-2-Z, CMI# 1-606-4563
513-771-2111
sales@gaec.com
Sell Your CINCINNATI MILACRON 1FT5102-0AC01-2-Z, CMI# 1-606-4563

Overview

Type:
Servo Motors
Manufacturer:
CINCINNATI MILACRON
Model:
1FT5102-0AC01-2-Z, CMI# 1-606-4563
Stock #:
Q10664
Status:
For Sale

Description

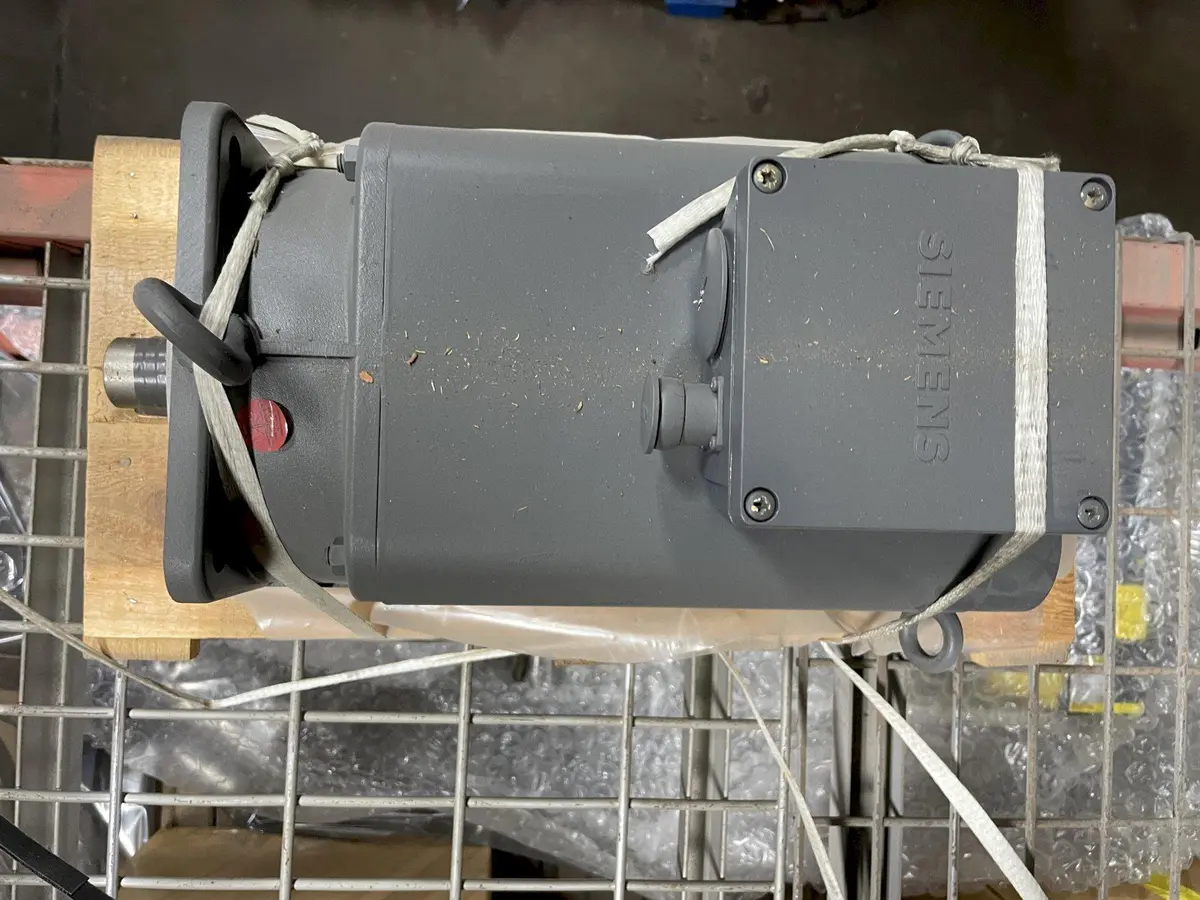

CINCINNATI MILACRON PERMANENT MAGNETIC MOTOR, 1FT5102-0AC01-2-Z, CMI# 1-606-4563

3-Phase Tacho, 1 FU1050-6AC, 20 mVmin Voltage constant phase-to-phase, VDE 0530, ΔT = 100° C, PTC Thermistor 155° C, Z: K84.

Use ONLY with 6SC610 Drives

Current TypeACAC
Torque (Stall)24.4 lbf108.5 N
Amp (Stall)50 A50 A
Voltage144144
Max Speed3,200 RPM3,200 RPM
EfficiencyIEC 100IEC 100
Motor Phase33
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP 64IP 64
Motor Mounting CodeIM B5IM B5
Dimensions19" x 12"19" x 12"
Weight70 LBS70 LBS

Current Type: AC
Torque (Stall): 33 Nm
Amp (Stall): 50 A
Voltage: 144 V wye
Max Speed: 3,200 RPM
Efficiency: IEC 100
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 64
Motor Mounting Code: IM B5
Approximate Dimensions: 19" x 12"
Approximate Height: 12"
Approximate Weight: 70 LBS

CONDITION: Servo Motor is New ! F.O.B. Cincinnati, OH
