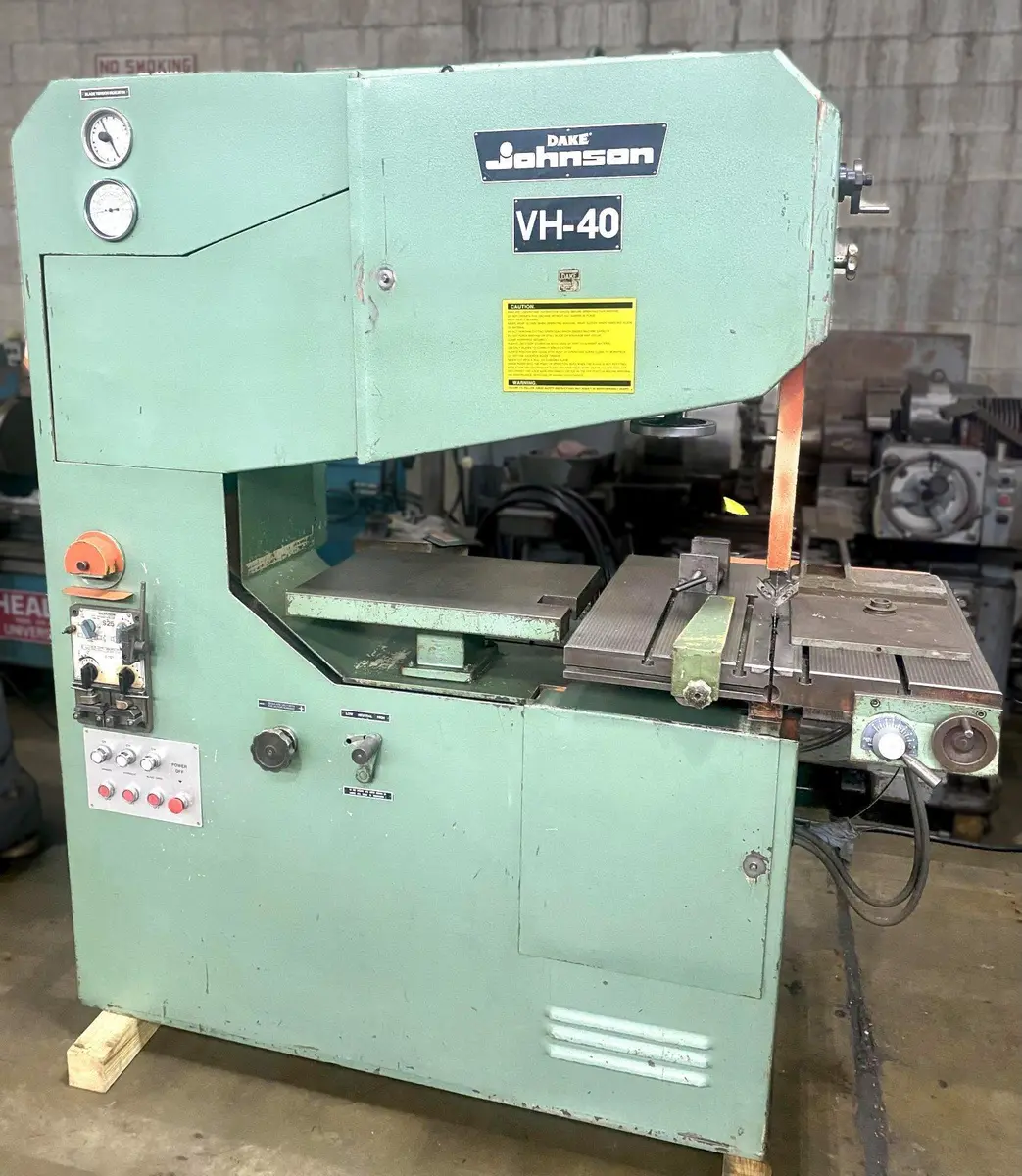

Dake Johnson VH-40 Vertical Band Saw

Dake Johnson VH-40 Vertical Band Saw

Sell Your Dake Johnson VH-40
513-771-2111
sales@gaec.com
Sell Your Dake Johnson VH-40

Overview

Type:
Saws, Band, Vertical
Manufacturer:
Dake Johnson
Model:
VH-40
Year:
1985
Stock #:
Q10776
Serial #:
184532

Description

DAKE JOHNSON VH-40 VERTICAL BAND SAW, 41" Throat Depth, 26" x 26" Table, 12-1/2" Work Height, Power Table Feed, 2.2 HP, New 1985.

Power Table Feed, Blade Welder, Several Extra Blades Included.

Throat Depth41"1,041.4 mm
Max Work Height Capacity12.5"317.5 mm
Worktable Dimensions (Overall) - L26.375"669.92 mm
Worktable Dimensions (Overall) - W26.375"669.92 mm
Worktable Tilt - L10°10°
Worktable Tilt - R30°30°
Worktable Travel10"254 mm
Worktable Height41"1,041.4 mm
Blade Length134"3,403.6 mm
Max Blade Width0.75"19.05 mm
Wheel Diameter16.5"419.1 mm
Blade Speeds, Infinitely VariableLow Range: 50 - 425 FPM | High Range: 425 - 4,250 FPMLow Range: 50 - 425 FPM | High Range: 425 - 4,250 FPM
Motor Power2.2 hp1.6 kW
Electrics220/440/3220/440/3
Dimensions72" x 60" x 78"72" x 60" x 78"
Weight2,460 LBS2,460 LBS

# Table T-Slots: 4
Table Weight Load Capacity: 850 LBS
Wheel Diameter: 16-1/2"
Hydraulic Pump Horsepower: 1/3 HP
Welding Capacity: 1/8" - 1"

CONDITION: This Machine Appears to be in Excellent Condition.

F.O.B. Cincinnati, OH
