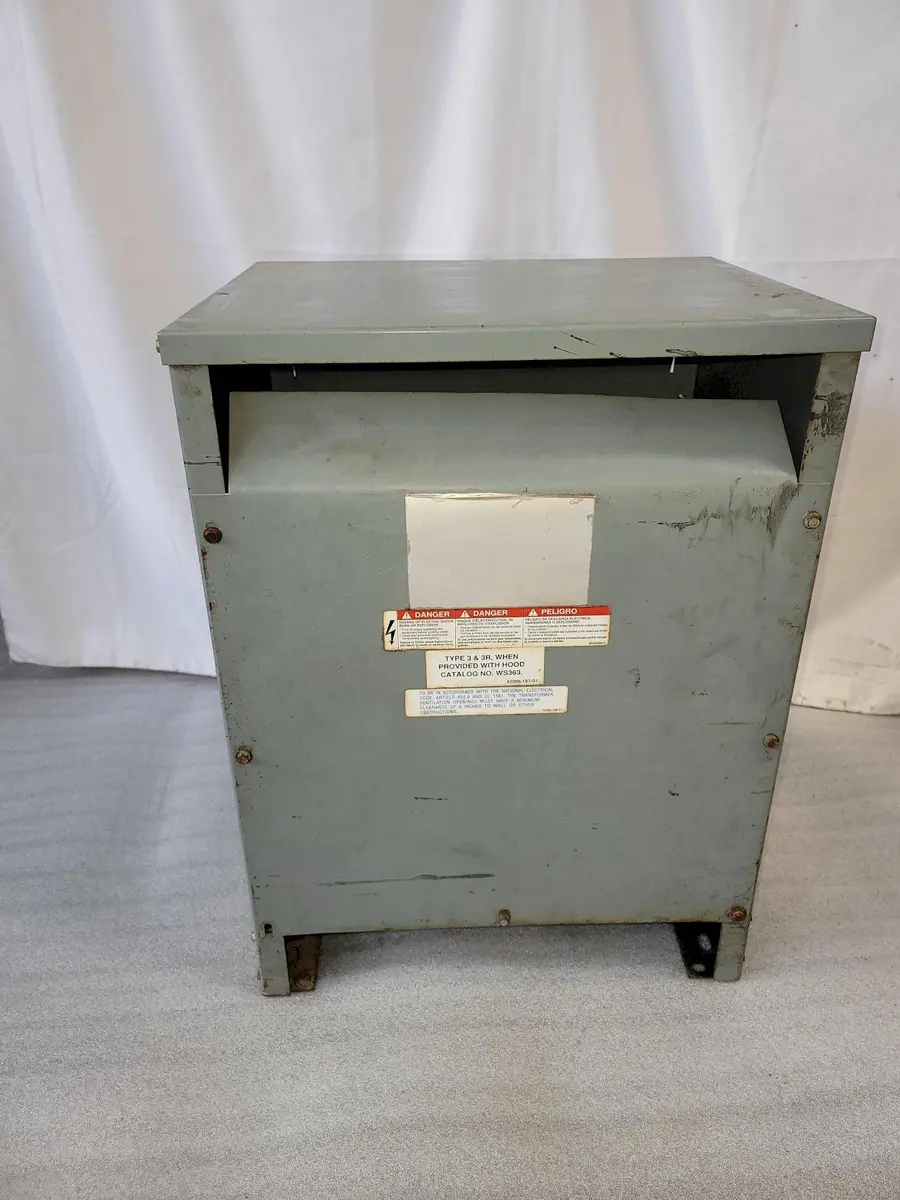

27 KVA SORGEL SQUARE D DRIVE ISOLATION TRANSFORMER, 3-Phase, 460 V Delta Primary to 460Y/265 V Secondary, Dry Type.
See attached drawing
Catalog Number
27T145HDIT
27T145HDIT
Phase - Electrical
3
3
Primary Input Voltage
460 V Delta
460 V
Secondary Output Voltage
460Y/265 V
460,265 V
VA Rating
27 kV·A
27 kV·A
NEMA Class
AA Dry Type
AA Dry Type
Insulation Temperature
428°F
220°C
Temp Rise
302°F
150°C
Enclosure Code
17D
17D
Enclosure Type
NEMA 2
NEMA 2
Winding Material
Aluminum
Aluminum
Dimensions
20" x 16" x 27"
20" x 16" x 27"
Weight
271 lbs
271 lbs
F.O.B. Cincinnati, OH
