KITAGAWA B-208 | Chucks
$1,750.00 USD

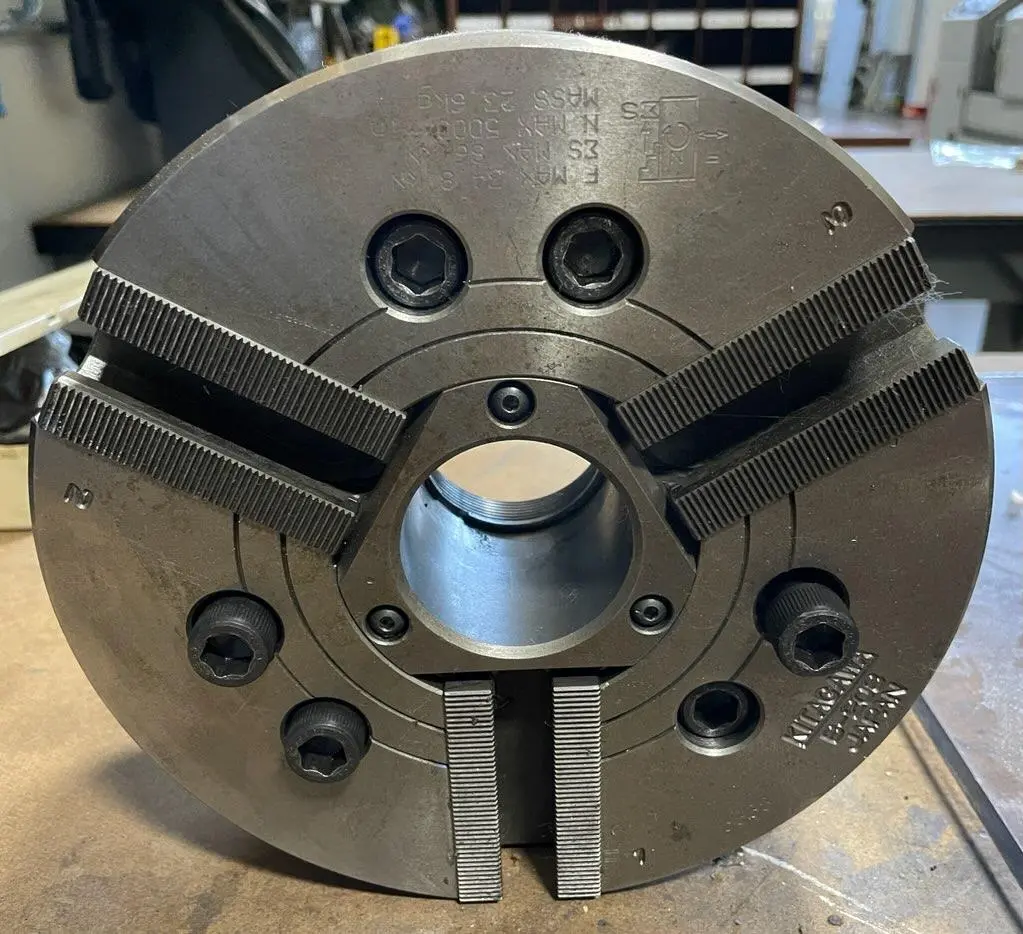

8" KITAGAWA B-208 3-JAW HYDRAULIC CHUCK, 52mm/2.1" Hole, 7.4mm/0.29" Jaw Stroke, 5000 RPM Max Speed, 86 kN Clamp Force, Lubrication Nipple on each Master Jaw.
Lubrication Nipple on Each Master Jaw, Master Jaw Serration 1.5mm x 60°.
Type: Power
# Jaws: 3
Type of Actuation: Hydraulic
Body Diameter: 210mm ( 8.27" )
Through Hole: yes
Through Hole Diameter: 52mm ( 2.1" )
Spindle Mount Type: A2-6
Jaw Stroke: 7.4mm ( 0.29" )
Max Speed: 5,000 RPM
Max Pull Force: 34.8 kN
Max Grip Force: 86 kN
Gripping Range: 210mm ( 8.27" ) Max, 13mm ( 0.51" ) Min
Max Pressure: 2.65 MPa
Approximate Weight: 23.6 KG / 52 LBS
CONDITION: Chuck Appears to be in Excellent Condition. Located in Cincinnati, OH
