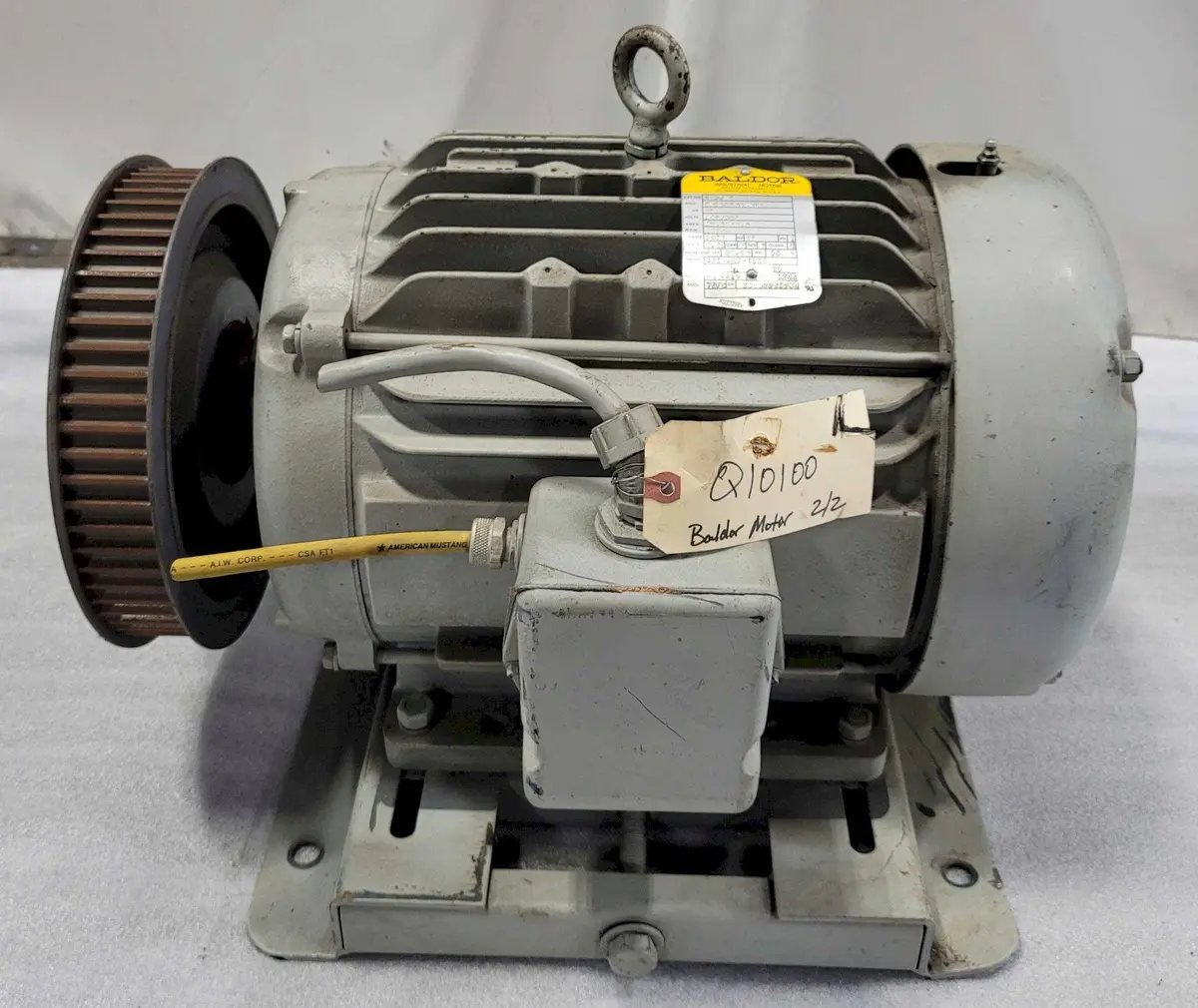

BALDOR RELIANCE AC INDUSTRIAL MOTOR, Model M2332T, 10 HP, 1175 RPM.
AC Motor Type: Induction
Spec Number: 09C101X829H1
Rated/Full-Load Torque: 44.6 LB-FT
Motor Horsepower: 10 HP
Full Load Amps: 28.8/14.4
Base Speed: 1175 RPM
Frame: 256T
AC Frequency Rating: 60 Hz
Motor Phase: 3 Phase
Service Factor: 1.15
NEMA KVA Code: H
NEMA Design Letter: B
Insulation Class: F (Max 155° C)
NEMA-NOM Efficiency: 89.5%
Power Factor: 73%
Ambient and Time Rating: 40° C AMB-CONT
Certified Compliant (CC) #: 010A
Drive End (DE): 6309
Opposite Drive End (ODE): 6208
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Reversible/Non-Reversible: Reversible
Current Type: AC
Mounting Type: F1 (Foot-Mounted, Base-Mounted)
Approximate Dimensions: 22" x 20"
Approximate Height: 15"
Approximate Weight: 300 LBS
F.O.B. Cincinnati, OH
