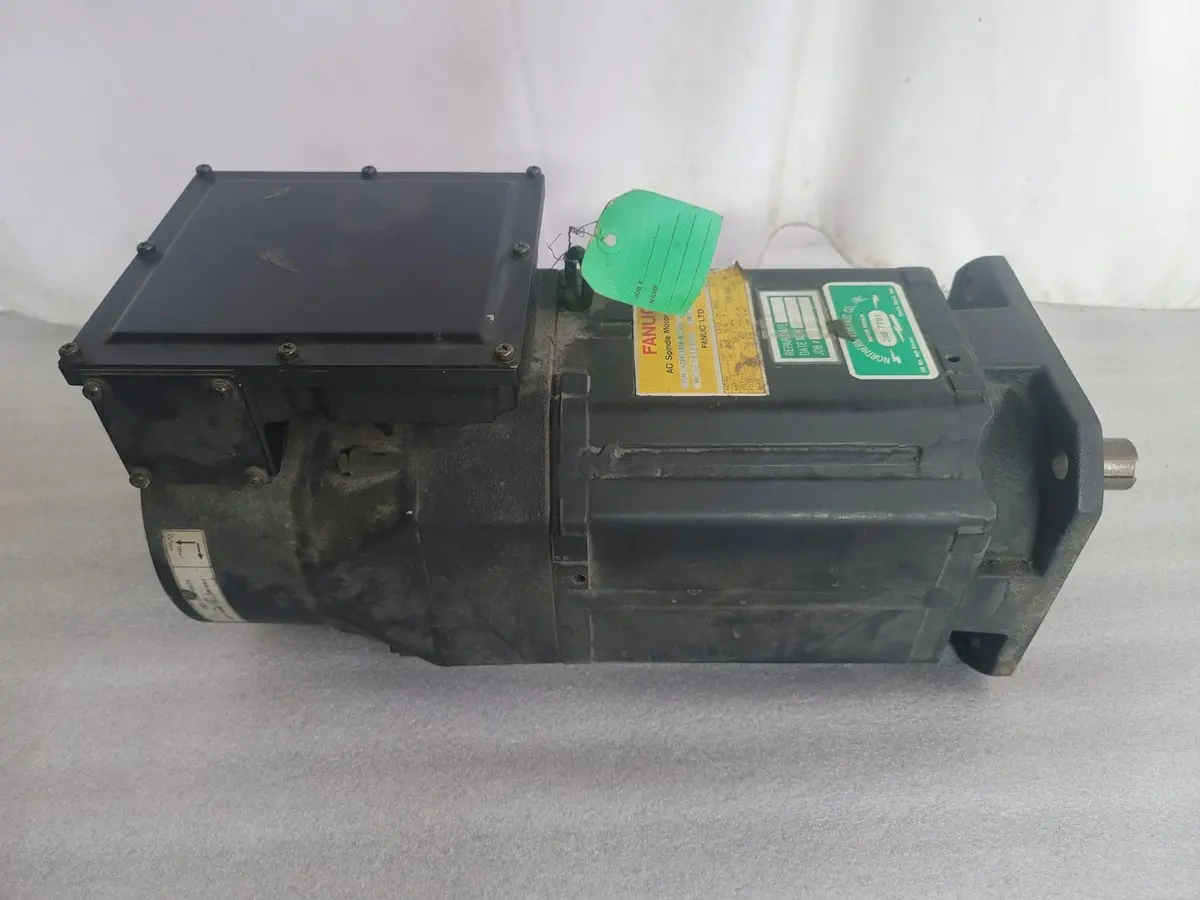

FANUC AC SPINDLE MOTOR A06B-1006-B904, Model 6, 10 HP, 200 VAC, 3-Phase, 8300 RPM, 40 Amps.
3-Phase, 4 Poles, Fan Motor p/n A290-1003-T500
Motor Horsepower: 10 HP / 7.5 kW
Base Speed: 1,300 RPM
Amperage: 22 / 40 A
Voltage: 200 V
Insulation Class: F (Max 155° C)
Duty: CONT
Ambient: 40° C
Current Type: AC
Approximate Dimensions: 22" x 9"
Approximate Height: 10"
Approximate Weight: 150 LBS
CONDITION: This Motor Appears to be in Very Good Condition. F.O.B. Cincinnati, OH
