WESTINGHOUSE ADFC | Motors, A.C.

Sell Your WESTINGHOUSE ADFC
513-771-2111
sales@gaec.com
$175.00 USD
Sell Your WESTINGHOUSE ADFC

Overview

Type:
Motors, A.C.
Manufacturer:
WESTINGHOUSE
Model:
ADFC
Stock #:
Q10827
Status:
For Sale
Serial #:
27N6647

Description

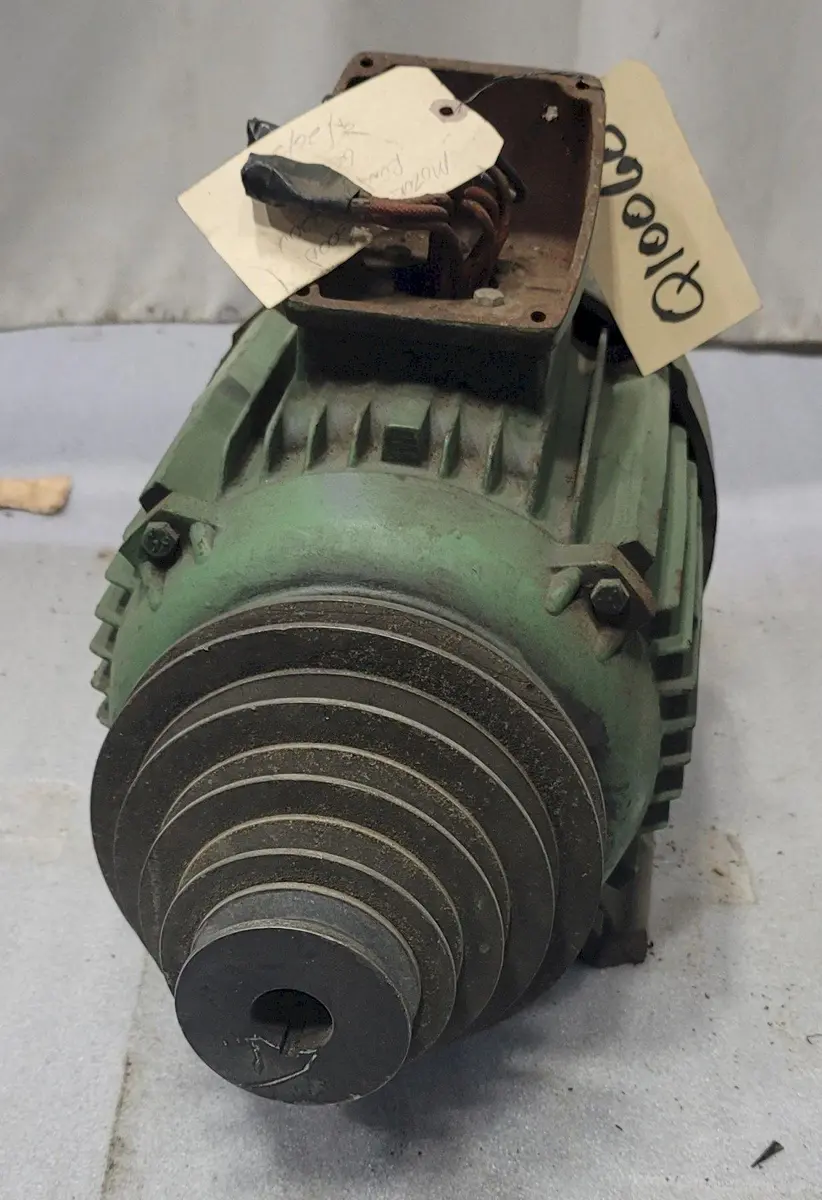

2 HP WESTINGHOUSE LIFE-LINE A MOTOR, Model ADFC

Motor Power2 hp2 hp
Actual Rated Input Voltage220 V220 V
Full Load Amps10 A10 A
Base Speed790 RPM790 RPM
Frame215215
AC Frequency Rating60 Hz60 Hz
Motor Phase-3-3
NEMA KVA CodeGG
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Ambient and Time Rating40° C AMB40° C AMB
Drive End (DE)374P688G01374P688G01
Opposite Drive End (ODE)374P687G01374P687G01
Dimensions21" x 12"21" x 12"
Weight150150

AC Motor Type: Special Reversing Duty
Motor Horsepower: 2 HP
Actual Rated Input Voltage: 220/440 V
Full Load Amps: 10/5 A
Base Speed: 790 RPM
Frame: 215
AC Frequency Rating: 60 Hz
Motor Phase: 3-Phase
NEMA KVA Code: G
Insulation Class: F (Max 155° C)
Ambient and Time Rating: 40° C AMB
Drive End (DE): 374P688G01
Opposite Drive End (ODE): 374P687G01
Current Type: AC
Approximate Dimensions: 21" x 12"
Approximate Height: 15"
Approximate Weight: 150 LBS

CONDITION: This Motor Appears to be in Very Good Condition. F.O.B. Cincinnati, OH
