MARATHON LQE 56T17G26L W

MARATHON LQE 56T17G26L W | Motors, A.C.

Sell Your MARATHON LQE 56T17G26L W
513-771-2111
sales@gaec.com
$175.00 USD
Sell Your MARATHON LQE 56T17G26L W

Overview

Type:
Motors, A.C.
Manufacturer:
MARATHON
Model:
LQE 56T17G26L W
Stock #:
Q10837
Status:
For Sale

Description

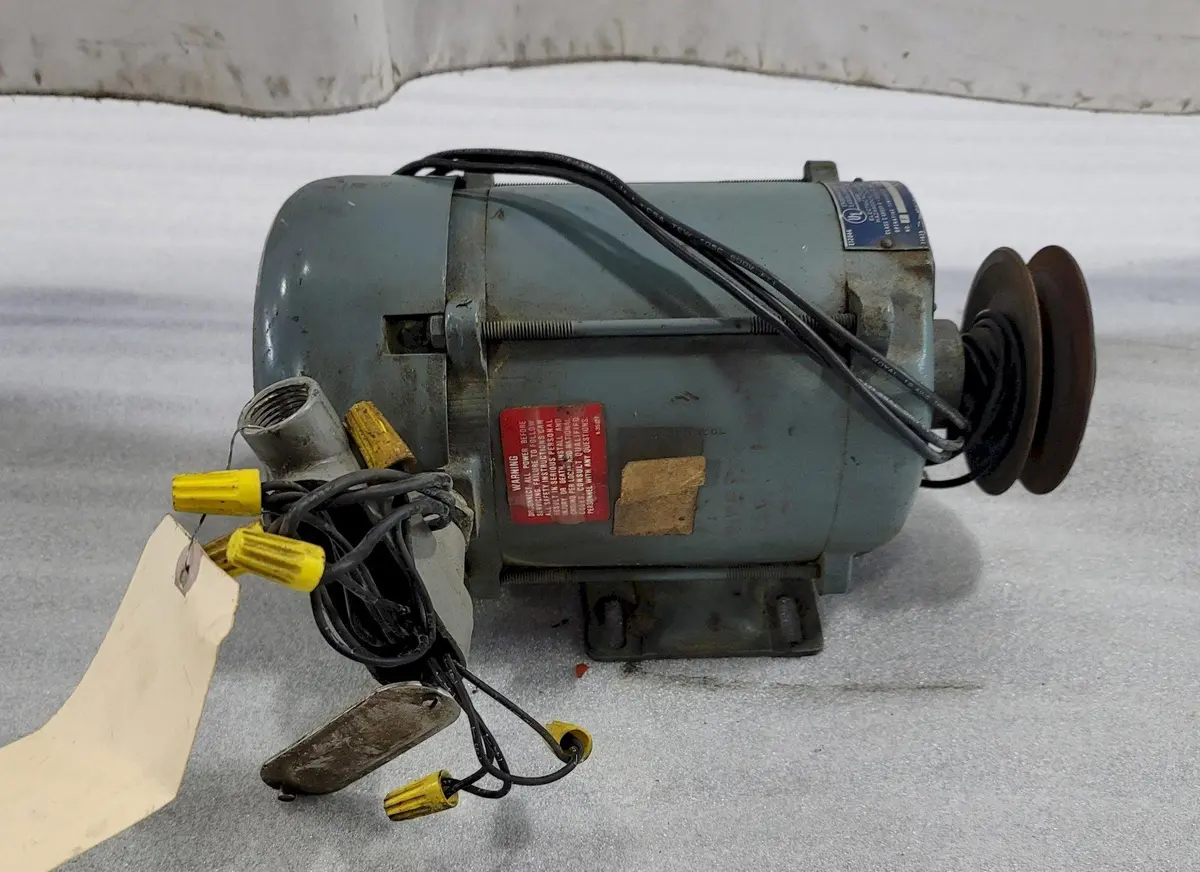

MARATHON ELECTRIC AC MOTOR, 3/4 HP, 230/460 VAC, 3-Phase, 1725 RPM, IEC Frame Size 56-7.

Motor Power0.8 hp0.8 hp
Actual Rated Input Voltage230 V230 V
Full Load Amps2.7 A2.7 A
Base Speed1,725 RPM1,725 RPM
Frame56-756-7
AC Frequency Rating60 Hz60 Hz
Motor Phase33
Service Factor11
Insulation ClassB (Max 130° C / 266° F)B (Max 130° C / 266° F)
Ambient and Time Rating40° C AMB-CONT40° C AMB-CONT
Dimensions7 x 11"7 x 11"
Weight39 lbs39 lbs

AC Motor Type: TSE
Motor Horsepower: 3/4 HP
Actual Rated Input Voltage: 230/460 V
Full Load Amps: 2.7/1.35 A
Base Speed: 1725 RPM
Frame: 56-7
AC Frequency Rating: 60 Hz
Motor Phase: 3 Phase
Service Factor: 1.0
Insulation Class: B (Max 130° C)
Ambient and Time Rating: 40° C AMB-CONT
Approximate Dimensions: 7" x 11"
Approximate Height: 13"
Approximate Weight: 39 LBS

CONDITION: This Motor Appears to be in Very Good Condition. F.O.B. Cincinnati, OH
