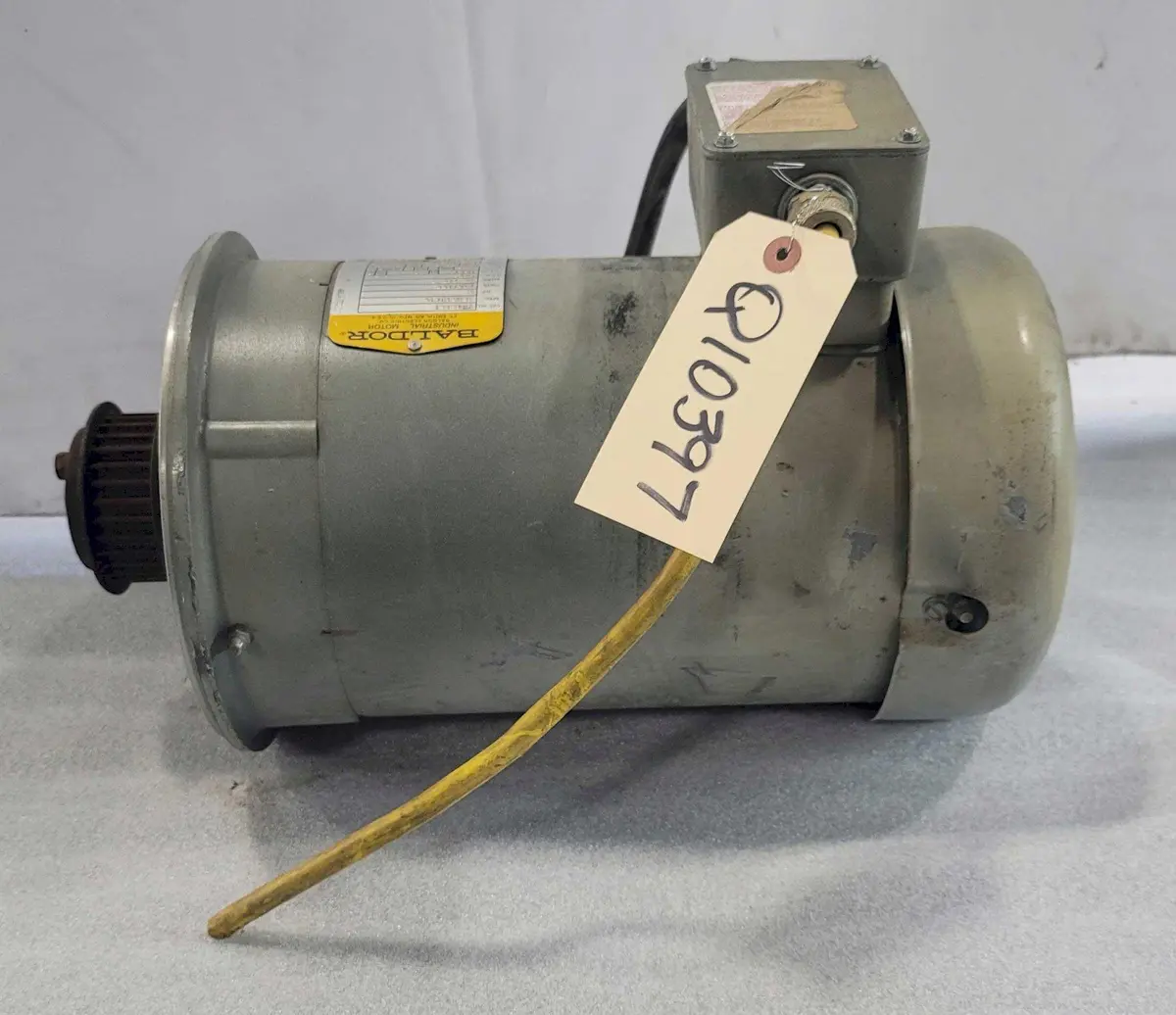

BALDOR VM3615T | Motors, A.C.

Spec Number: 36A03W415
Motor Horsepower: 5 HP
Actual Rated Input Voltage: 230/460 V
Full Load Amps: 13.2/6.6 A
Base Speed: 1,725 RPM
Frame: 184TC
AC Frequency Rating: 60 Hz
Motor Phase: 3 Phase
Service Factor: 1.15
NEMA KVA Code: J (Locked Rotor Code: 7.1 - 7.99 kVA)
NEMA Design Letter: B (General Purpose)
Insulation Class: F (Max 155° C)
NEMA-NOM Efficiency: 85.5%
Power Factor: 80%
Ambient and Time Rating: 40° C AMB-CONT
Drive End (DE): 6206
Opposite Drive End (ODE): 6205
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Current Type: AC
Approximate Dimensions: 19" x 12"
Approximate Height: 15"
Approximate Weight: 74 LBS
