INDRAMAT 2AD180C-B35LA2-BS11-B2N1

INDRAMAT 2AD180C-B35LA2-BS11-B2N1 | Motors, A.C.

Sell Your INDRAMAT 2AD180C-B35LA2-BS11-B2N1
513-771-2111
sales@gaec.com
$2,450.00 USD
Sell Your INDRAMAT 2AD180C-B35LA2-BS11-B2N1

Overview

Type:
Motors, A.C.
Manufacturer:
INDRAMAT
Model:
2AD180C-B35LA2-BS11-B2N1
Stock #:
Q11028
Status:
For Sale

Description

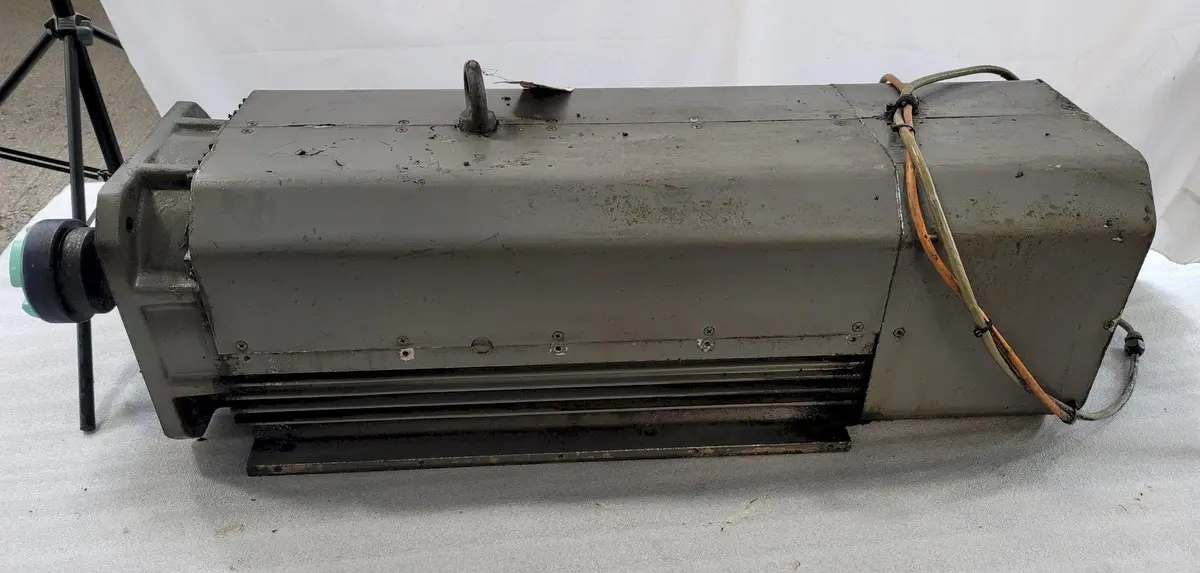

INDRAMAT 3-PHASE AC INDUCTION MOTOR 2AD180C-B35LA2-BS11-B2N1

Axial In-Take Cooling Mode
PART NO 249775
BUILD WEEK 16/94
COM NO 00143664
S.NO 2AD180-00635

AC Motor TypeInductionInduction
Spec Number2AD180-632AD180-63
Rated/Full-Load Torque331331
Motor Power69.6 hp69.6 hp
Full Load Amps110 A110 A
Base Speed1,500 RPM1,500 RPM
Motor Phase33
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP54IP54
Mounting TypeFlange and Foot MountingFlange and Foot Mounting
Dimensions51" x 19"51" x 19"
Weight850 LBS850 LBS

AC Motor Type: Induction
Spec Number: 2AD180-63
Rated/Full-Load Torque: 331 Nm
Motor Power: 52 kW
Full Load Amps: 110 A
Base Speed: 1,500 RPM
Motor Phase: 3 Phase
Insulation Class: F (Max 155° C)
Enclosure Rating: IP54
Current Type: AC
Mounting Type: Flange and Foot Mounting
Approximate Dimensions: 51" x 19"
Approximate Height: 15"
Approximate Weight: 850 LBS

CONDITION: This Motor Appears to be in Very Good Condition. F.O.B. Cincinnati, OH
