2003 Sew-Eurodrive SF37VU01DT71D4 | Gearboxes
$795.00 USD

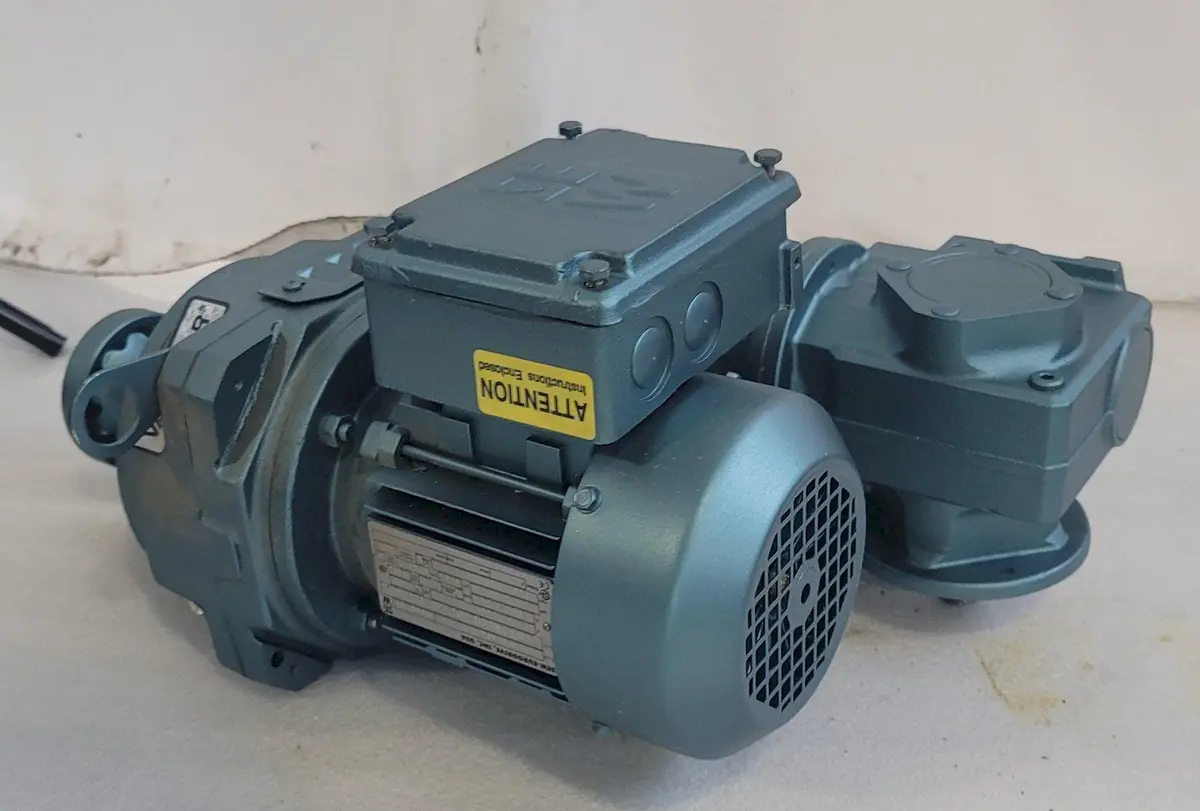

SEW-EURODRIVE VARIGEAR HELICAL-WORM GEAR UNIT (GEARBOX + MOTOR), New 2003.
Gear Ratio: 122.94
Output Speed: 6.0 - 31 RPM
Mounting Position: M4B
Shaft Diameter: 20 mm
Flange Diameter: 120 mm
Terminal Box Position: 180
Output Torque: 525 LB-IN
Service Factor: 1.0
Motor Horsepower: 0.5 HP
Motor Voltage: 230YY/460Y V
Motor Frequency: 60 Hz
Ambient and Time Rating: 40° C AMB-CONT
Wiring Diagram: DT79
Rated Current: 2.00 / 1.00 A
NEMA KVA Code: H
NEMA Design Letter: B (General Purpose)
Insulation Class: B (130° C)
Approximate Dimensions: 18" x 11"
Approximate Height: 15"
Approximate Weight: 71 LBS
CONDITION: This Gear Unit Appears to be in Excellent Condition.
F.O.B. Cincinnati, OH
