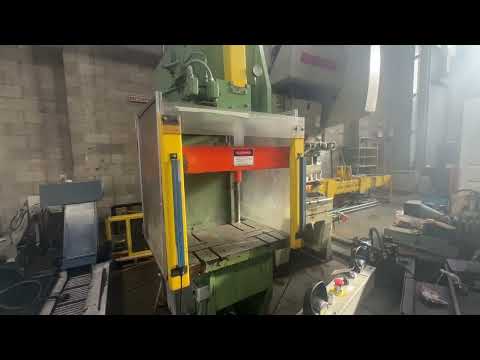

28 Ton Hannifin OGP-28 C-Frame Hydraulic Gap Press

Address: 11925 Enterprise Dr,, Cincinnati, OH, 45241-1513, US
Telephone: 513-771-2111

Overview

Type:

Presses, C-Frame

Manufacturer:

Model:

OGP-28

Stock #:

Q11104

Serial #:

T-16830-2

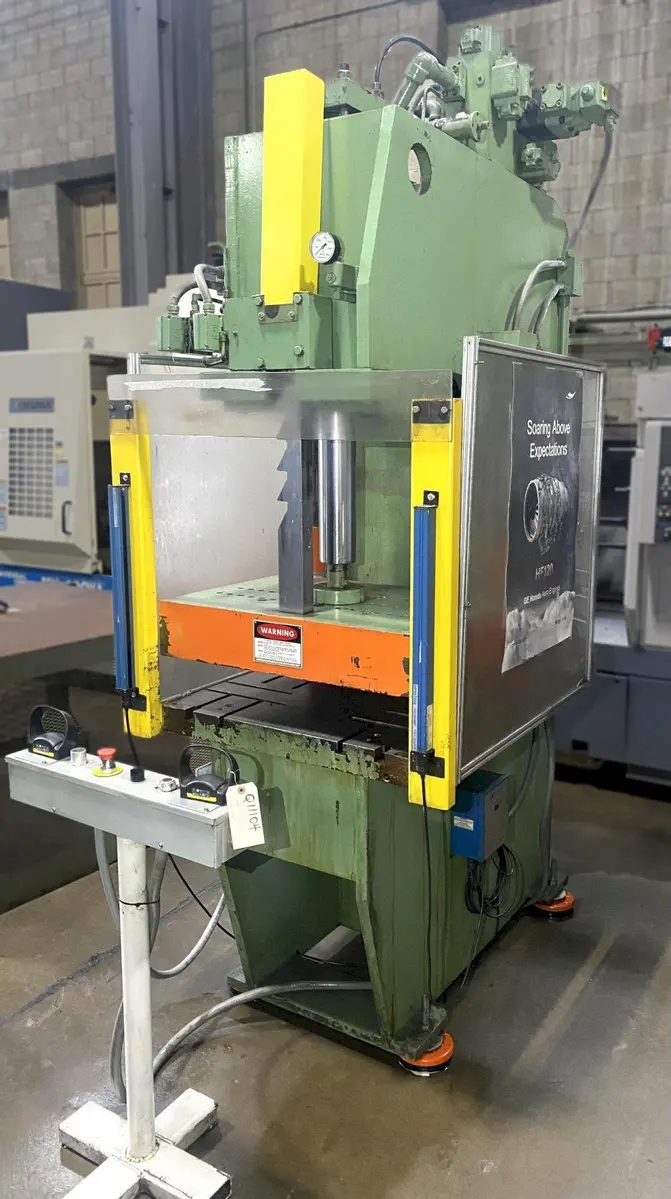

28 TON HANNIFIN OGP-28 C-FRAME HYDRAULIC GAP PRESS, 19" Stroke, 22.5" Throat, 32" x 22.5" Bed.

Dual Palm Button, Emergency Stop Pushbutton. Light Curtain, Start and Motor Stop Pushbutton, Parts Counter, Pressure Gauge.

ImperialMetric

Tonnage Capacity	28 T	25.401 t
Stroke Length	19"	482.6 mm
Throat Depth	22.5"	571.5 mm
Main Cylinder Diameter	4"	101.6 mm
Bed Size (L-R)	32"	812.8 mm
Bed Size (F-B)	22.5"	571.5 mm
Working Surface Size: Upper Platen-L	32"	812.8 mm
Working Surface Size: Upper Platen-W	22.5"	571.5 mm
Working Surface Size: Lower Platen-L	32"	812.8 mm
Working Surface Size: Lower Platen-W	22.2"	563.88 mm
Max Pressure	1,980 PSI	13,651,594.8 Pa
Max Distance Bed to Floor	38"	965.2 mm
Hydraulic Pump Power	20 hp	14.9 kW
Hydraulic Reservoir Capacity	55 gal	0.2 m³
Motor Speed	1,750 RPM	1,750 RPM
Electrics	230/460 Operating Voltage 460	230/460 Operating Voltage 460
Dimensions	40" x 60" x 113"	40" x 60" x 113"

CONDITION: This Press Appears to be in Excellent Condition.

F.O.B. Cincinnati, OH
