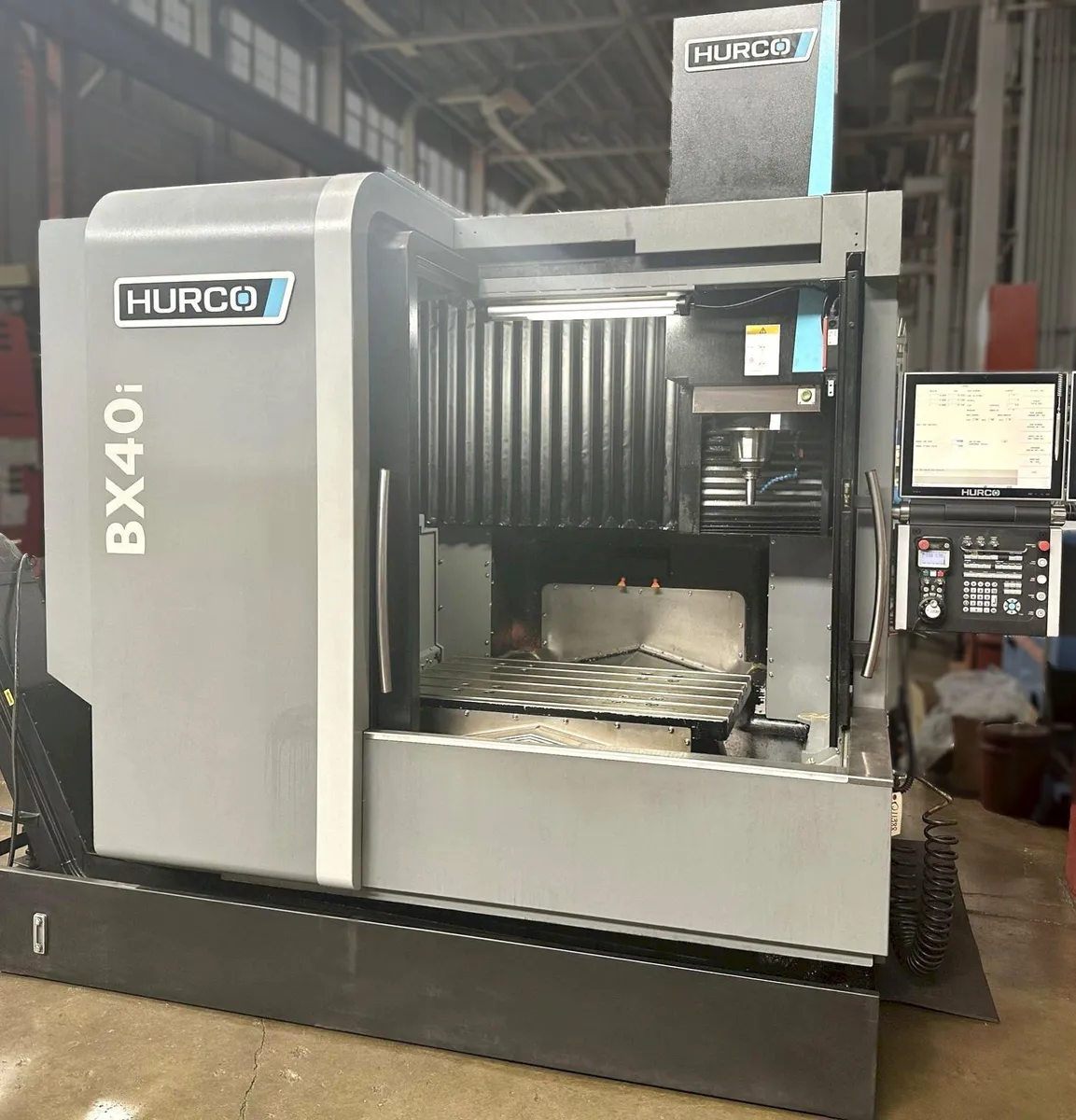

Hurco BX40i Heavy Duty Double Column CNC Vertical Machining Center

Hurco BX40i Heavy Duty Double Column CNC Vertical Machining Center

Sell Your Hurco BX40I
513-771-2111
sales@gaec.com
Request Financing
Sell Your Hurco BX40I

Overview

Type:
Machining Centers, Gantry (incld. Bridge & Double Column)
Manufacturer:
Hurco
Model:
BX40I
Year:
2019
Stock #:
Q11388
Serial #:
SB473-1E00157ABJCH

Description

HURCO BX40i HEAVY DUTY DOUBLE COLUMN CNC VERTICAL MACHINING CENTER, WinMax 5 CNC Control, 41" x 27" Table, X=40", Y=27.6", Z=19.7", HSK 63 Taper, 47 HP, 18,000 Max Spindle RPM, 30 ATC, TSC, HPC, Chip Conveyor, New 2019.

WinMax 5 Double Screen CNC Control, 18,000 RPM High Speed Spindle, Advanced Verification Graphic, DXF, NC Productivity Package, Helical Ramp, 3D Mold, Swept Surface, HSK 63 Spindle, 30 Station Automatic Tool Changer, 300 PSI Coolant Thru Spindle, Chip Conveyor, Coolant System.

*1130 Spindle Hours- Excellent Condition.

ControlCNC (WinMax 5 CNC Control)CNC (WinMax 5 CNC Control)
# Axis33
Table-L41.3"1,049 mm
Table-W27.6"701.04 mm
Table Load Capacity2,204 lb999.7 kg
T-Slot Length6"152.4 mm
T-Slot Width0.7"17.78 mm
X-Axis (Longitudinal Travel)40.2"1,021.1 mm
Y-Axis (Cross Travel)27.6"701.04 mm
Z-Axis (Vertical Travel)19.7"500.38 mm
Max Clearance Tabletop to Spindle Nose26.7"678.18 mm
Min Clearance Tabletop to Spindle Nose7"177.8 mm
Rapid Traverse Rate, All Axes1,417 in/min.35,991.8 mm/min.
Spindle Power47 hp35 kW
Max Spindle Speed18,000 RPM18,000 RPM
Spindle TaperHSK 63HSK 63
Torque, Up To88 FT-LBS @ 2,800 RPM391.4 N
Coolant Thru SpindleYesYes
Automatic Tool Changer Capacity (ATC)3030
Automatic Tool Changer StyleSide-MountSide-Mount
Machine Hours11301130
Dimensions188" x 138" x 124"188" x 138" x 124"
Weight21,000 LBS21,000 LBS

CONDITION: This Machine Appears to be in Excellent Condition ! 1130 Spindle Hours- Hardly Used.

F.O.B. Cincinnati, OH
