1976 RELIANCE 1LA709266T1 | Motors, D.C.
$225.00 USD

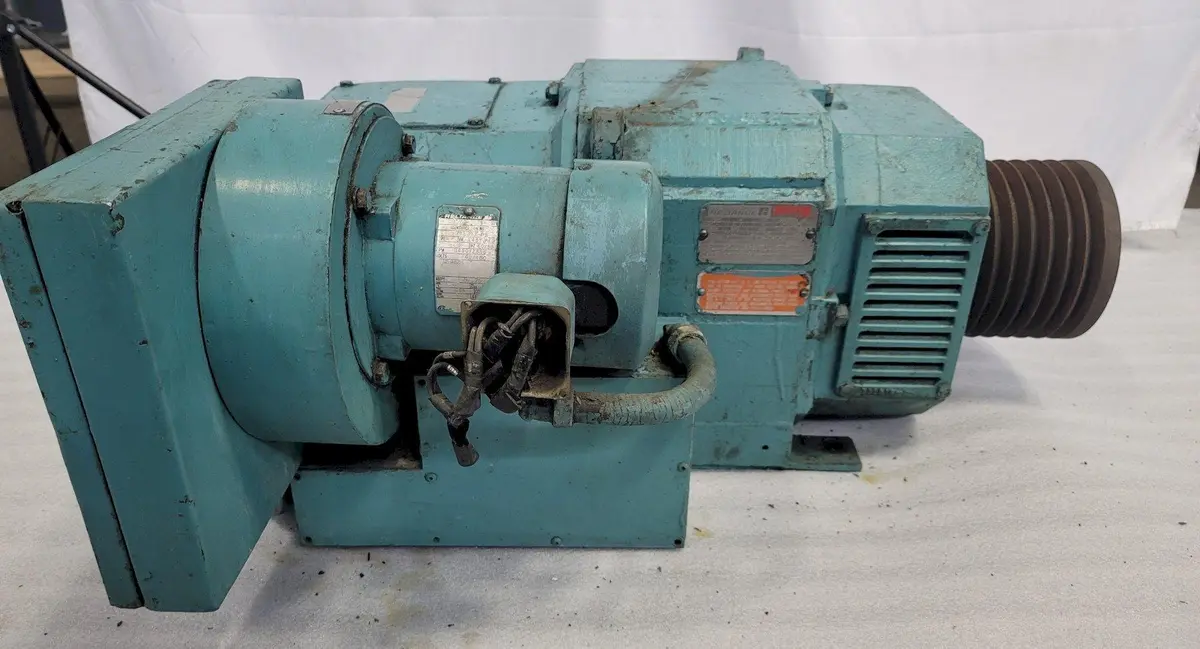

RELIANCE ELECTRIC DC MOTOR AND BLOWER, 20/30 HP, 240 VDC, 75/110 A, 3450 RPM, Straight Shunt Winding, New 1976.
Specifications for the RELIANCE BLOWER MOTOR:
ID # 715383-PB
TYPE P
FR L48Y
PH 3
HP 1/2
HZ 60/50
RPM 3450/2850
VOLTS 240/480
E54825
AMPS 1.5/.75
AMB 40° C
INS CLASS H
TIME RATING CONT
SF 1
Motor Horsepower: 20/30 HP
Base Speed: 1150/3450 RPM
Armature Voltage: 240 V
Armature Amps: 75/110 A
Wound: STRAIGHT SHUNT
Field Amps: 2.48/.53 A
Field Voltage: 240 V
Insulation Class: F (Max 155° C)
Duty: MTD
Ambient: 40° C
Frame: 287AT
Current Type: DC
Approximate Dimensions: 36" x 26"
Approximate Height: 17"
Approximate Weight: 700 LBS
CONDITION: This Motor and Blower Unit Appears to be in Very Good Condition. F.O.B. Cincinnati, OH
