6" x 18" DoALL Hand Feed Horizontal Surface Grinder, Model G-618M

6" x 18" DoALL Hand Feed Horizontal Surface Grinder, Model G-618M

Sell Your DoAll G-618M
513-771-2111
sales@gaec.com
Sell Your DoAll G-618M

Overview

Type:
Grinders, Surface, Recip.
Manufacturer:
DoAll
Model:
G-618M
Year:
1989
Stock #:
Q11406
Serial #:
453-89210

Description

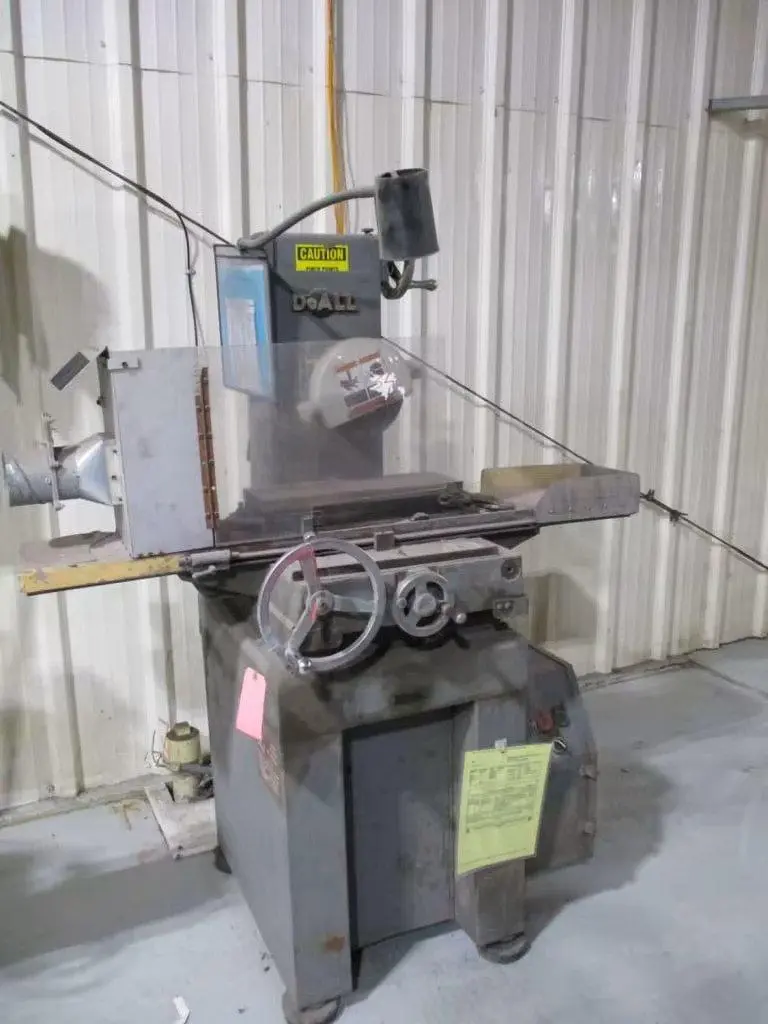

6" x 18" DOALL HAND FEED HORIZONTAL SURFACE GRINDER, Model G-618M, 6" x 18" Walker Cermax Permanent Magnetic Chuck, 7" Wheel Size, 12" Height Under Wheel, 1 HP, New 1989.

Spindle Model MD-5, Cabinet Base, Table Stops, Work Light.

Spindle (Horz/Vert)HorizontalHorizontal
Table Size-L18"457.2 mm
Table Size-W6"152.4 mm
Max Height Under New Wheel12"304.8 mm
Max Longitudinal Travel3.125"79.375 mm
Cross Travel6.5"165.1 mm
Vertical Travel12.5"317.5 mm
Cross Feed Handwheel Graduation0.1"2.54 mm
Vertical Handwheel Graduation0.0001"0.0025 mm
Max Grinding Wheel Diameter7"177.8 mm
Max Grinding Wheel Width0.5"12.7 mm
Grinding Wheel Power1 hp0.7 kW
Coolant Pump Power1/25 hp0 kW
Electrics200/208/230/460/575/ 3 / 60200/208/230/460/575/ 3 / 60
Dimensions56" x 42"x 70"56" x 42"x 70"
Weight1,100 LBS1,100 LBS

CONDITION: This Grinder Appears to be in Good Condition.

F.O.B. Cincinnati, OH
