8" x 20" Okamoto Horizontal Surface Grinder

8" x 20" Okamoto Horizontal Surface Grinder

Sell Your Okamoto 820N
513-771-2111
sales@gaec.com
Sell Your Okamoto 820N

Overview

Type:
Grinders, Surface, Recip.
Manufacturer:
Okamoto
Model:
820N
Year:
1981
Stock #:
Q11418
Serial #:
2048

Description

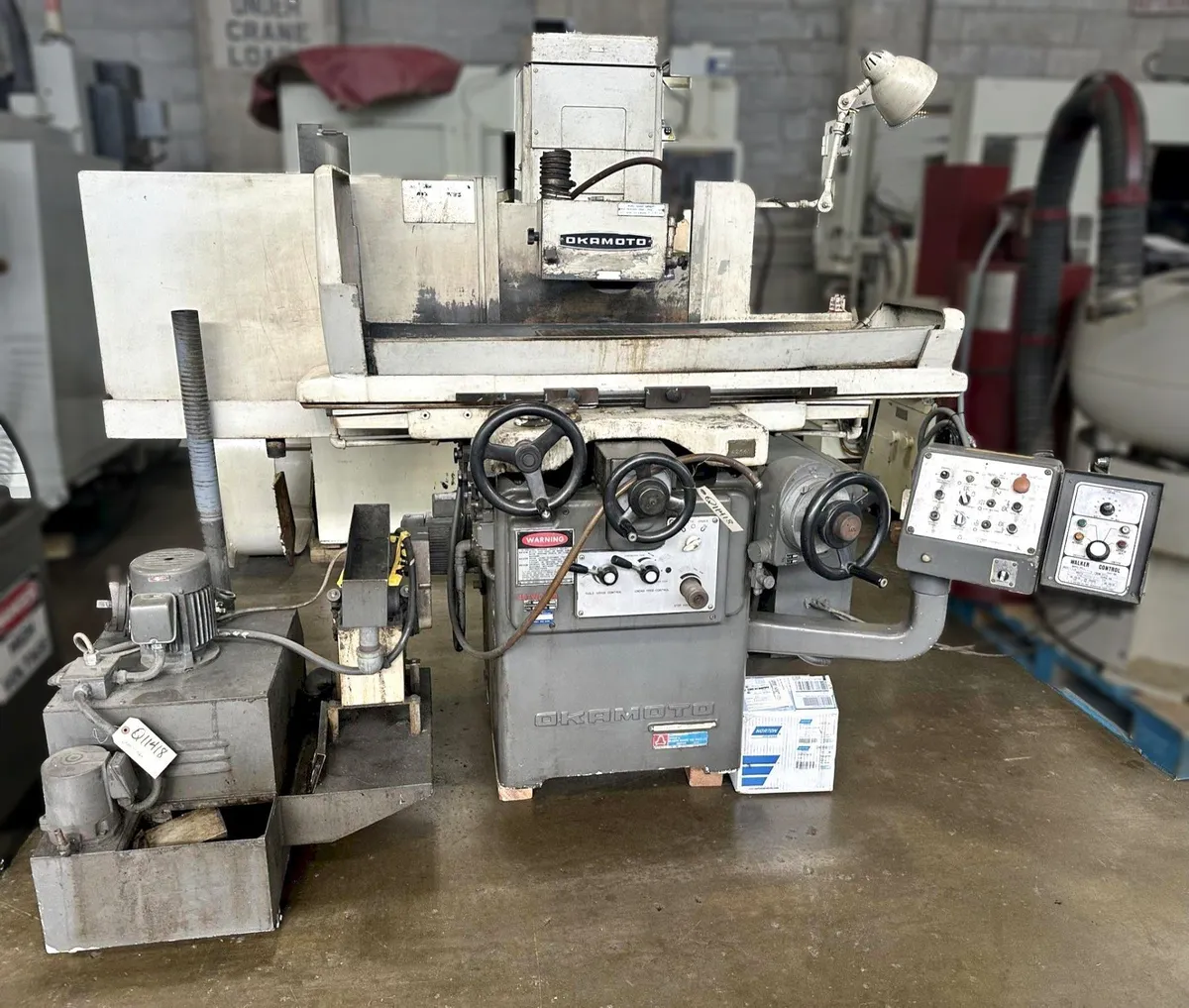

8" x 20" OKAMOTO HORIZONTAL SURFACE GRINDER, Model 820N, Auto Downfeed,8" x 20" Magnetic Chuck, 8" Wheel Size, 15.6" Height Under Wheel, 3 HP, New 1981.

Electro-magnetic chuck with rectifier and neutrofier, Automatic incremental downfeed, Vertical feed to wheelhead, Manual operation or Automatic incremental down feed, Okamoto electronic controls for all machine functions and cycles, Coolant System, Magnetic Separator Hydraulic System, Coolant Pump and Tank.

Down FeedYesYes
Spindle (Horz/Vert)HorizontalHorizontal
Magnetic Chuck Working Surface-L20"508 mm
Magnetic Chuck Working Surface-W8"203.2 mm
Max Height Under New Wheel15.6"396.24 mm
Max Longitudinal Travel25.59"649.99 mm
Cross Travel9.05"229.87 mm
Cross Feed Handwheel Graduation0.0004"0.0102 mm
Vertical Handwheel Graduation0.00005"0.0013 mm
Table Longitudinal Feeds Range (Variable)1 - 83 ft/min.25.3 m/min.
Max Spindle Speed6,000 RPM6,000 RPM
Max Grinding Wheel Diameter8"203.2 mm
Max Grinding Wheel Width1"25.4 mm
Max Grinding Wheel Hole Diameter1.25"31.75 mm
Grinding Wheel Power3 hp2.2 kW
Electrics230/3/60230/3/60
Dimensions90" x 65" x 72"90" x 65" x 72"
Weight3,500 lbs3,500 lbs

CONDITION: This Grinder Appears to be in Excellent Condition.

F.O.B. Cincinnati, OH
