2017 DOOSAN DNM 5700 | Machining Centers, Vertical

Sell Your DOOSAN DNM 5700
513-771-2111
sales@gaec.com
Request Financing
Sell Your DOOSAN DNM 5700

Overview

Type:
Machining Centers, Vertical
Manufacturer:
DOOSAN
Model:
DNM 5700
Year:
2017
Stock #:
Q11451
Status:
For Sale
Serial #:
MV0091-001370

Description

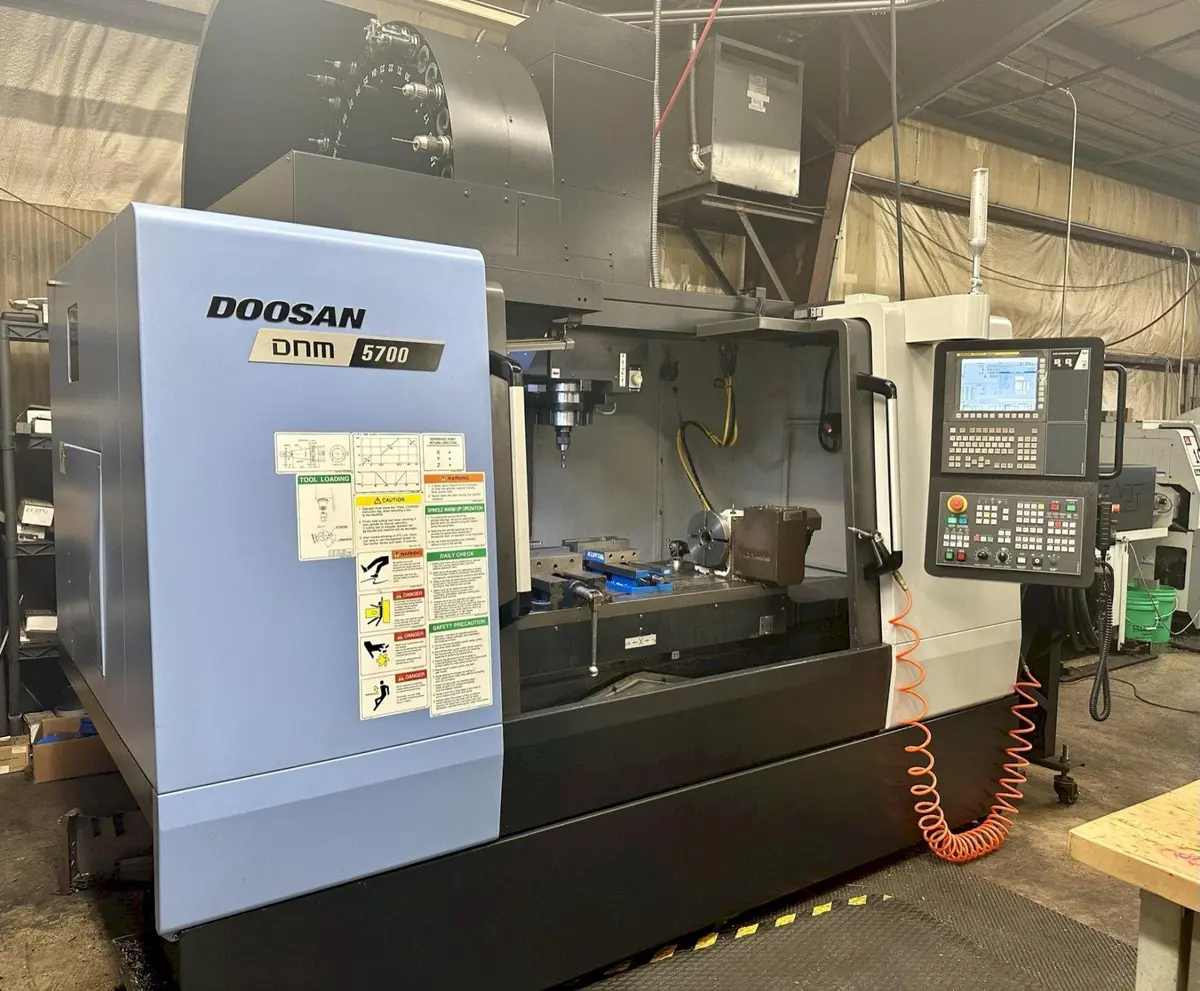

DOOSAN DNM 5700 4-AXIS CNC VERTICAL MACHINING CENTER, Fanuc 0i CNC Control, 51" x 22" Table, X=41", Y=22", Z=20", 40 Taper, 15000 Max Spindle RPM, 4th Axis Rotary Table, 40 ATC, Chip Conveyor, Low Hours, New 2017.

Fanuc i Series CNC Control, 15000 RPM Spindle (upgraded option), 40 Station Tool Changer (upgraded option), Komo RWE-160R 4th Axis Rotary Table, Chip Conveyor & Coolant System.

CNC ControlFanuc 0i CNCFanuc 0i CNC
# Axis44
Table-L55.1"1,399.5 mm
Table-W22.4"568.96 mm
Max Table Load Capacity2,205 lb1,000.2 kg
X-Axis (Longitudinal Travel)41.3"1,049 mm
Y-Axis (Cross Travel)22.4"568.96 mm
Z-Axis (Vertical Travel)20.1"510.54 mm
Max Clearance Tabletop to Spindle Nose26"660.4 mm
Min Clearance Tabletop to Spindle Nose5.9"149.86 mm
Rapid Traverse Rate (X, Y, & Z Axis)1,417 in/min.36 m/min.
Spindle Power25 hp18.6 kW
Spindle Speed Range0 - 15,000 RPM15,000 RPM
Spindle Taper4040
Automatic Tool Changer Capacity (ATC)4040
Automatic Tool Changer StyleSide-MountSide-Mount
Machine Hours18001800
Electrics220/3/60220/3/60
Dimensions120" x 118" x 106"120" x 118" x 106"
Weight15,000 LBS15,000 LBS

CONDITION: This Machine Appears to be in Excellent Condition ! F.O.B. Cincinnati, OH
