1991 KITAGAWA Y1240RE | Chucks, Parts, Tooling & Accessories
$950.00 USD

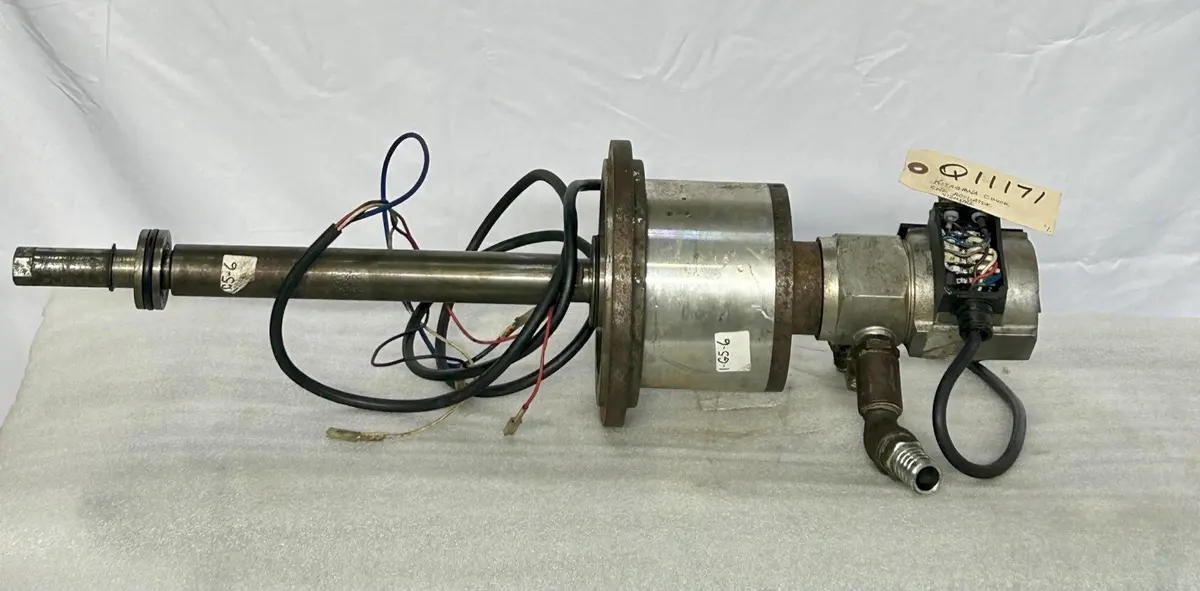

KITAGAWA CHUCK ACTUATOR, with "Y" Type Rotary Hydraulic Cylinder Model Y1240RE with Lock Valve, Relief Valve, and Proximity Switch (1991).
Type of Actuator: Rotary Hydraulic
Max Pressure: 40 Kgf/cm² (569 PSI, 3.92 MPa)
Max Speed: 6,000 RPM
Piston Stroke: 40mm
Max Pull Force: 41.1 kN (4,200 Kgf)
Max Push Force: 44.1 kN (4,500 Kgf)
Approximate Dimensions: 32" x 9"
Approximate Height: 32"
Approximate Weight: 49 LBS
CONDITION: This Chuck Actuator Appears to be in Good Condition. Located in Cincinnati, OH
