FANUC A06B-0123-B075

FANUC A06B-0123-B075 | Servo Motors

Sell Your FANUC A06B-0123-B075
513-771-2111
sales@gaec.com
$375.00 USD
Sell Your FANUC A06B-0123-B075

Overview

Type:
Servo Motors
Manufacturer:
FANUC
Model:
A06B-0123-B075
Stock #:
Q11473
Status:
For Sale

Description

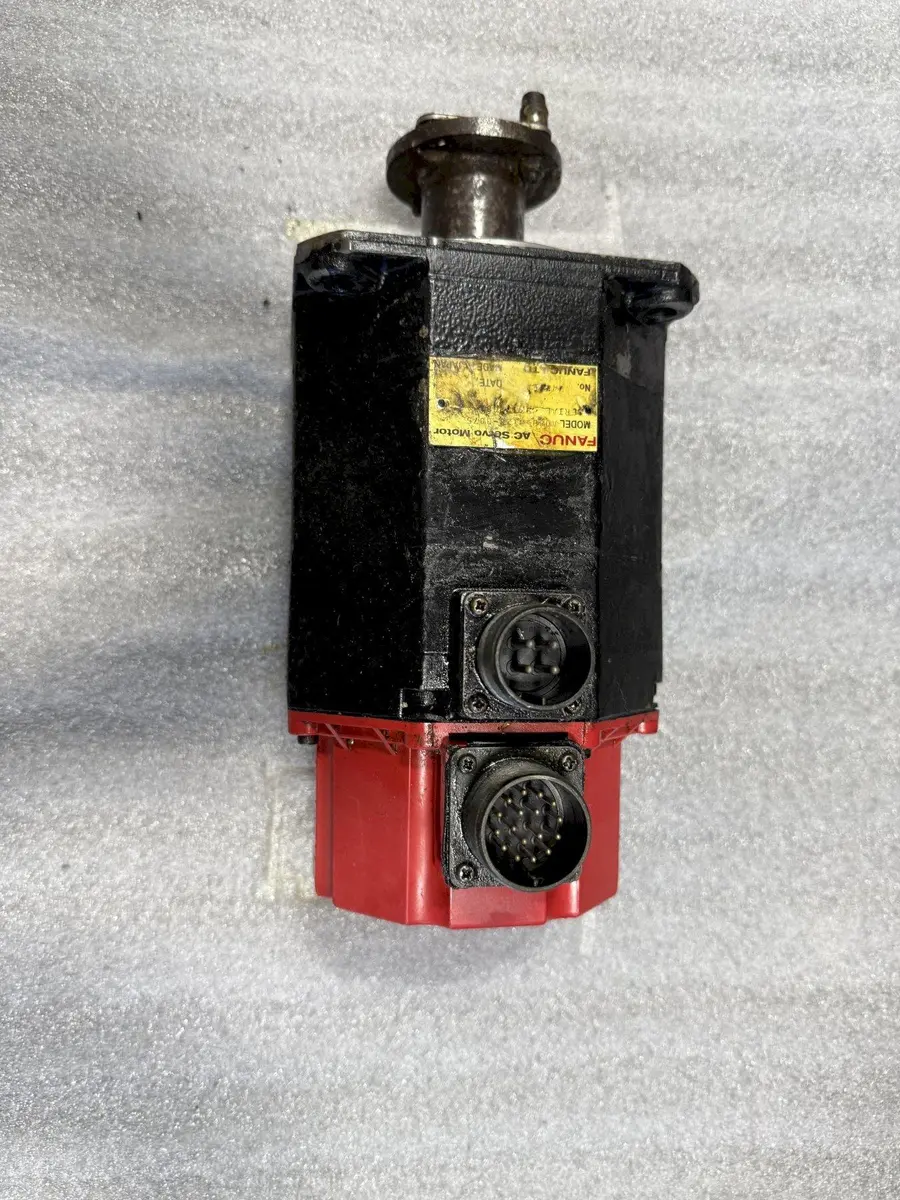

FANUC AC SERVO MOTOR, Type A06B-0123-B075, Model Alpha 3/3000, 127 V, 3000 RPM.

Current TypeACAC
Torque (Stall)2.2 lbf9.8 N
Amp (Stall)4.6 A4.6 A
Voltage127 V127 V
# Poles88
Max Speed3,000 RPM3,000 RPM
Ambient Temperature104°F40°C
Power RatingContinuousContinuous
Power Factor96%96%
Frequency200 Hz200 Hz
Motor Phase-3-3
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP 65IP 65
Manual NoB-65142B-65142
StandardsIEC60034-1IEC60034-1
Dimensions14" x 8"14" x 8"
Weight20 LBS20 LBS

Current Type: AC
Torque (Stall): 3 Nm
Amp (Stall): 4.6 A
Voltage: 127 V
# Poles: 8
Max Speed: 3,000 RPM
Ambient: 40° C
Power Rating: Continuous
Power Factor: 96%
Frequency: 200 Hz
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 65
Manual No: B-65142
Standards: IEC60034-1
Approximate Dimensions: 14" x 8"
Approximate Height: 8"
Approximate Weight: 20 LBS

CONDITION: This Servo Motor Appears to be in Very Good Condition. Located in Cincinnati, OH
