FANUC A06B-0371-B575

FANUC A06B-0371-B575 | Servo Motors

Sell Your FANUC A06B-0371-B575
513-771-2111
sales@gaec.com
$950.00 USD
Sell Your FANUC A06B-0371-B575

Overview

Type:
Servo Motors
Manufacturer:
FANUC
Model:
A06B-0371-B575
Stock #:
Q11478
Status:
For Sale

Description

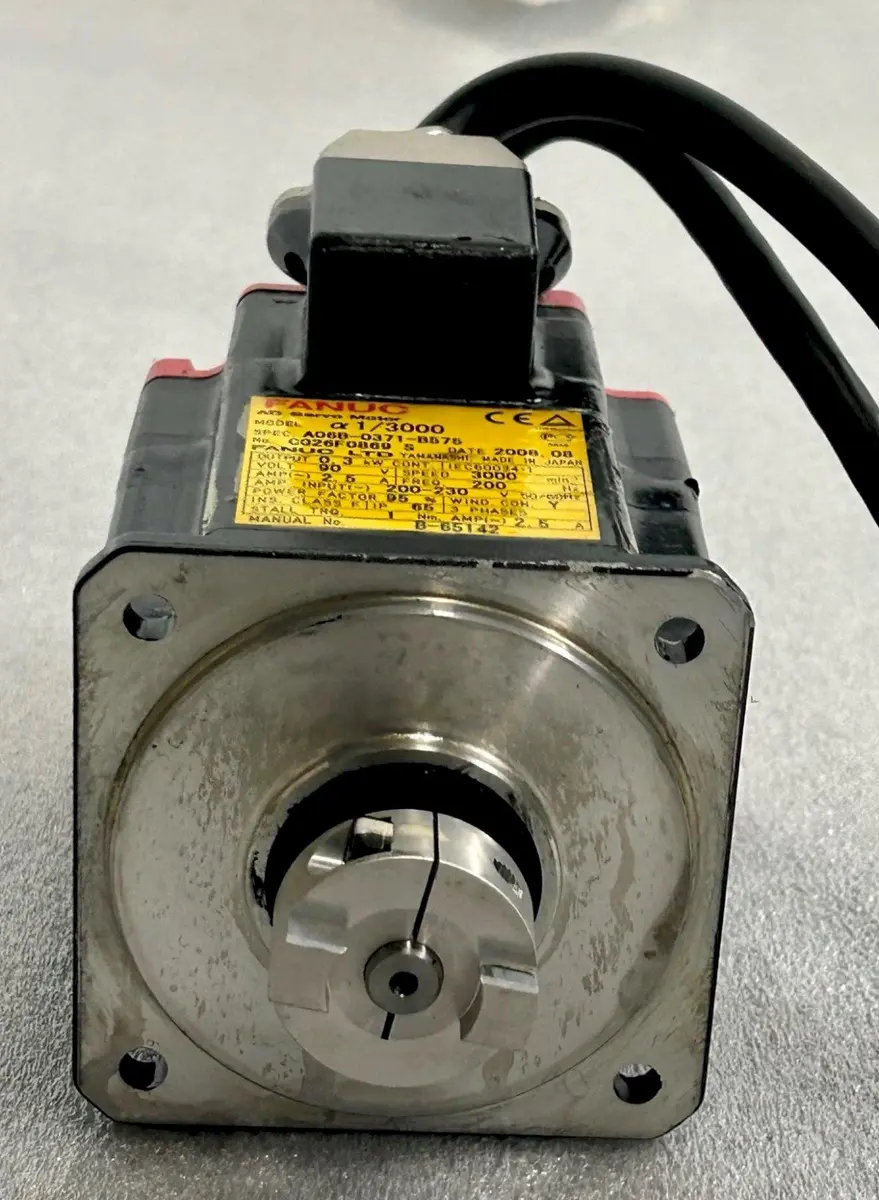

FANUC AC SERVO MOTOR, Type A06B-0371-B575, Model Alpha-1/3000, 90 V, 3000 RPM.

Current TypeACAC
Torque (Stall)0.7 lbf3.2 N
Amp (Stall)2.5 A2.5 A
Voltage90 V90 V
Max Speed3,000 RPM3,000 RPM
Power RatingContinuousContinuous
Power Factor95%95%
Frequency200 Hz200 Hz
Motor Phase-3-3
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP 65IP 65
Manual NoB-65142B-65142
StandardsIEC60034-1IEC60034-1
Dimensions11 x 7 x 811 x 7 x 8
Weight8 lbs8 lbs

Current Type: AC
Torque (Stall): 1 Nm
Amp (Stall): 2.5 A
Voltage: 90 V
Max Speed: 3,000 RPM
Power Rating: Continuous
Power Factor: 95%
Frequency: 200 Hz
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 65
Manual No: B-65142
Standards: IEC60034-1
Approximate Dimensions: 11" x 7"
Approximate Height: 8"
Approximate Weight: 8 LBS

CONDITION: This Servo Motor Appears to be in Excellent Condition !

Located in Cincinnati, OH
