FANUC A06B-0113-B075#0004

FANUC A06B-0113-B075#0004 | Servo Motors

Sell Your FANUC A06B-0113-B075#0004
513-771-2111
sales@gaec.com
$675.00 USD
Sell Your FANUC A06B-0113-B075#0004

Overview

Type:
Servo Motors
Manufacturer:
FANUC
Model:
A06B-0113-B075#0004
Stock #:
Q11479
Status:
For Sale

Description

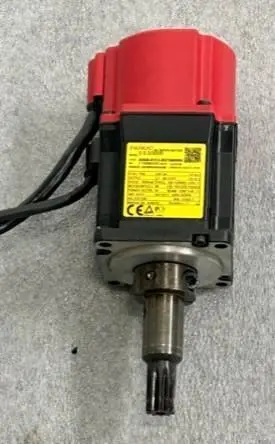

FANUC AC SERVO MOTOR, Type A06B-0113-B075#0004, Model Beta-0.5/3000, 3000 RPM.

Current TypeACAC
Torque (Stall)0.5 lbf2.1 N
Amp (Stall)2.8 A2.8 A
Voltage0 V0 V
# Poles88
Max Speed3,000 RPM3,000 RPM
Ambient Temperature104°F40°C
Power RatingContinuousContinuous
Power Factor93%93%
Frequency200 Hz200 Hz
Motor Phase33
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP 65IP 65
Manual NoB-65232B-65232
StandardsIEC60034-1IEC60034-1
Dimensions8" x 7" x 5"8" x 7" x 5"
Weight5 LBS5 LBS

Current Type: AC
Torque (Stall): 0.65 Nm
Amp (Stall): 2.8 A
Voltage: 200 - 230 V
# Poles: 8
Max Speed: 3,000 RPM
Ambient: 40° C
Power Rating: Continuous
Power Factor: 93%
Frequency: 200 Hz
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 65
Manual No: B-65232
Standards: IEC60034-1
Approximate Dimensions: 8" x 7"
Approximate Height: 5"
Approximate Weight: 5 LBS

CONDITION: This Servo Motor Appears to be in Excellent Condition !

Located in Cincinnati, OH
