FANUC A06B-0163-B175

FANUC A06B-0163-B175 | Servo Motors

Sell Your FANUC A06B-0163-B175
513-771-2111
sales@gaec.com
$575.00 USD
Sell Your FANUC A06B-0163-B175

Overview

Type:
Servo Motors
Manufacturer:
FANUC
Model:
A06B-0163-B175
Stock #:
Q11482
Status:
For Sale

Description

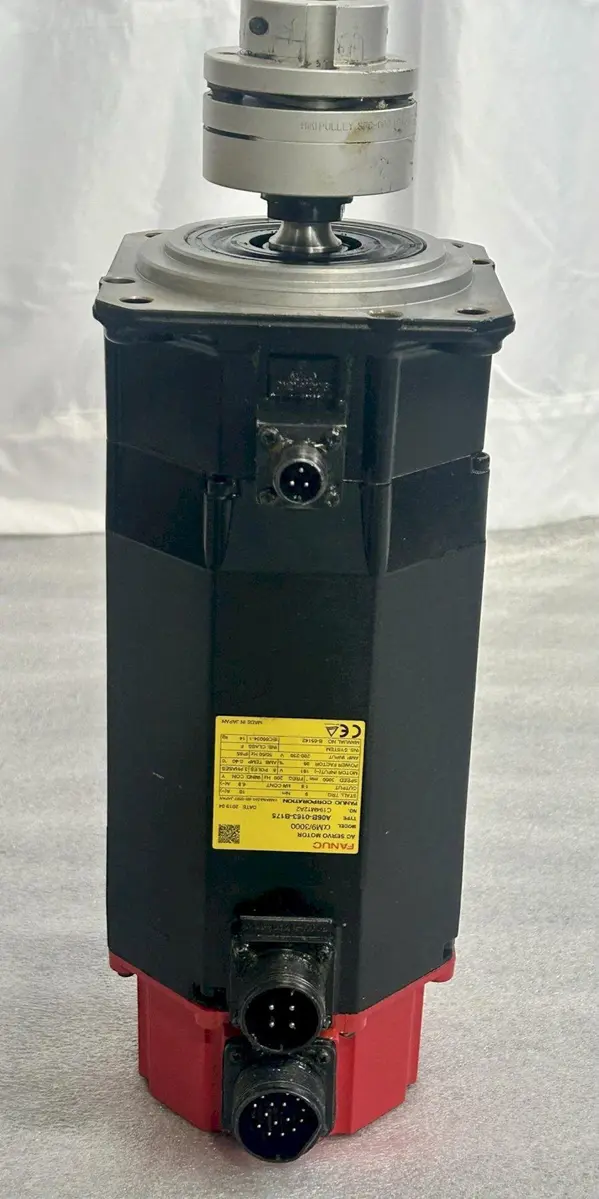

FANUC AC SERVO MOTOR, Type A06B-0163-B175, Model Alpha-M9/3000, 161 V, 3000 RPM.

Current TypeACAC
Torque (Stall)6.6 lbf29.5 N
Amp (Stall)10 A10 A
Voltage161 V161 V
# Poles88
Max Speed3,000 RPM3,000 RPM
Ambient Temperature104°F40°C
Power RatingContinuousContinuous
Power Factor99%99%
Efficiency9999
Frequency200 Hz200 Hz
Motor Phase-3-3
Power3.8 hp2.8 kW
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP 65IP 65
Manual NoB-65142B-65142
StandardsIEC60034-1IEC60034-1
Weight36 lbs36 lbs

Current Type: AC
Torque (Stall): 9 Nm
Amp (Stall): 10 A
Voltage: 161 V
# Poles: 8
Max Speed: 3,000 RPM
Ambient: 40° C
Power Rating: Continuous
Power Factor: 99%
Frequency: 200 Hz
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 65
Manual No: B-65142
Standards: IEC60034-1
Approximate Dimensions: 18" x 8"
Approximate Height: 10"
Approximate Weight: 36 LBS

CONDITION: This Motor Appears to be in Excellent Condition !

Located in Cincinnati, OH
