2018 FANUC A06B-0123-B175 A3/3000 | Servo Motors
$575.00 USD

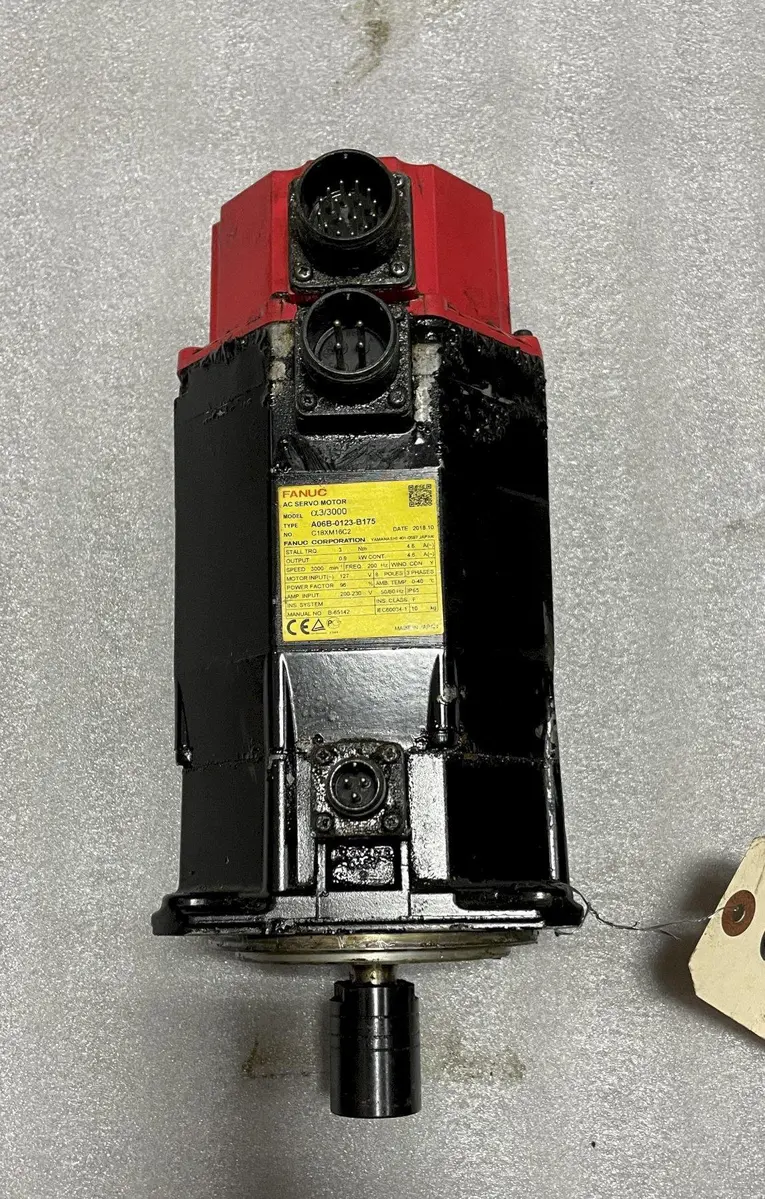

FANUC AC SERVO MOTOR, Type A06B-0123-B175, Model Alpha 3/3000, 4.6A, 127 V, 3000 RPM.
Tapered Shaft
Brake
Current Type: AC
Torque (Stall): 3 Nm
Amp (Stall): 4.6 A
Voltage: 127 V
Amperage: 4.6 A
Max Speed: 3,000 RPM
Output: 0.9 kW
Power Rating: Continuous
Power Factor: 96%
Frequency: 200 Hz
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 65
Encoder: A64
Manual No: B-65142
Standards: IEC60034-1
Approximate Dimensions: 16" x 9"
Approximate Height: 9"
Approximate Weight: 29 LBS
CONDITION: This Motor Appears to be in Excellent Condition ! Located in Cincinnati, OH
