2016 NACHI S-4519 4 | Hydraulic Power Units
$1,150.00 USD

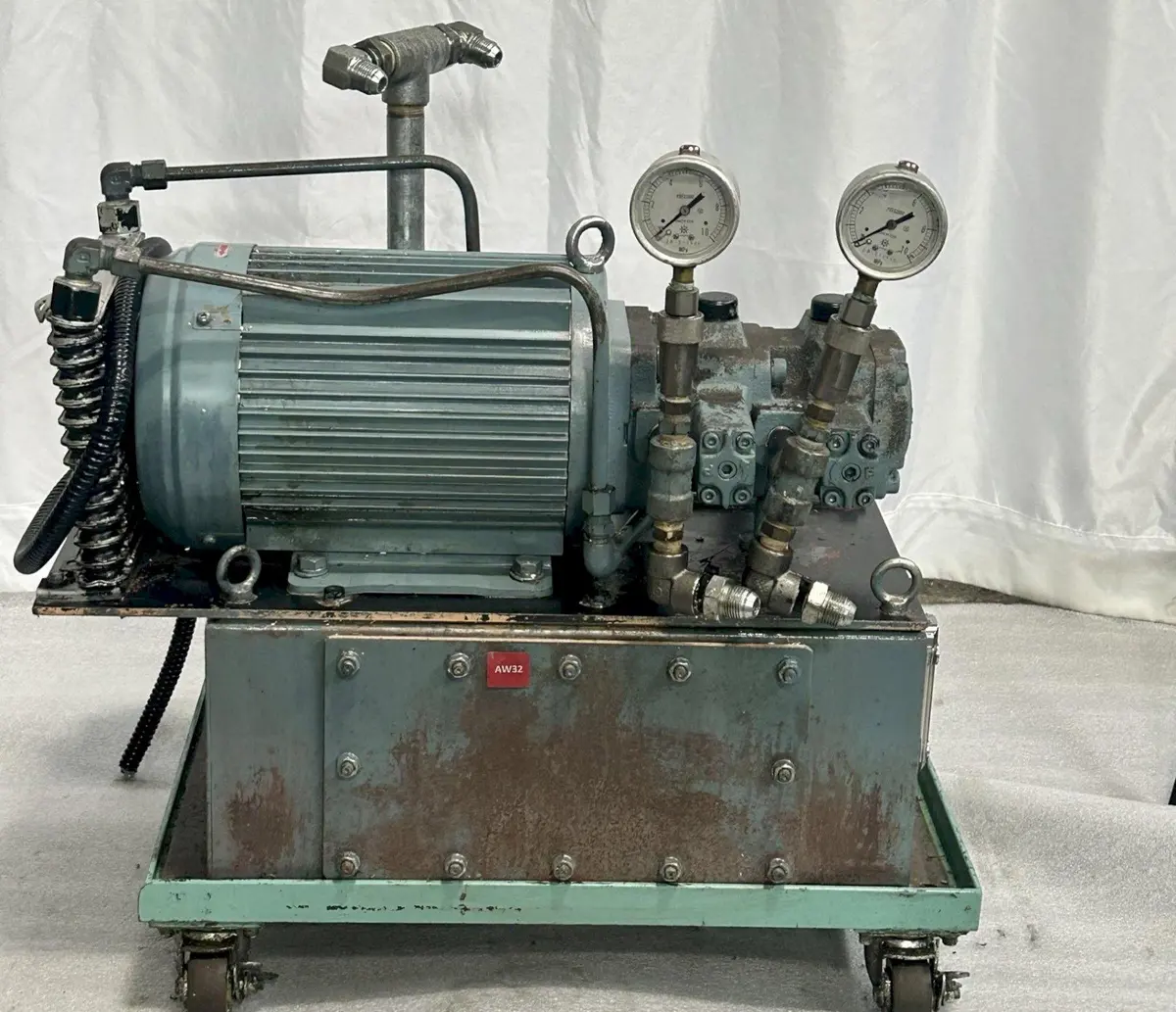

NACHI HYDRAULIC POWER UNIT, Model S-4519 4, 2.5 Kw, Nidec Induction Motor, Nachi Uni Pump Model UVD-11A-A2-A2-2.2-4-60, Variable Vane Pump Model VDR-11B-1A2-1A2-U-22, New 2016.
Nidec 3-Phase Induction Motor, Type FELQ-8PT, Model VAEA-1A4B22, 2.2 kW, 1760 RPM.
Nachi Uni Pump, Model UVD-11A-A2-A2-2.2-4-60.
Variable Vane Pump, Model VDR-11B-1A2-1A2-U-22.
Flow Rate (Liters per Minute): 30 L/min
Motor Horsepower: 2.2 Kw
Frequency: 50/60
Maximum Pressure: 14 MPa
Tank Capacity: 8 Gal
Pump Type: Multiple Pump Unit
Power Source: Electric Motor
Motor Voltage: 200-220 VAC
Cooling Method: Oil Cooler
Approximate Dimensions: 27" x 17"
Approximate Height: 26"
Approximate Weight: 195 LBS
CONDITION: This Hydraulic Power Unit Appears to be in Very Good Condition. F.O.B. Cincinnati, OH
