45 Ton Federal Model 45 O.B.I. Flywheel Press

45 Ton Federal Model 45 O.B.I. Flywheel Press

Sell Your Federal 45
513-771-2111
sales@gaec.com
Request Financing
Sell Your Federal 45

Overview

Type:
Presses, O.B.I.
Manufacturer:
Federal
Model:
45
Year:
1982
Stock #:
Q11529
Serial #:
45-552

Description

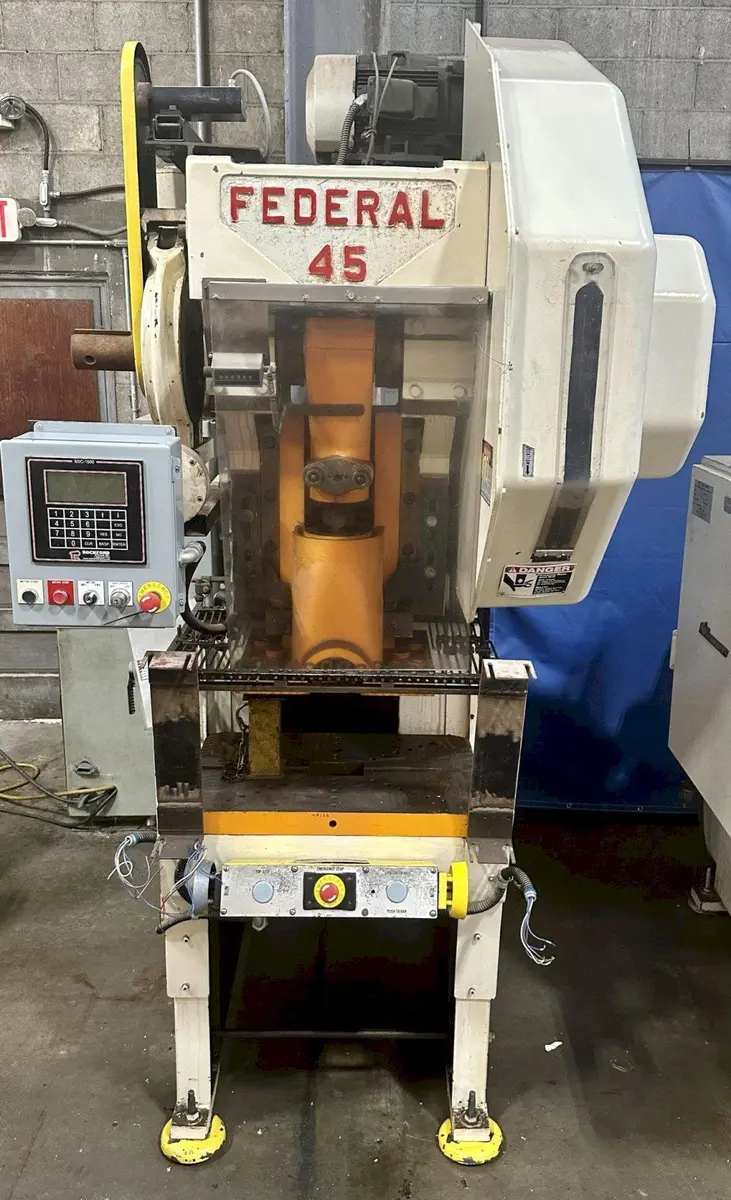

45 TON FEDERAL Model 45 OBI FLYWHEEL PRESS, 2011 retrofit Rockford SSC-1500 Control, 18" x 14" Ram, 28" x 18" Bolster/Bed, 3" Stroke, 11" Shut Height, 70-120 SPM, New 1982.

2011 Retrofit Rockford SSC-1500 PLC Control, Flywheel, Air Clutch, Dual Palm Safety Buttons.

ControlCNC (2011 Retrofit Rockford SSC-1500 PLC)CNC (2011 Retrofit Rockford SSC-1500 PLC)
Tonnage Capacity45 T40.823 t
Stroke Length3"76.2 mm
Shut Height to Bed, SDAU11"279.4 mm
Ram Adjustment2.5"63.5 mm
Ram Area (L-R)18"457.2 mm
Ram Area (F-B)14"355.6 mm
Bolster/Bed Area (L-R)28"711.2 mm
Bolster/Bed Area (F-B)18"457.2 mm
Strokes Per Minute70 - 120 strokes/min.120 strokes/min.
Type (BG, Double Action, FW)FlywheelFlywheel
Crank (Single/Double)SingleSingle
Air Clutch (Yes/No)YesYes
Motor Power5 hp3.7 kW
Electrics230/460/3/60230/460/3/60
Dimensions53" x 68" x 117"53" x 68" x 117"
Weight7,700 LBS7,700 LBS

Bolster/Bed Area (L-R x F-B): 28" x 18"
Bolster Plate: 2-1/4" Thick with 21" x 6" Hole
Throat Depth: 10"
Distance Between Uprights: 13"
Floor to Bed: 32"

CONDITION: This Machine Appears to be in Good Condition.

F.O.B. Cincinnati, OH
