BLISS 23 M | Presses, O.B.I.

Sell Your BLISS 23 M
513-771-2111
sales@gaec.com
Sell Your BLISS 23 M

Overview

Type:
Presses, O.B.I.
Manufacturer:
BLISS
Model:
23 M
Stock #:
Q11530
Status:
For Sale
Serial #:
8487TE

Description

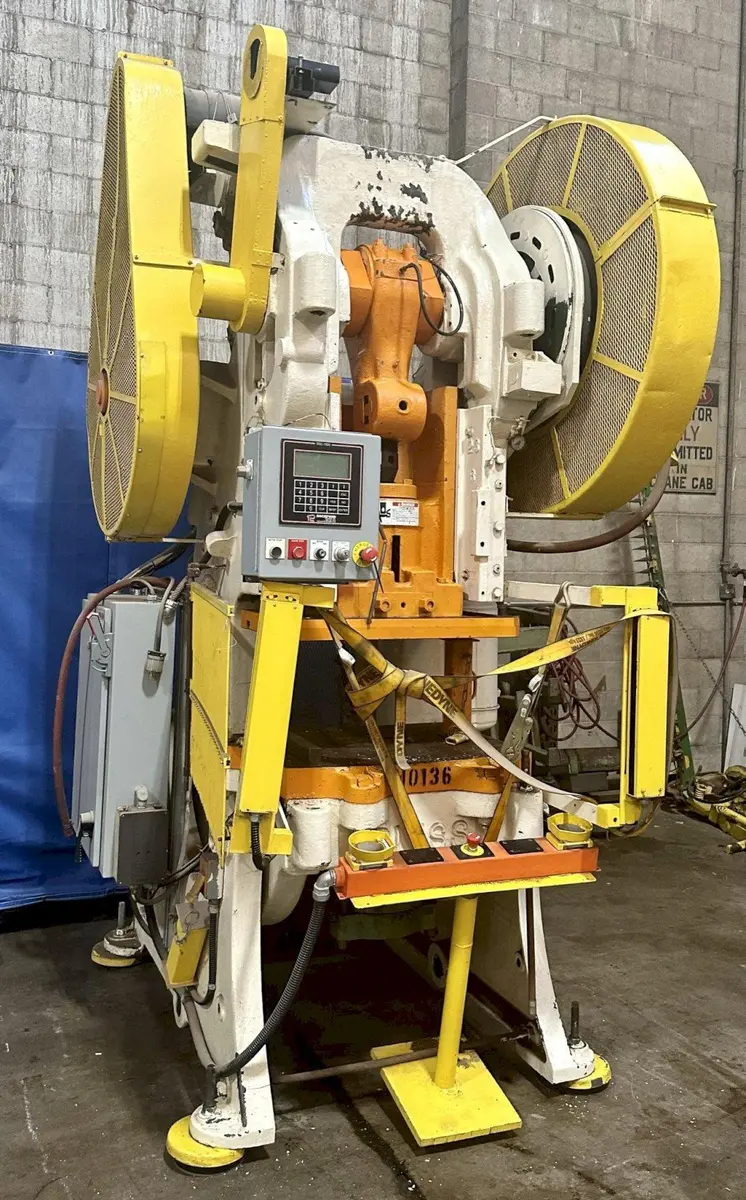

75 TON BLISS #23 SINGLE CRANK BACKGEARED PRESS, 16" x 10" Ram, 24" x 32" Bolster/Bed, 4" Stroke, 14" Shut Height, 45-90 SPM, New 1960

2011 Rockford PLC Control Retrofit, Backgeared ,Air Clutch and Brake, Dual Palm Buttons, Light Curtains.

ControlCNC (2011 Rockford PLC Control Retrofit)CNC (2011 Rockford PLC Control Retrofit)
Tonnage Capacity75 T68.039 t
Stroke Length4"101.6 mm
Shut Height to Bed, SDAU14.25"361.95 mm
Ram Adjustment3"76.2 mm
Ram Area (L-R)16"406.4 mm
Ram Area (F-B)10"254 mm
Bolster/Bed Area (L-R)24"609.6 mm
Bolster/Bed Area (F-B)32"812.8 mm
Strokes Per Minute45 - 90 strokes/min.90 strokes/min.
Type (BG, Double Action, FW)BackgearedBackgeared
Crank (Single/Double)SingleSingle
Air Clutch (Yes/No)YesYes
Motor Power5 hp3.7 kW
Electrics240/480/3/60240/480/3/60
Dimensions65 x 84 x 11265 x 84 x 112
Weight1530015300

Tonnage Capacity: 75 Ton
Stroke Length: 4"
Shut Height to Bed, SDAU: 14-1/4"
Ram Adjustment: 3"
Ram Area (L-R x F-B): 16" x 10"
Bolster/Bed Area (L-R x F-B): 24" x 32"
Bolster Plate: 3-1/2" H, T-Slotted
Distance Between Uprights: 14-3/4"
Floor to Bed: 35-1/4"
Strokes Per Minute: 45 - 90 SPM
Air Clutch: yes
Type: Backgeared
Crank: Single
Motor Horsepower: 5 HP
Electrics: 240/480/3/60
Approximate Machine Dimensions: 65" x 84"
Approximate Machine Height: 112"
Approximate Machine Weight: 15,300 LBS

CONDITION: This Machine Appears to be in Very Good Condition. F.O.B. Cincinnati, OH
