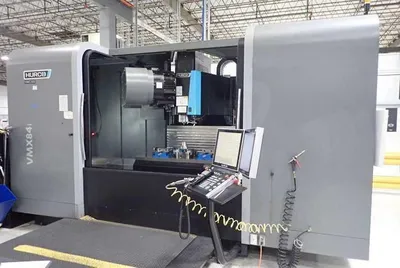

Hurco WinMax Dual Screen CNC, Hurco 10" H320 4th Axis CNC Rotary Table, Renishaw Part and Tool Probe, 40 Station Automatic Tool Changer, Metal Way Covers, Deluxe Chip Conveyor, Optional High Pressure Coolant System.
-- 2,138 Spindle Hours. Appears to be in Excellent Condition. Came from a Super Clean High-Tech shop that was Closed Down. New Replacement Cost 'As Equipped' is $ 290,000.
| CNC Control | Hurco WinMax Dual Screen CNC | Hurco WinMax Dual Screen CNC |
| # Axis | 4 | 4 |
| Table-L | 86" | 2,184.4 mm |
| Table-W | 34" | 863.6 mm |
| Max Table Load Capacity | 5,000 lb | 2,268 kg |
| X-Axis (Longitudinal Travel) | 84" | 2,133.6 mm |
| Y-Axis (Cross Travel) | 34" | 863.6 mm |
| Z-Axis (Vertical Travel) | 30" | 762 mm |
| Max Clearance Tabletop to Spindle Nose | 35.8" | 909.32 mm |
| Min Clearance Tabletop to Spindle Nose | 5.8" | 147.32 mm |
| Feed Rates (X, Y, & Z Axis) | 530 in/min. | 13.5 m/min. |
| X-Axis Rapid Traverse Rate | 709 in/min. | 18 m/min. |
| Y-Axis Rapid Traverse Rate | 709 in/min. | 18 m/min. |
| Z-Axis Rapid Traverse Rate | 530 in/min. | 13.5 m/min. |
| Spindle Power | 24 hp | 17.9 kW |
| Spindle Speed Range | 12,000 RPM | 12,000 RPM |
| Spindle Taper | 40 Taper Big Plus | 40 Taper Big Plus |
| Coolant Through Spindle | Yes | Yes |
| Automatic Tool Changer Capacity (ATC) | 40 | 40 |
| Automatic Tool Changer Style | Side-Mount | Side-Mount |
| Max Tool Length | 11.8" | 299.72 mm |
| Max Tool Diameter | 2.95" | 74.93 mm |
| Max Tool Weight | 15.4 lb | 7 kg |
| Machine Hours | 2138 | 2138 |
| Electrics | 460/3/60 | 460/3/60 |
| Dimensions | 298" x 175" x 128" | 298" x 175" x 128" |
| Weight | 40,000 LBS | 40,000 LBS |
CONDITION: This Machine Appears to be in Excellent Condition ! Only 2,138 Spindle Hours
F.O.B. Cincinnati, OH
