Makino EDNC85S CNC Sinker EDM

Makino EDNC85S CNC Sinker EDM

Sell Your Makino EDNC85S
513-771-2111
sales@gaec.com
Request Financing
Sell Your Makino EDNC85S

Overview

Type:
EDM Sinkers
Manufacturer:
Makino
Model:
EDNC85S
Year:
2015
Stock #:
Q11603
Serial #:
E090010

Description

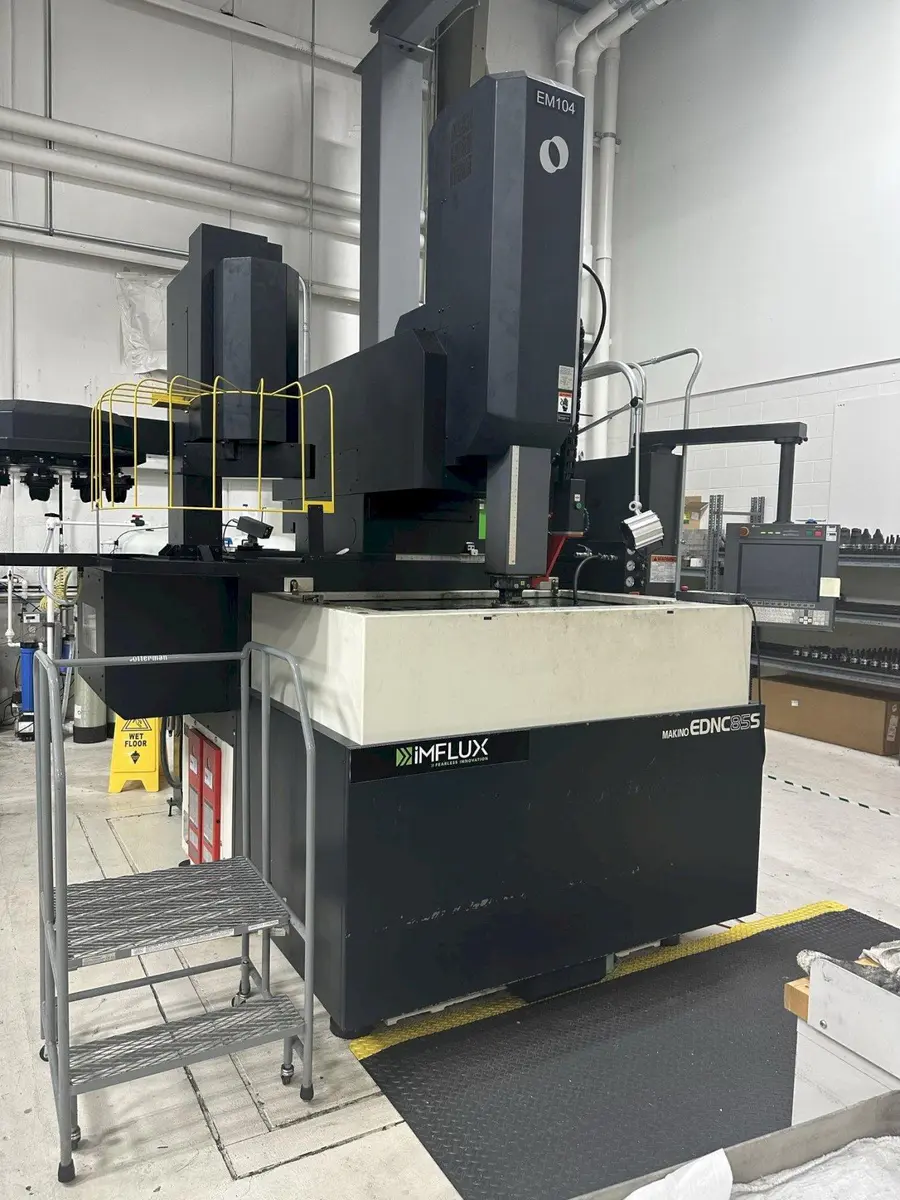

MAKINO EDNC85S SINKER EDM, Makino MGH6 CNC Control, 43.3" x 27.6" Table, X=31.5", Y=19.7", Z=15.7", Full C-Axis 10 RPM, 3000 kg Max Workpiece Weight, 55.1" x 35.4" x 19.7" Tank Size, 16 Station Tool Changer, New 2015.

Makino MGH6 CNC Control, Drop Tank Design, C-Axis/10 RPM, 16 Station Head Changer, (2) Fluid Chillers, Transformer, Extra Filters Included, Brand New Dielectric Fluid Pump.

ControlCNC (Makino CNC Control)CNC (Makino CNC Control)
ControlMakino MGH6 CNCMakino MGH6 CNC
Internal Work Tank Width55.1"1,399.5 mm
Internal Work Tank Depth35.4"899.16 mm
Internal Work Tank Height19.7"500.38 mm
Table-L43.3"1,099.8 mm
Table-W27.6"701.04 mm
Max Workpiece Weight6,613.9 lb3,000 kg
Dielectric Fluid Capacity317 gal1,200 L
Dielectric Tank Capacity185 gal700.3 L
X-Axis (Longitudinal Travel)31.5"800.1 mm
Y-Axis (Cross Travel)19.7"500.38 mm
Z-Axis (Ram Travel)15.7"398.78 mm
C-Axis (Head Rotation)360° Full Contouring360°
Max Electrode Weight661.4 lb300 kg
Dielectric Fluid Level Adjustment Range (From Top of Table)17.7"449.58 mm
Dimensions120" x 144" x 144"120" x 144" x 144"
Weight15,000 LBS15,000 LBS

CONDITION: This Machine Appears to be in Excellent Condition.

F.O.B. Cincinnati, OH
