2017 Fanuc ROBODRILL Α-D21MIB5 | Machining Centers, Vertical

Sell Your Fanuc ROBODRILL Α-D21MIB5
513-771-2111
sales@gaec.com
Request Financing
Sell Your Fanuc ROBODRILL Α-D21MIB5

Overview

Type:
Machining Centers, Vertical
Manufacturer:
Fanuc
Model:
ROBODRILL Α-D21MIB5
Year:
2017
Stock #:
Q11652
Serial #:
P174ZG528

Description

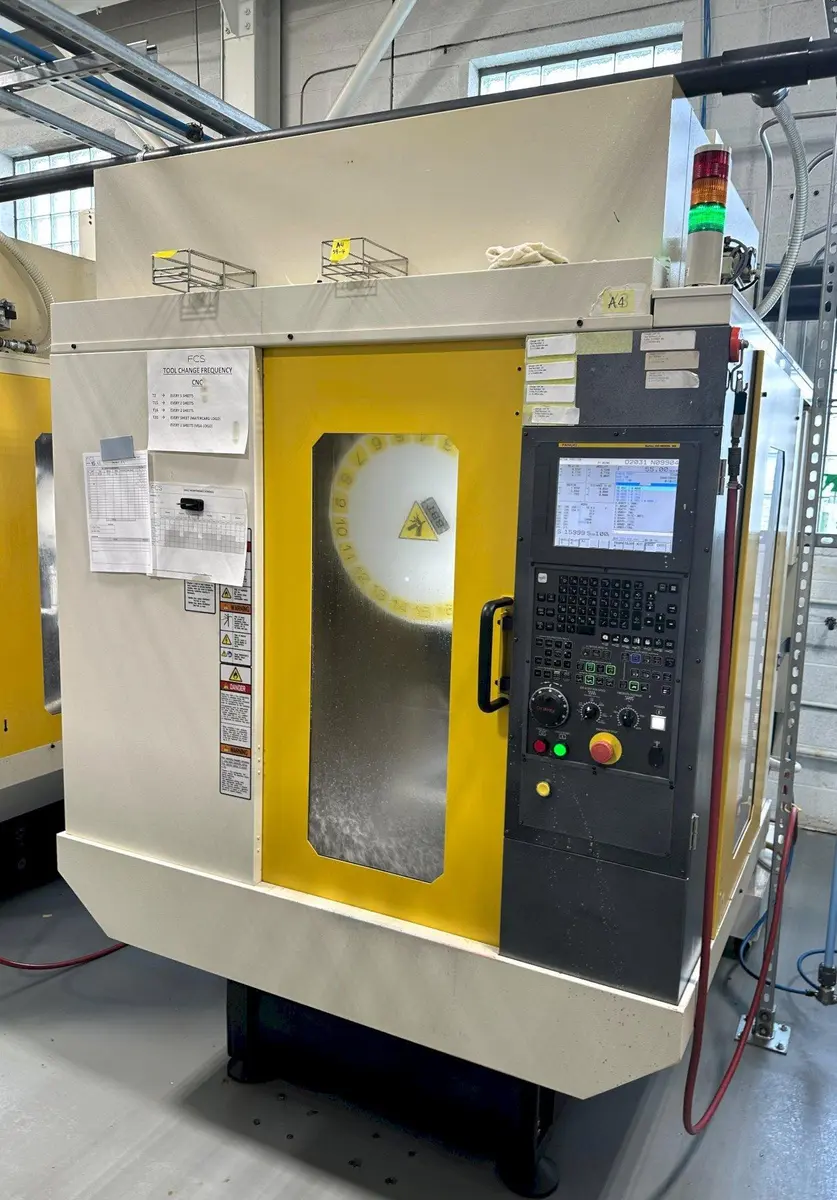

FANUC ROBODRILL a-D21MiB5 CNC VERTICAL MACHINING CENTER, Fanuc Series 31i-B5 CNC Control, 25.6" x 15.75" Table, X=19.7", Y=15.7", Z=12.9", 24000 Max Spindle RPM, 21 ATC, Coolant System, New 2017.

Fanuc Series 31i-B5 CNC Control, 24000 RPM Spindle, Renishaw OMP40-2 Part Probe, Mist Collector, Coolant Tank.

CNC ControlFanuc Series 31i-B5Fanuc Series 31i-B5
# Axis33
Table-L25.6"650.24 mm
Table-W15.75"400.05 mm
Max Table Load Capacity661 lb299.8 kg
X-Axis (Longitudinal Travel)19.7"500.38 mm
Y-Axis (Cross Travel)15.7"398.78 mm
Z-Axis (Vertical Travel)12.9"327.66 mm
Max Clearance Tabletop to Spindle Nose22.8"579.12 mm
Min Clearance Tabletop to Spindle Nose9.84"249.94 mm
Feed Rates (X, Y, & Z Axis)1,181 in/min.30 m/min.
Rapid Traverse Rate (X, Y, & Z Axis)2,125 in/min.54 m/min.
Max Spindle Speed24,000 RPM24,000 RPM
Spindle TaperBT30BT30
Automatic Tool Changer Capacity (ATC)2121
Tool Change Time1.6 sec.1.6 sec.
Electrics220/3/60220/3/60
Dimensions63" x 63" x 90"63" x 63" x 90"
Weight4,850 LBS4,850 LBS

CONDITION: This Machine Appears to be in Excellent Condition !

F.O.B. Cincinnati, OH
