Overview

Type:
Valves
Stock #:
Q11567
Status:
For Sale

Description

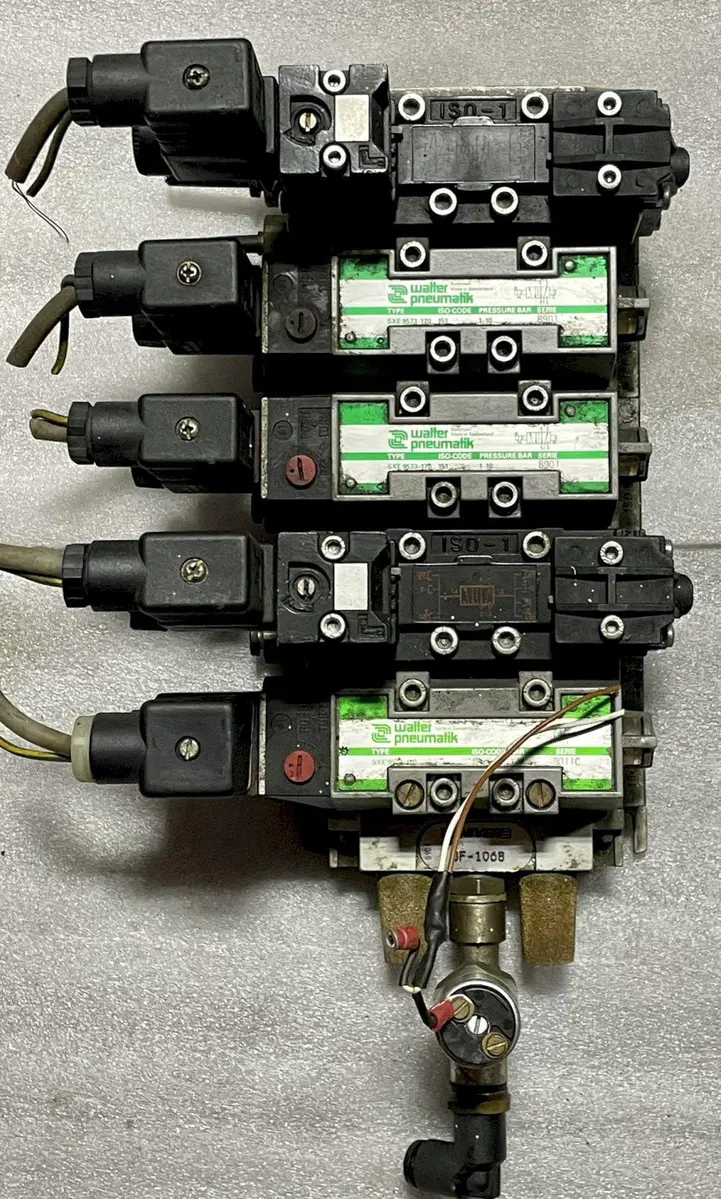

PNEUMATIC SOLENOID VALVE BLOCK, contains (3) Walter Pneumatik SXE9573-170 Pneumatic Solenoid Valves with Walter Pneumatik TM1502 Solenoid Coils, and (2) Univer BE-3700 Pneumatic Valves with a Single Electrical Impulse.

(2) UNIVER BE-3700 Pneumatic Valves with Single electrical impulse
  - Nominal Bore: 8 mm
  - Nominal Flow: 1480 L/min
  - Max Pressure: 10 Bar
  - Commutation System: Spool
  - Connection: ISO 5599/1 interface

(3) WALTER PNEUMATIK Pneumatic Solenoid Valves
  - Type: SXE9573-170
  - ISO Code: 151
  - Coil Voltage: 24 VDC NPT
  - Max Pressure: 10 Bar
  - Solenoid Valve Coil P/N TM1502, 60 VAC 50/60 Hz 4/3VA  24VDC 2W  100%ED

Code151151
Valve TypePneumatic Solenoid ValvesPneumatic Solenoid Valves
Type of ActuationSingle Electrical ImpulseSingle Electrical Impulse
Actuator TypeSolenoidSolenoid
Solenoid Voltage24 V24 V
Solenoid Frequency60 Hz60 Hz
Max Pressure P, A, & B145 PSI10 bar
Operating Pressure145 PSI10 bar
Oriface88
Voltage60 V60 V
Power Consumption2 W2 W
Dimensions15 x 10 x 1015 x 10 x 10
Weight1818

Approximate Dimensions Overall: 15" x 10"
Approximate Height Overall: 10"
Approximate Weight Overall: 18 LBS

CONDITION: This Unit Appears to be in Excellent Condition. F.O.B. Cincinnati, OH
