50 Ton Aida Gap Frame Press, Model NC1-45

50 Ton Aida Gap Frame Press, Model NC1-45

Sell Your Aida NC1-45
513-771-2111
sales@gaec.com
Request Financing
Sell Your Aida NC1-45

Overview

Type:
Presses, O.B.I.
Manufacturer:
Aida
Model:
NC1-45
Year:
1997
Stock #:
Q11676
Serial #:
10204-7364

Description

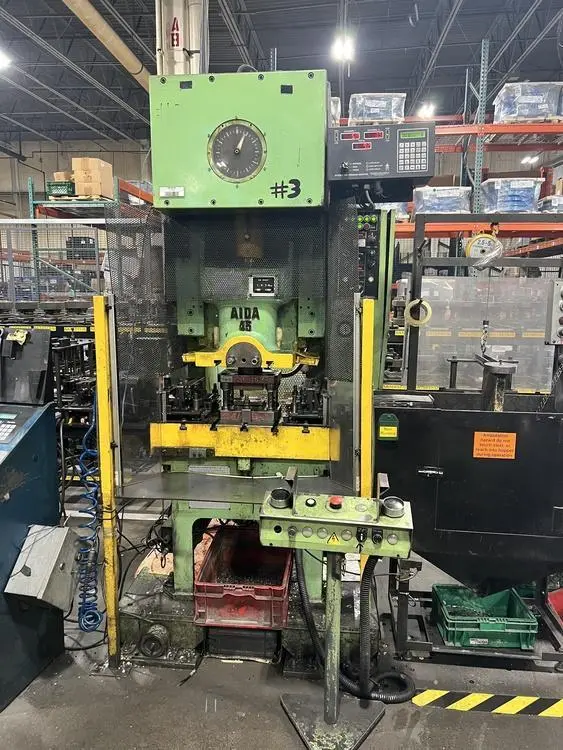

50 TON AIDA GAP FRAME PRESS, Model NC1-45, Single Crank, 1.96" Stroke, 32"x 25" Bed, 85-220 SPM, New 1997.

LINK System 1100 Tonnage Monitor, Dual Palm Buttons, Hydraulic Overload, Inch / Single / Continuous Modes.

Tonnage Capacity50 T45.359 t
Blanking Capacity40 T36.287 t
Stroke Length1.96"49.784 mm
Shut Height to Bed, SDAU8.66"219.96 mm
Ram Adjustment2.36"59.944 mm
Ram Area (L-R)16.14"409.96 mm
Ram Area (F-B)13.38"339.85 mm
Bolster/Bed Area (L-R)31.88"809.75 mm
Bolster/Bed Area (F-B)14.17"359.92 mm
Strokes Per Minute85 - 220 strokes/min.220 strokes/min.
Crank (Single/Double)SingleSingle
Electrics200/3/60200/3/60

CONDITION: This Press Appears to be in Good Condition.

F.O.B. Midwestern Location
