Equipment
Fabrication Equipment
Presses, O.B.I.
38 Ton Aida Gap Frame Press, Model NC1-350

38 Ton Aida Gap Frame Press, Model NC1-350

Sell Your Aida NC1-350
513-771-2111
sales@gaec.com
Request Financing
Sell Your Aida NC1-350

Overview

Type:
Presses, O.B.I.
Manufacturer:
Aida
Model:
NC1-350
Year:
2010
Stock #:
Q11678
Serial #:
10403-0490

Description

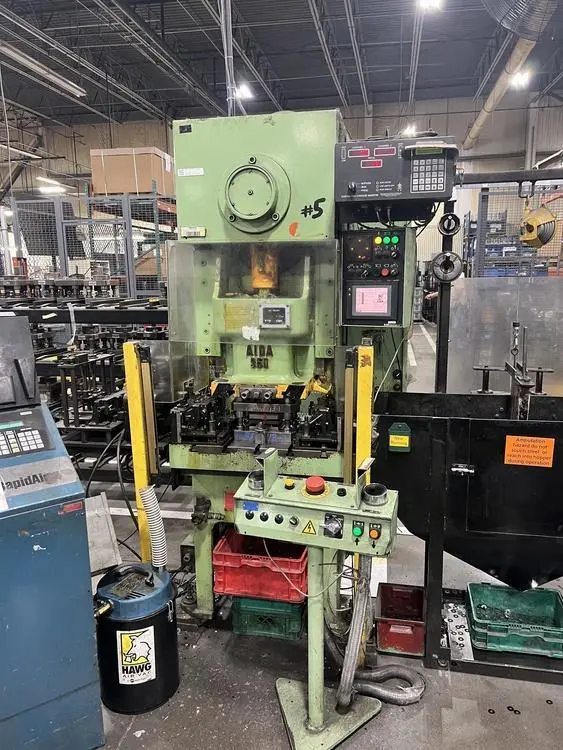

38 TON AIDA GAP FRAME PRESS, Model NC1-350, Single Crank, 1.96" Stroke, AIDA Press Control, Bed Area 28.74" x 13.18", 90-150 SPM, New 2010.

AIDA Press Control, LINK System 1100 Tonnage Monitor, Dual Palm Buttons, Inch / Single / Continuous Modes, Light Curtains.

ControlCNC (AIDA Press Control)CNC (AIDA Press Control)
Tonnage Capacity38 T34.473 t
Blanking Capacity30 T27.216 t
Stroke Length1.96"49.784 mm
Shut Height to Bed, SDAU8.26"209.8 mm
Ram Adjustment1.96"49.784 mm
Ram Area (L-R)14.96"379.98 mm
Ram Area (F-B)11.81"299.97 mm
Bolster/Bed Area (L-R)28.74"730 mm
Bolster/Bed Area (F-B)13.18"334.77 mm
Strokes Per Minute90 - 150 strokes/min.150 strokes/min.
Crank (Single/Double)SingleSingle
Electrics200/3/60200/3/60

CONDITION: This Press Appears to be in Good Condition.

F.O.B. Midwestern Location
