38 Ton Aida Gap Frame Press, Model NC1-350(1)E

38 Ton Aida Gap Frame Press, Model NC1-350(1)E

Sell Your Aida NC1-350(1)E
513-771-2111
sales@gaec.com
Request Financing
Sell Your Aida NC1-350(1)E

Overview

Type:
Presses, O.B.I.
Manufacturer:
Aida
Model:
NC1-350(1)E
Year:
2012
Stock #:
Q11679
Serial #:
10403-0510

Description

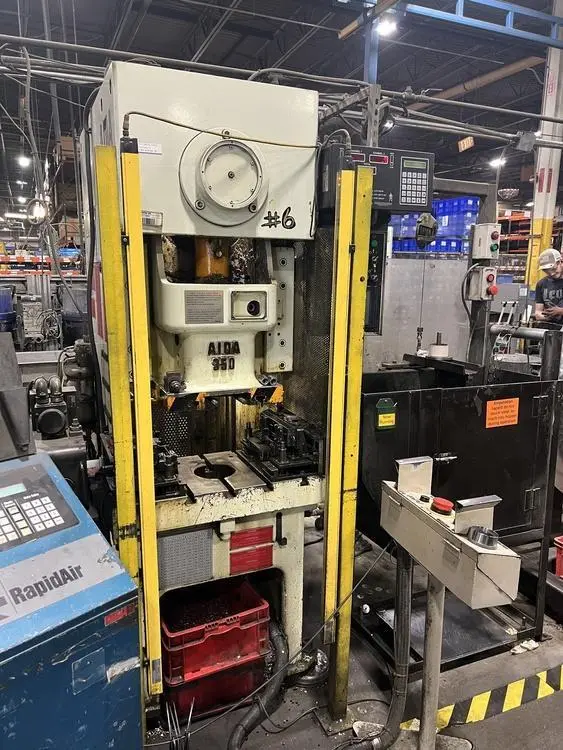

38 TON AIDA GAP FRAME PRESS, Model NC1-350(1)E, Single Crank, 1.9" Stroke, AIDA Press Control, Bed Area 28.7" x 13.1", 90-150 SPM, New 2012.

AIDA Press Control, LINK System 1100 Tonnage Monitor, Dual Palm Button Stand, Inch / Single / Continuous Modes, Hydraulic Overload.

ControlCNC (AIDA Press Control)CNC (AIDA Press Control)
Tonnage Capacity38 T34.473 t
Blanking Capacity30 T27.216 t
Stroke Length1.9"48.26 mm
Shut Height to Bed, SDAU8.2"208.28 mm
Ram Adjustment1.9"48.26 mm
Ram Area (L-R)14.9"378.46 mm
Ram Area (F-B)11.8"299.72 mm
Bolster/Bed Area (L-R)28.7"728.98 mm
Bolster/Bed Area (F-B)13.1"332.74 mm
Strokes Per Minute90 - 150 strokes/min.150 strokes/min.
Crank (Single/Double)SingleSingle
Motor Power5 hp3.7 kW
Electrics200/3/60200/3/60

CONDITION: This Press Appears to be in Excellent Condition !

F.O.B. Midwestern Location
