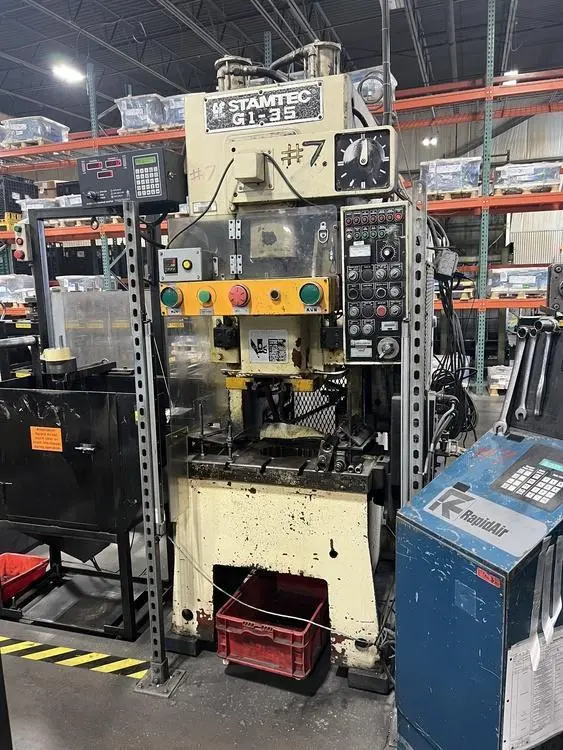

35 Ton Stamtec Gap Frame Press, Model G1-35

35 Ton Stamtec Gap Frame Press, Model G1-35

Sell Your Stamtec G1-35
513-771-2111
sales@gaec.com
Request Financing
Sell Your Stamtec G1-35

Overview

Type:
Presses, O.B.I.
Manufacturer:
Stamtec
Model:
G1-35
Year:
1998
Stock #:
Q11680
Serial #:
9730-S70654

Description

35 TON STAMTEC GAP FRAME PRESS, Model G1-35, Single Crank, 2.76" Stroke, Bed Area 31.5" x 15.75", Stamtec Press Control, New 1998.

Stamtec Press Control, LINK System 1100 Tonnage Monitor, Dual Palm Buttons, Inch / Single / Continuous Modes, Hydraulic Overload.

ControlCNC (Stamtec Press Control)CNC (Stamtec Press Control)
Tonnage Capacity35 T31.752 t
Stroke Length2.76"70.104 mm
Shut Height to Bed, SDAU8.66"219.96 mm
Ram Adjustment2.17"55.118 mm
Ram Area (L-R)14.17"359.92 mm
Ram Area (F-B)9.84"249.94 mm
Bolster/Bed Area (L-R)31.5"800.1 mm
Bolster/Bed Area (F-B)15.75"400.05 mm
Strokes Per Minute40 - 120 strokes/min.120 strokes/min.
Crank (Single/Double)SingleSingle
Motor Power5 hp3.7 kW
Electrics230/460/3/60230/460/3/60
Dimensions50" x 64" x 112"50" x 64" x 112"
Weight7,500 LBS7,500 LBS

CONDITION: This Press Appears to be in Excellent Condition !

F.O.B. Midwestern Location
