2022 DAYTON 24C181A | Motors, A.C.
$258.00 USD
DAYTON 24C181A AC MOTOR, Belt Drive Fan & Blower Motor, 3/4 HP, 115/208-230 VAC, Single Phase, 1725 RPM, 9.8/5.2-5.0 Amps, 56H Frame, ODP, Cradle Base Mount.
AC Motor Type: Capacitor-Start
Shaft Diameter: 5/8"
Motor Horsepower: 3/4 HP
Actual Rated Input Voltage: 115/208-230V AC
Full Load Amps: 9.8/5.2-5.0 A
Base Speed: 1,725 RPM
Frame: 56H
AC Frequency Rating: 60 Hz
Motor Phase: Single Phase
Service Factor: 1.25
NEMA KVA Code: K
Insulation Class: B (Max 266°F)
Ambient and Time Rating: 40° C AMB-CONT
Enclosure Type: ODP (Open Drip Proof)
Current Type: AC
Mounting Type: Cradle Base
Special Motor Construction: Belt Drive Fan & Blower
Approximate Dimensions: 18" x 15"
Approximate Height: 16"
Approximate Weight: 40 LBS

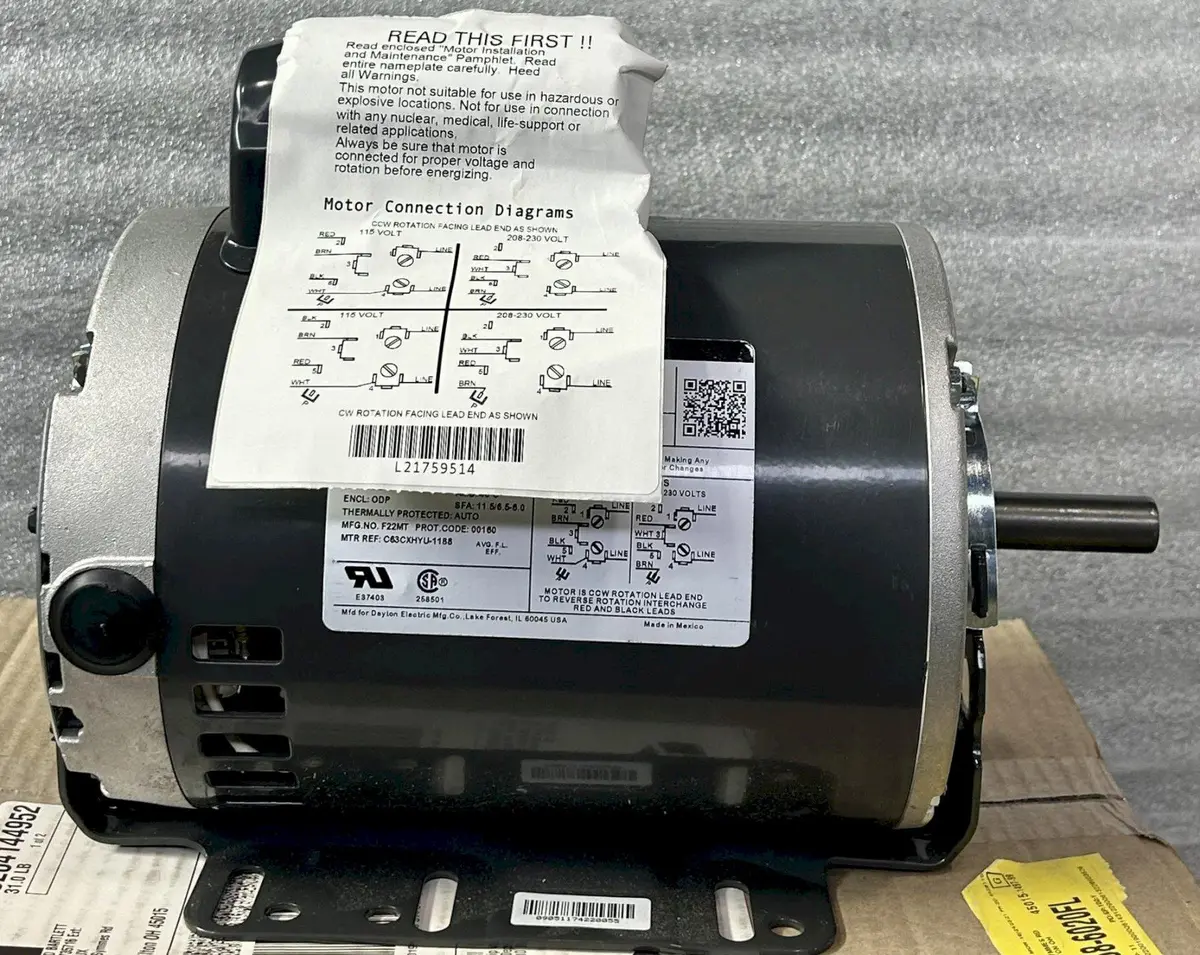

CONDITION: This Motor Appears to be in Excellent Condition. Located in Cincinnati, OH
