MITSUBISHI HA100C-S

MITSUBISHI HA100C-S | Servo Motors

Sell Your MITSUBISHI HA100C-S
513-771-2111
sales@gaec.com
$775.00 USD
Sell Your MITSUBISHI HA100C-S

Overview

Type:
Servo Motors
Manufacturer:
MITSUBISHI
Model:
HA100C-S
Stock #:
Q11751
Status:
For Sale
Serial #:
M85127005 168

Description

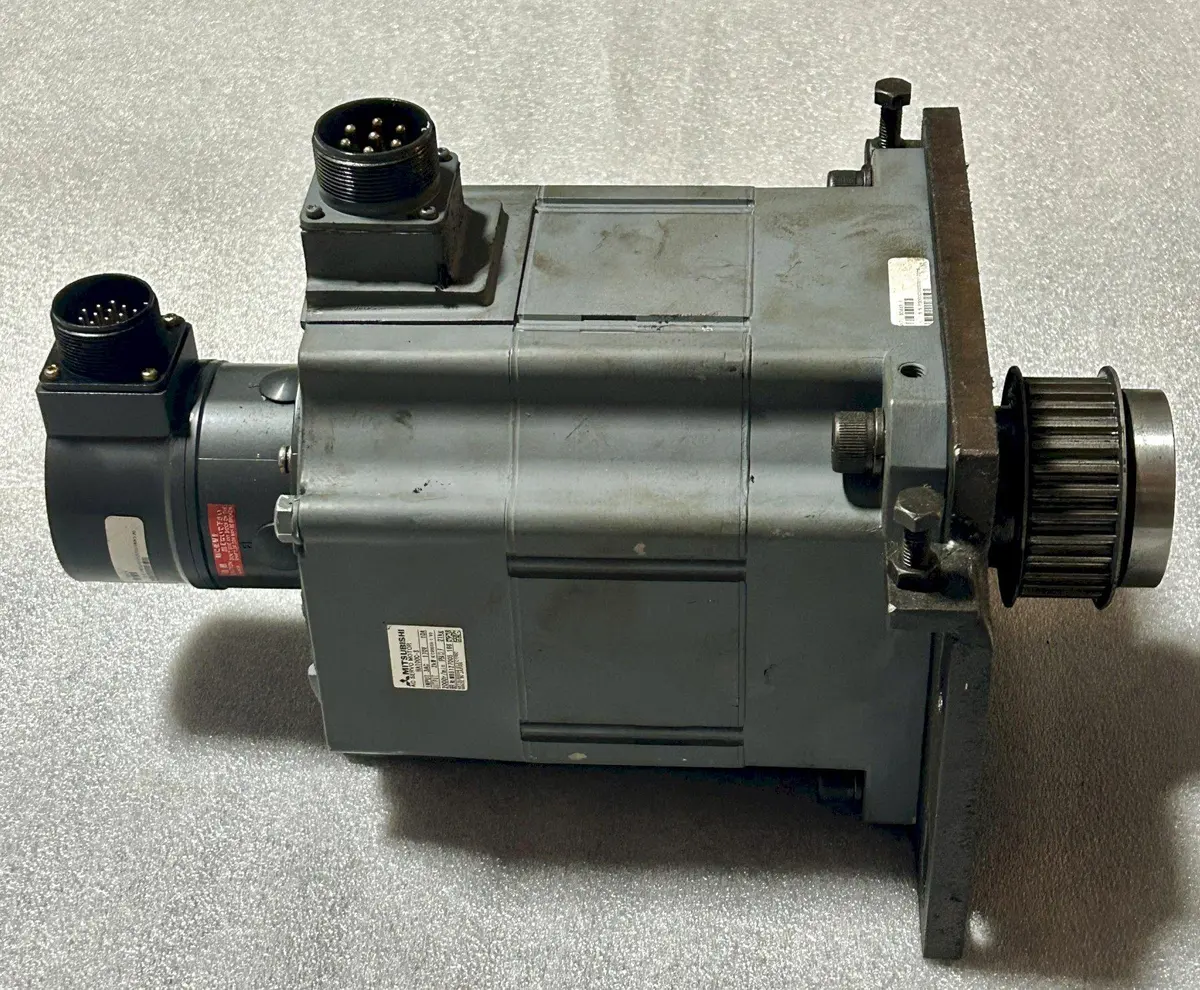

MITSUBISHI Model HA100C-S AC SERVO MOTOR, 170 V, 2000 RPM.

Permanent Magnet, Non-Ventilated

Current TypeACAC
Torque (Stall)31 lbf137.7 N
Amp (Stall)10 A10 A
Voltage170170
Max Speed2,000 RPM2,000 RPM
Power RatingContinuousContinuous
Frequency66.766.7
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP 54IP 54
Manual NoZ653193Z653193
StandardsIEC34-1IEC34-1
Dimensions17" x 12"17" x 12"
Weight65 LBS65 LBS

Discontinued by Manufacturer?: yes
Current Type: AC
Torque (Stall): 42 Nm
Amp (Stall): 10 A
Voltage: 170 V
Max Speed: 2,000 RPM
Power Rating: Continuous
Frequency: 66.7 Hz
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 54
Manual No: Z653193
Standards: IEC34-1
Approximate Dimensions: 17" x 12"
Approximate Height: 11"
Approximate Weight: 65 LBS

CONDITION: This Servo Motor Appears to be in Excellent Condition. F.O.B. Cincinnati, OH
