AUTO STRONG SC-12 | Chucks

Sell Your AUTO STRONG SC-12
513-771-2111
sales@gaec.com
$950.00 USD
Sell Your AUTO STRONG SC-12

Overview

Type:
Chucks
Manufacturer:
AUTO STRONG
Model:
SC-12
Stock #:
Q11765
Status:
For Sale

Description

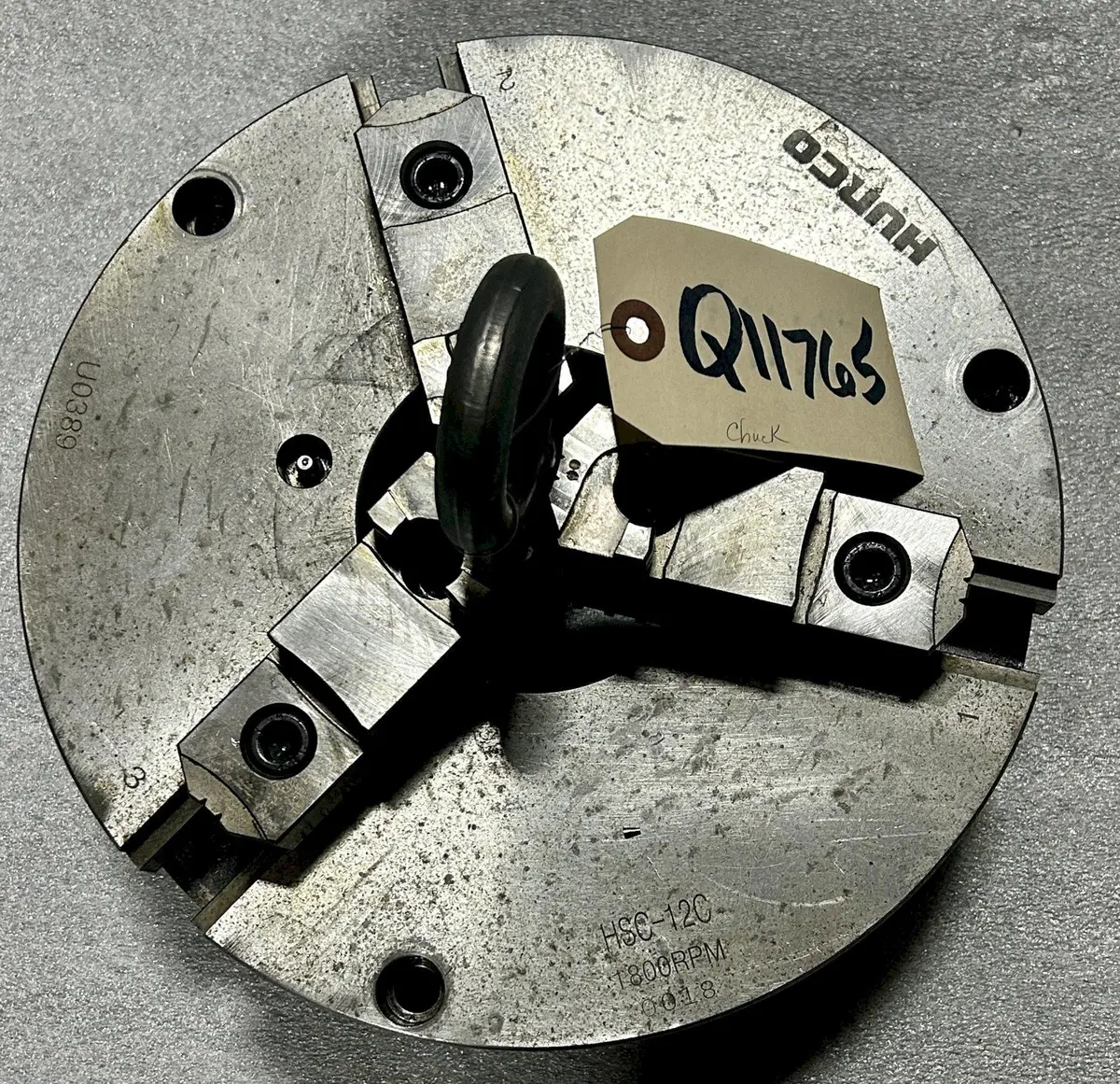

12" AUTO STRONG HSC-12 3-JAW SCROLL CHUCK, Plain Back, Solid Jaws, 1800 RPM Max Speed, 4200 kgf Gripping Force.

TypeSelf-centeringSelf-centering
# Jaws33
Type of ActuationManualManual
Body Diameter12"304.8 mm
Body Height5"127 mm
Through Hole Diameter4.75"120.65 mm
Max Speed1,800 RPM1,800 RPM
Max Grip Force9,237.2 lbf41.1 kN
Min Grip0.394"10.008 mm
Max Grip11.811"300 mm
Dimensions14 x 1414 x 14
Weight90 LBS90 LBS

Type: Self-centering
# Jaws: 3
Type of Actuation: Manual
Body Diameter: 12"
Through Hole Diameter: 4-3/4"
Max Speed: 1,800 RPM
Max Grip Force: 4,200 kgf
Gripping Range: Ø10mm~Ø300mm OD / Ø86mm~Ø290mm ID
Approximate Dimensions: 14" x 14"
Approximate Height: 5"
Approximate Weight: 90 LBS

CONDITION: This Chuck Appears to be in Very Good Condition. F.O.B. Cincinnati, OH
